The shaft is made of A992 steel with the allowable shear stress of 𝜏allow= 75 𝑀𝑃𝑎. If gear B supplies 15 kW of power, while gears A, C and D withdraw 6 kW, 4 kW and 5 kW, respectively. Determine the required minimum diameter 𝒅 of the shaft to the nearest millimeter. Also, find the corresponding angle of twist of gear A relative to gear D. The shaft is rotating at 600 rpm

The shaft is made of A992 steel with the allowable shear stress of
𝜏allow= 75 𝑀𝑃𝑎. If gear B supplies 15 kW of power, while gears
A, C and D withdraw 6 kW, 4 kW and 5 kW, respectively.

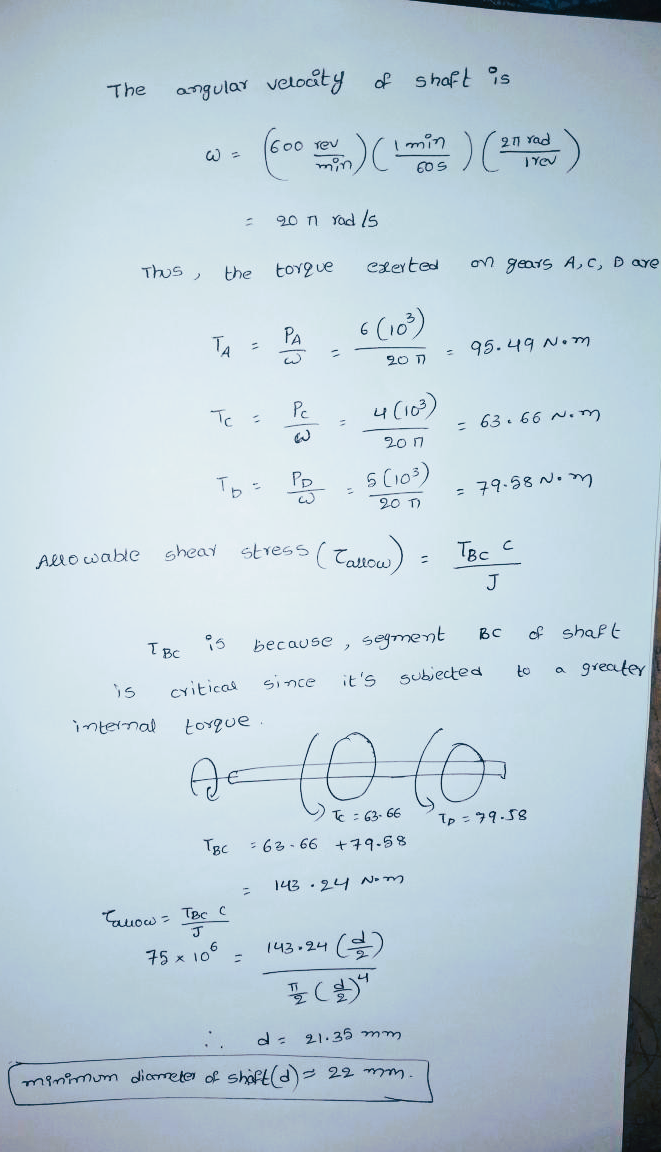

Determine the required minimum diameter 𝒅 of the shaft to the

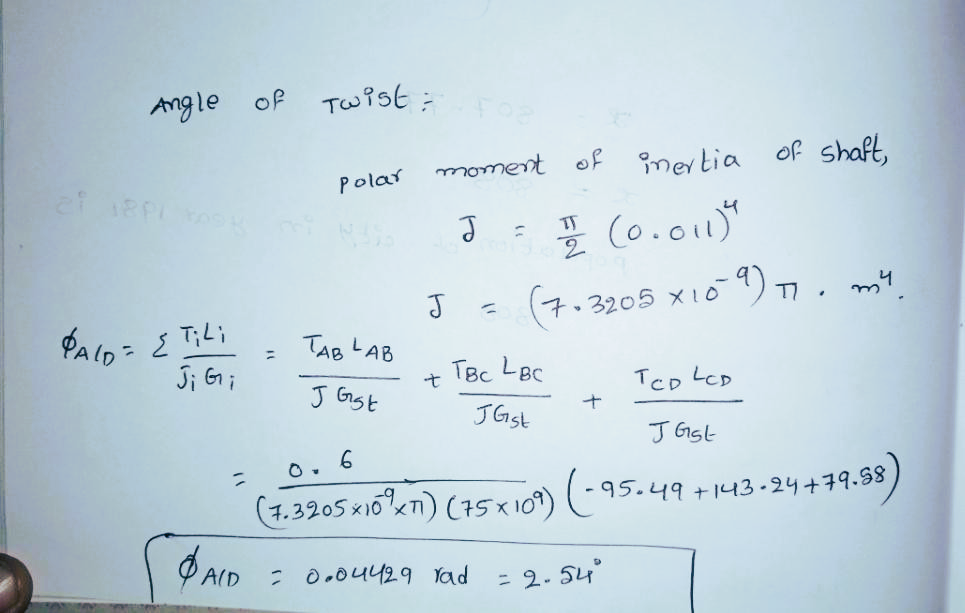

nearest millimeter. Also, find the corresponding angle of twist of
gear A relative to gear D. The shaft is rotating at 600 rpm

solved 0
Lukman 2025-02-07T12:33:31+05:00 1 Answer 19 views Beginner
0
MathJax Example

Answer ( 1 )

  1. Mechanical Engineering Expert
    0
    2025-02-07T16:11:42+05:00
    Report Reply

    Please briefly explain why you feel this answer should be reported.

    Report
    Cancel

    Best answer
