The paint-spraying robot is programmed to paint a production line of curved surfaces A (seen on edge). The length of the telescoping arm is controlled according to b = 0.3 sin (πt/2), where b is in meters and t is in seconds. Simultaneously, the arm is programmed to rotate according to 0 = π/4 + (π/8) sin (πt/2) radians. Calculate the magnitude v of the velocity of the nozzle N and the magnitude a of the acceleration of N for 1 = 1 s and for 1 = 2 s.

Report
Poll

Please briefly explain why you feel this question should be reported.

Report
Cancel
The paint-spraying robot is programmed to paint a production line of curved surfaces A (seen on edge). The length of the telescoping arm is controlled according to b = 0.3 sin (πt/2), where b is in meters and t is in seconds. Simultaneously, the arm is programmed to rotate according to 0 = π/4 + (π/8) sin (πt/2) radians. Calculate the magnitude v of the velocity of the nozzle N and the magnitude a of the acceleration of N for 1 = 1 s and for 1 = 2 s.

The paint-spraying robot is programmed to paint a production line of curved surfaces A (seen on edge). The length of the telescoping arm is controlled according to b = 0.3 sin (πt/2), where b is in meters and t is in seconds. Simultaneously, the arm is programmed to rotate according to 0 = π/4 + (π/8) sin (πt/2) radians. Calculate the magnitude v of the velocity of the nozzle N and the magnitude a of the acceleration of N for 1 = 1 s and for 1 = 2 s.

in progress 0
KEV 2025-02-07T07:25:52+05:00 1 Answer 15 views Beginner
0
MathJax Example

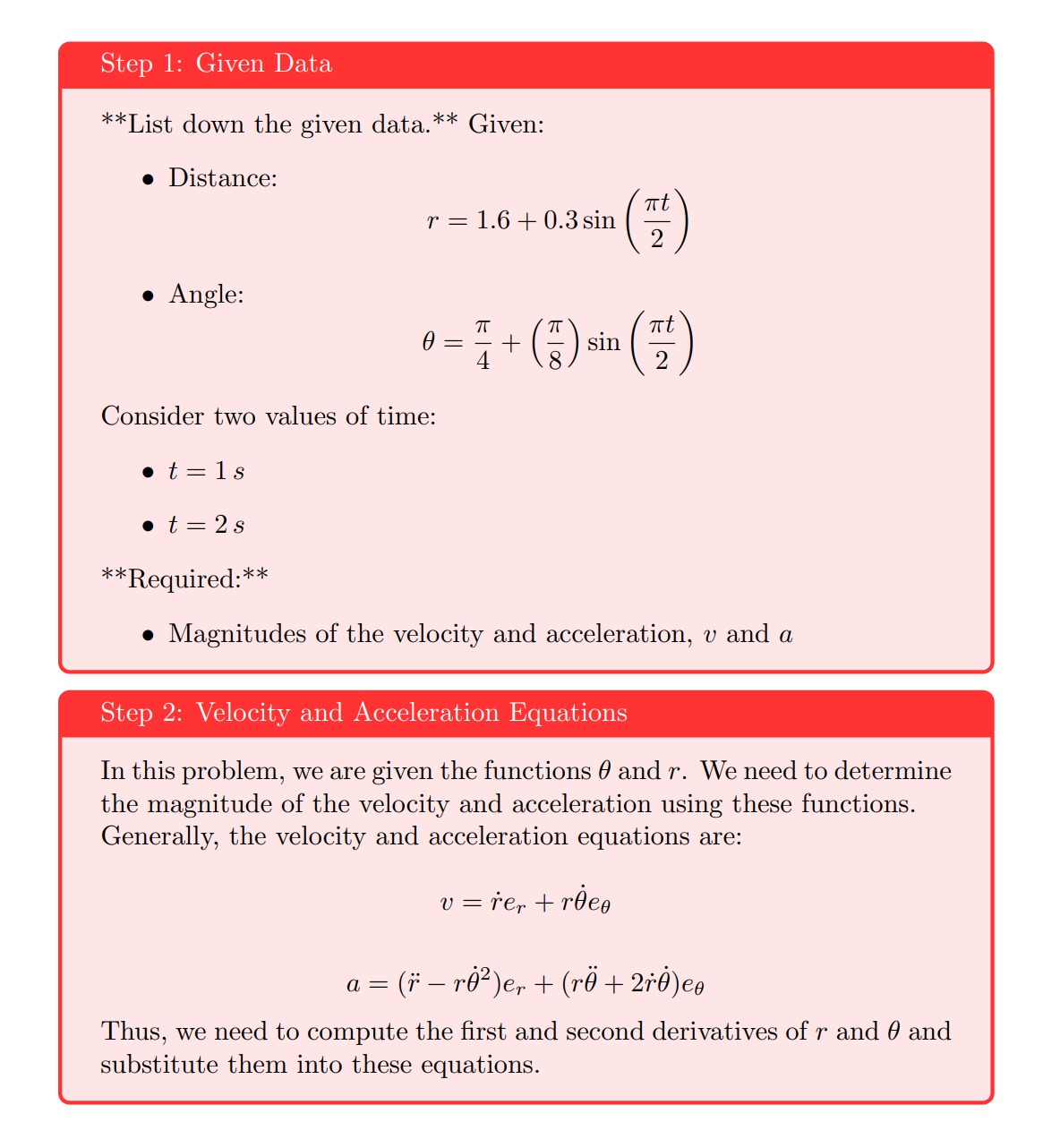

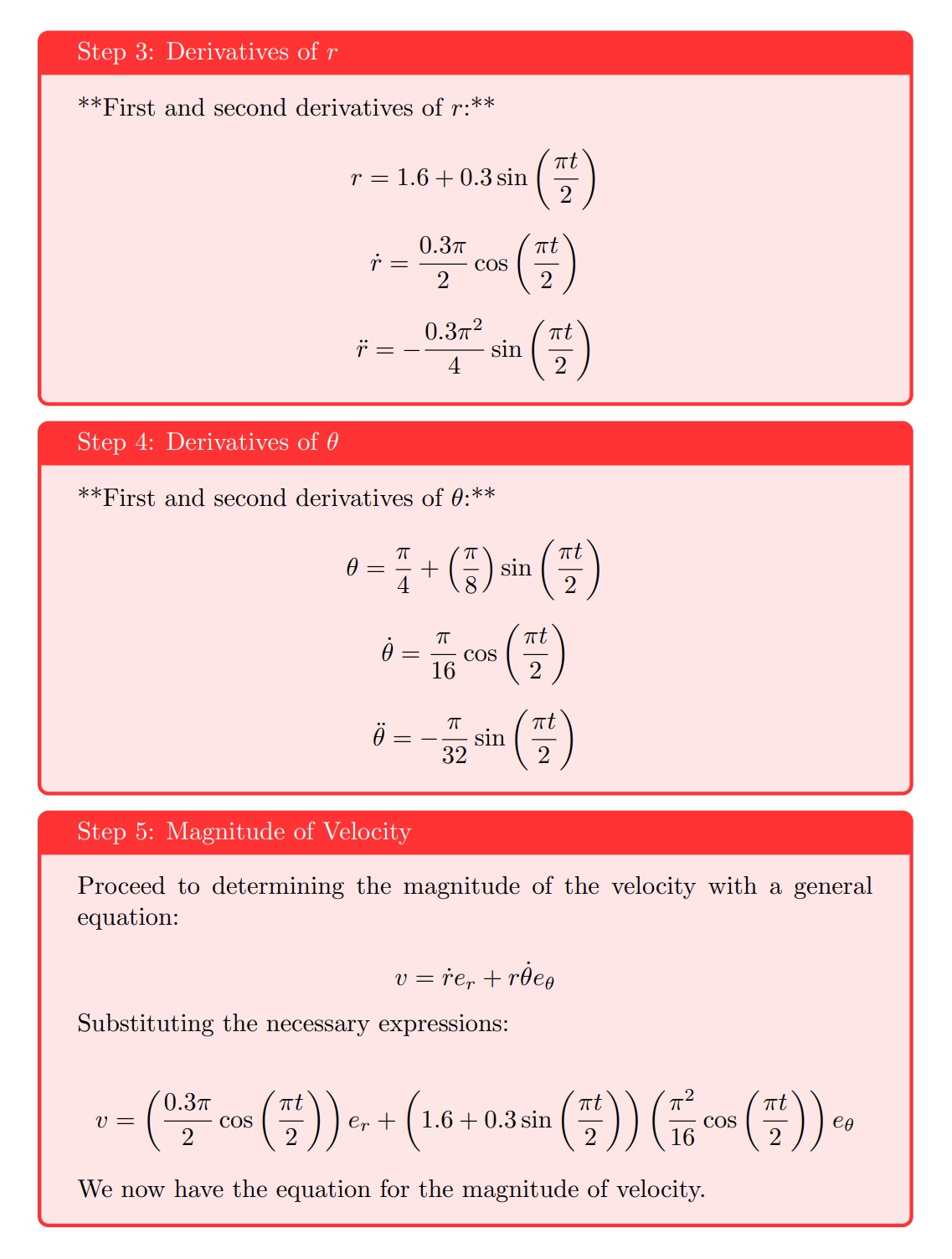

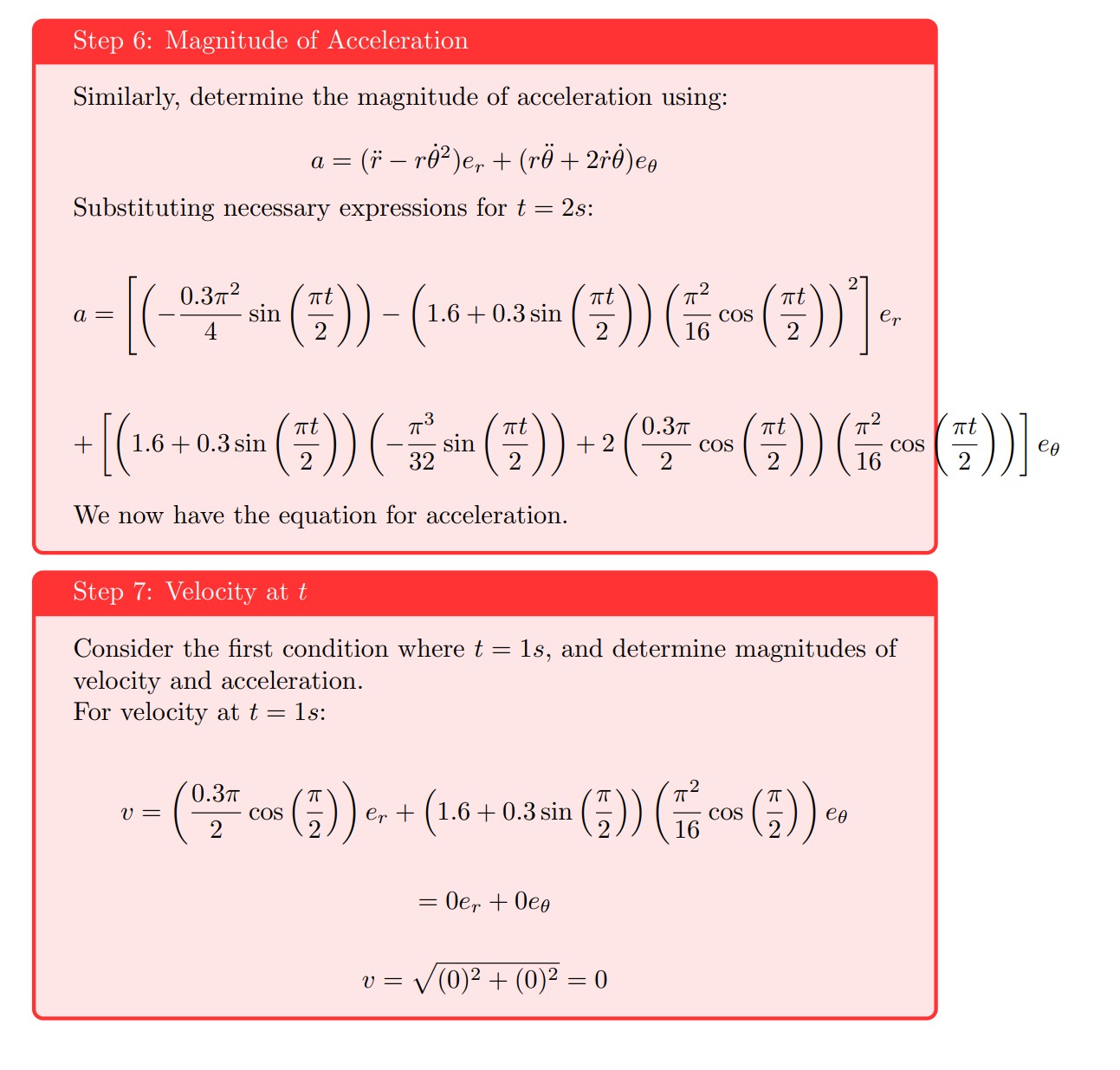

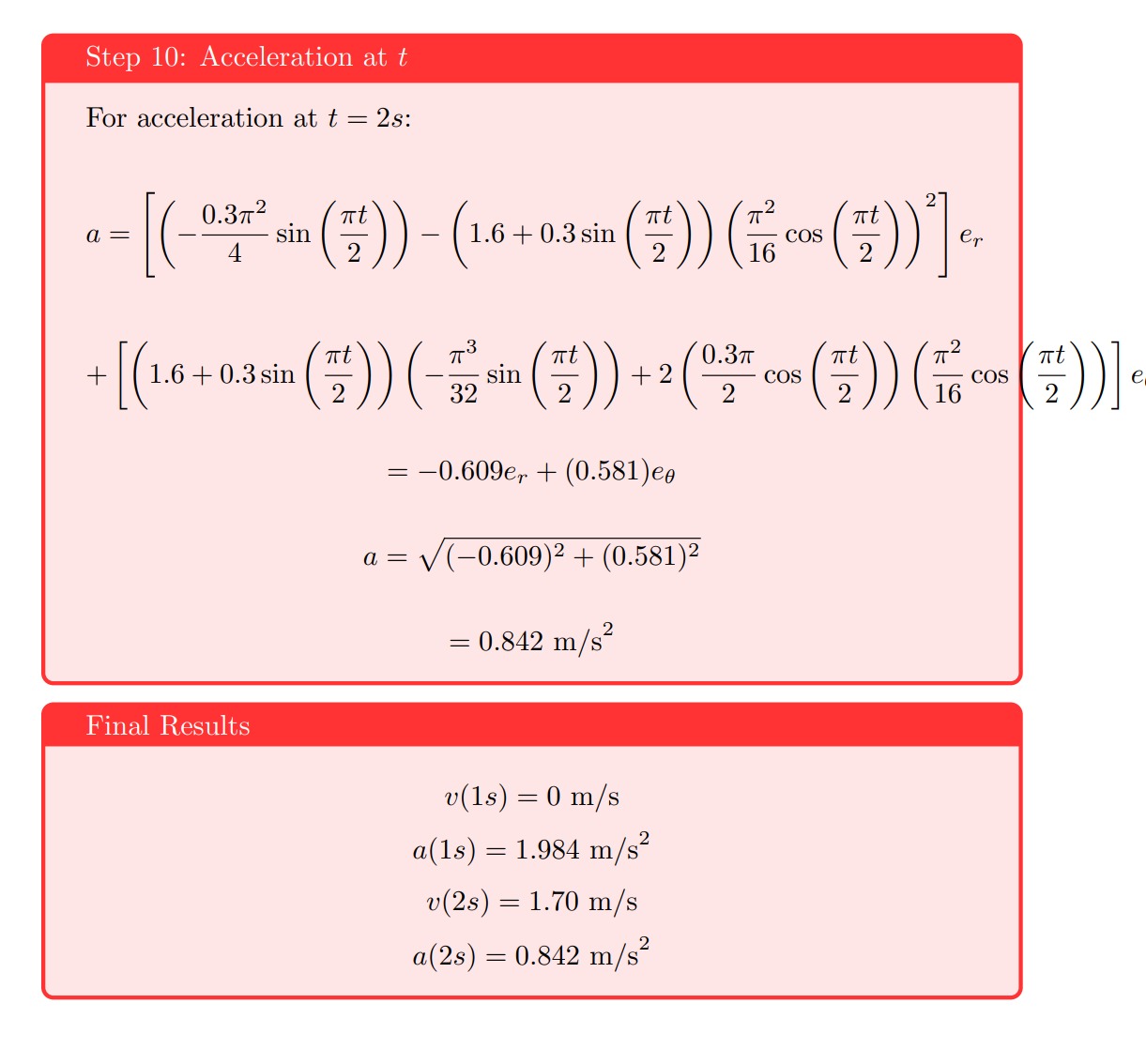

Answer ( 1 )

  1. Mechanical Engineering Expert
    0
    2025-02-07T15:42:15+05:00
