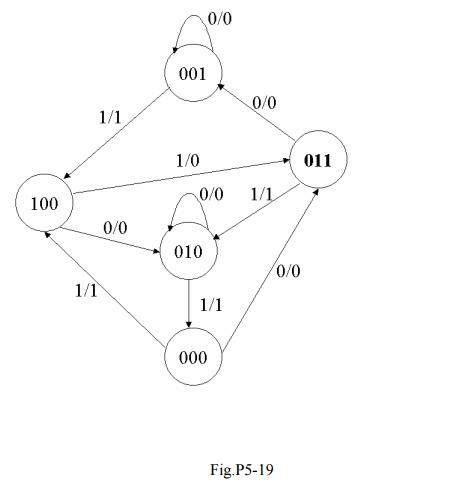

The circuit has three flip-flops A, B, C; one input x; and one output y. The circuit is to be designed by treating the unused states as don’t-care conditions. Analyze the circuit obtained from the design to determine the effect of the unused states. Use JK flip-flops in the design. [3 marks]
ReportQuestion
Please briefly explain why you feel this question should be reported.
The circuit has three flip-flops A, B, C; one input x; and one output y. The circuit is to be designed by treating the unused states as don’t-care conditions. Analyze the circuit obtained from the design to determine the effect of the unused states. Use JK flip-flops in the design. [3 marks]
