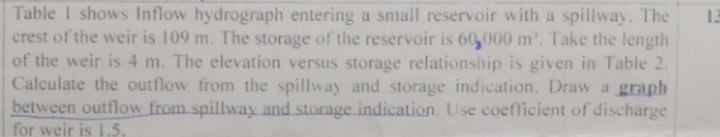

Table I shows Inflow hydrograph entering a small reservoir with a spillway. The crest of the weir is 109 m. The storage of the reservoir is 60,000 m². Take the length of the weir is 4 m. The elevation versus storage relationship is given in Table 2. Calculate the outflow from the spillway and storage indication. Draw a graph between outflow from spillway and storage indication. Use coefficient of discharge for weir is 1.5.
