Segments AB and BCD of beam ABCD are pin connected at x = 10 ft. The beam is supported by a pin support at A and roller supports at C and D;

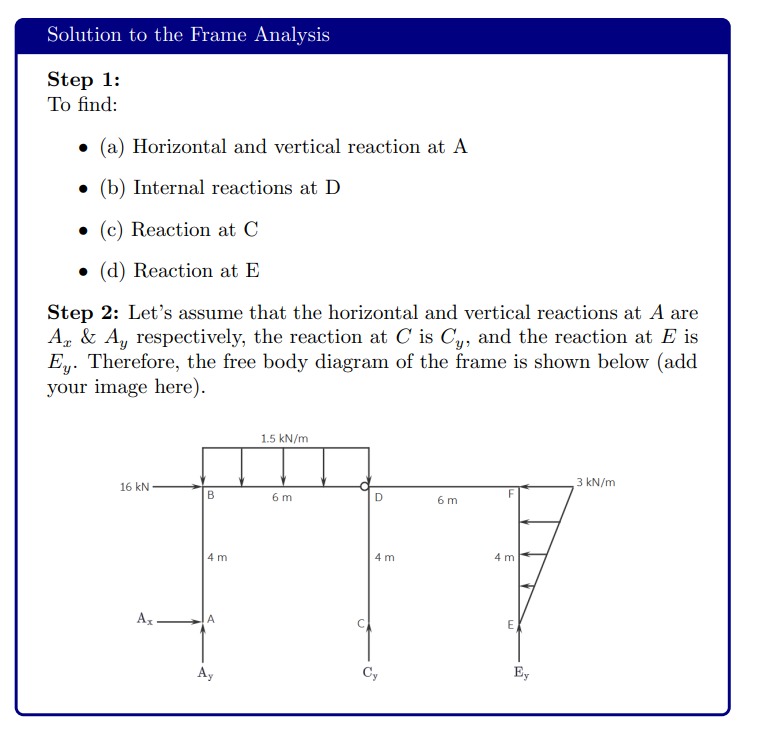

A plane frame has a pin support at A and roller supports at C and E. Frame segments ABD and CDEF are joint just left of
joint D by a pin connection.

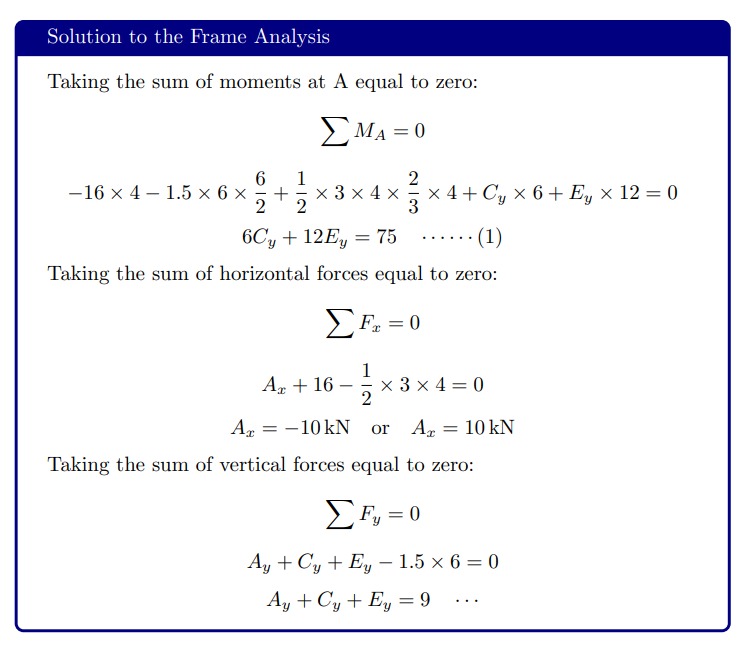

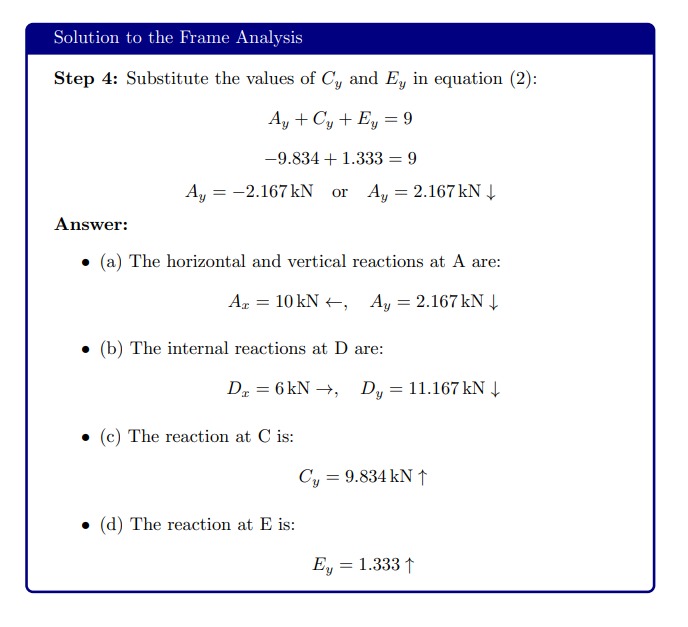

(a) Find reactions at supports A, C, and E.

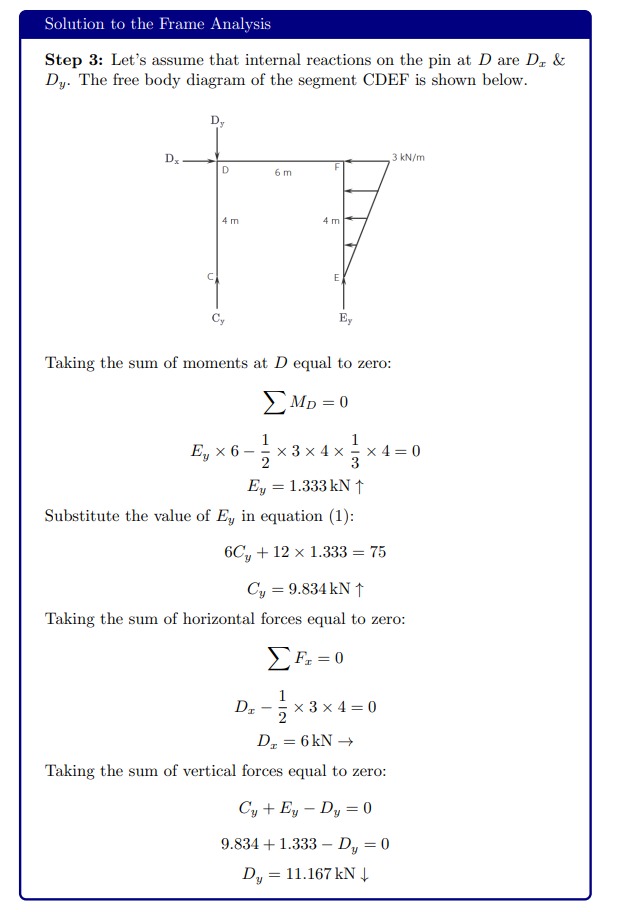

(b) Find the resultant force in the pin just left of D.

in progress 0
Gautamnadia 2025-01-22T20:32:46+05:00 1 Answer 20 views
0
MathJax Example

Answer ( 1 )

  1. Mechanical Engineering Expert
    0
    2025-01-22T21:18:07+05:00
