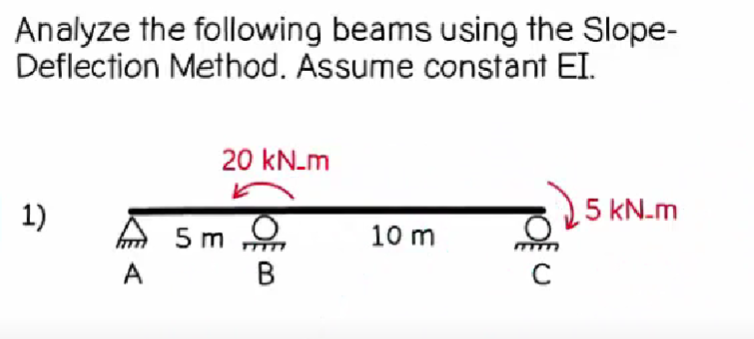

Problem 1: Analyze the beam shown below using the slope-deflection method. Assume a constant El. 20 kN-M 5 kN-m 5 м 5m PP 10 м A B

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
Problem 1: Analyze the beam shown below using the slope-deflection method. Assume a constant El. 20 kN-M 5 kN-m 5 м 5m PP 10 м A B

Problema 1: Analice la viga que se muestra a continuación utilizando el método de pendiente-deflexión. Suponga una constante El. 20 kN-M 5 kN-m 5 м 5m PP 10 м A B

in progress 0
Anonymous 2025-02-11T09:14:20+05:00 1 Answer 17 views
0
MathJax Example

Answer ( 1 )

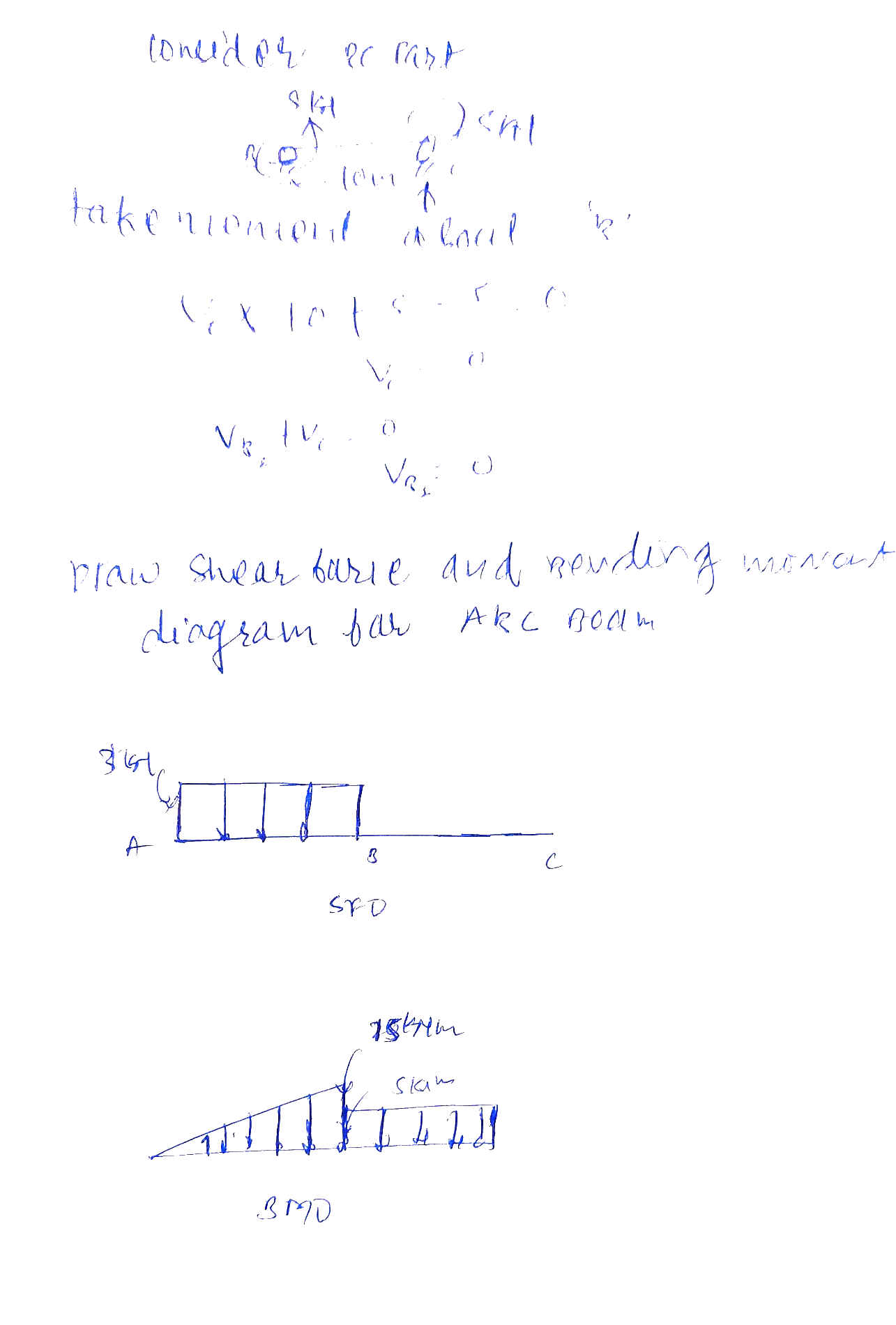

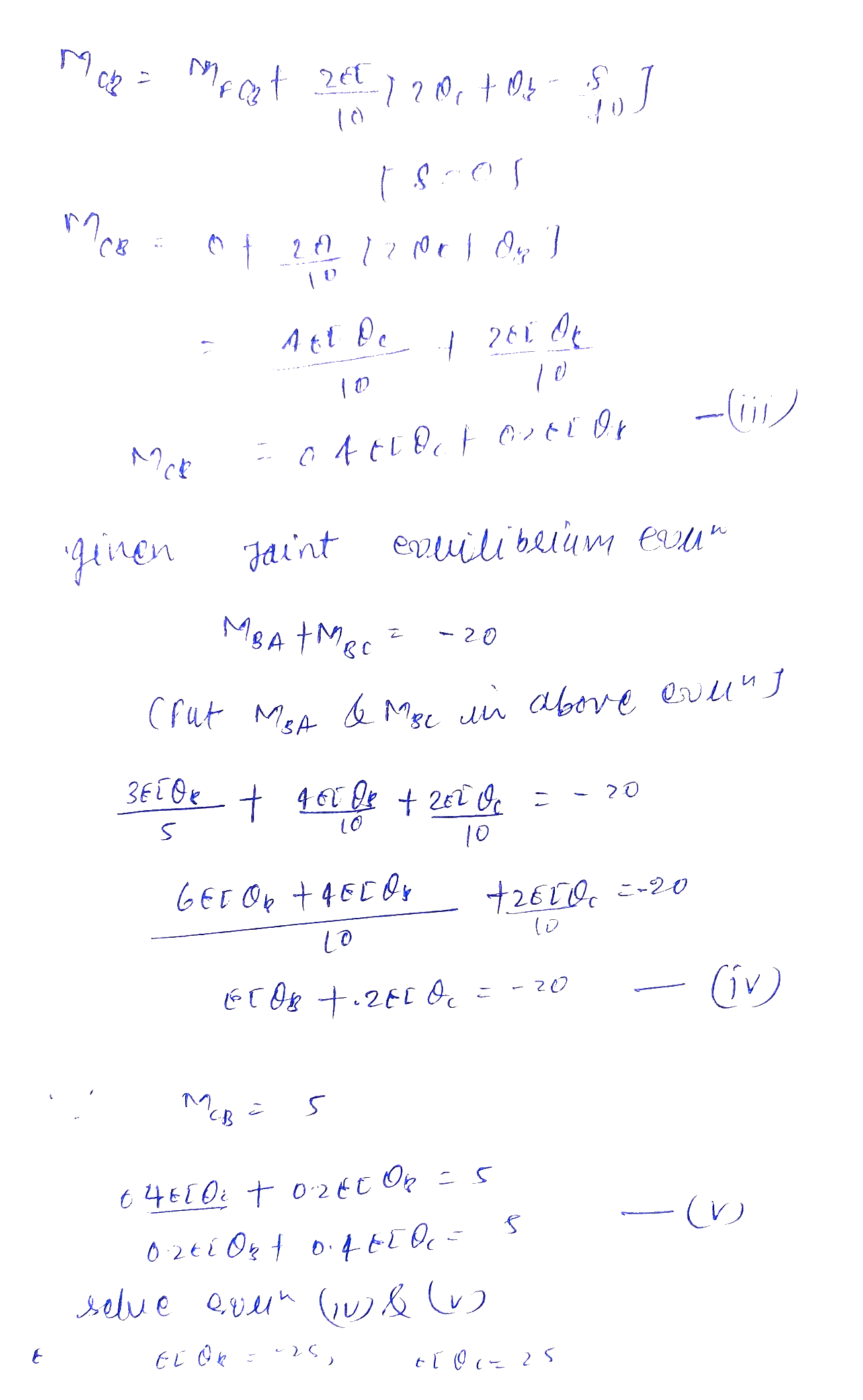

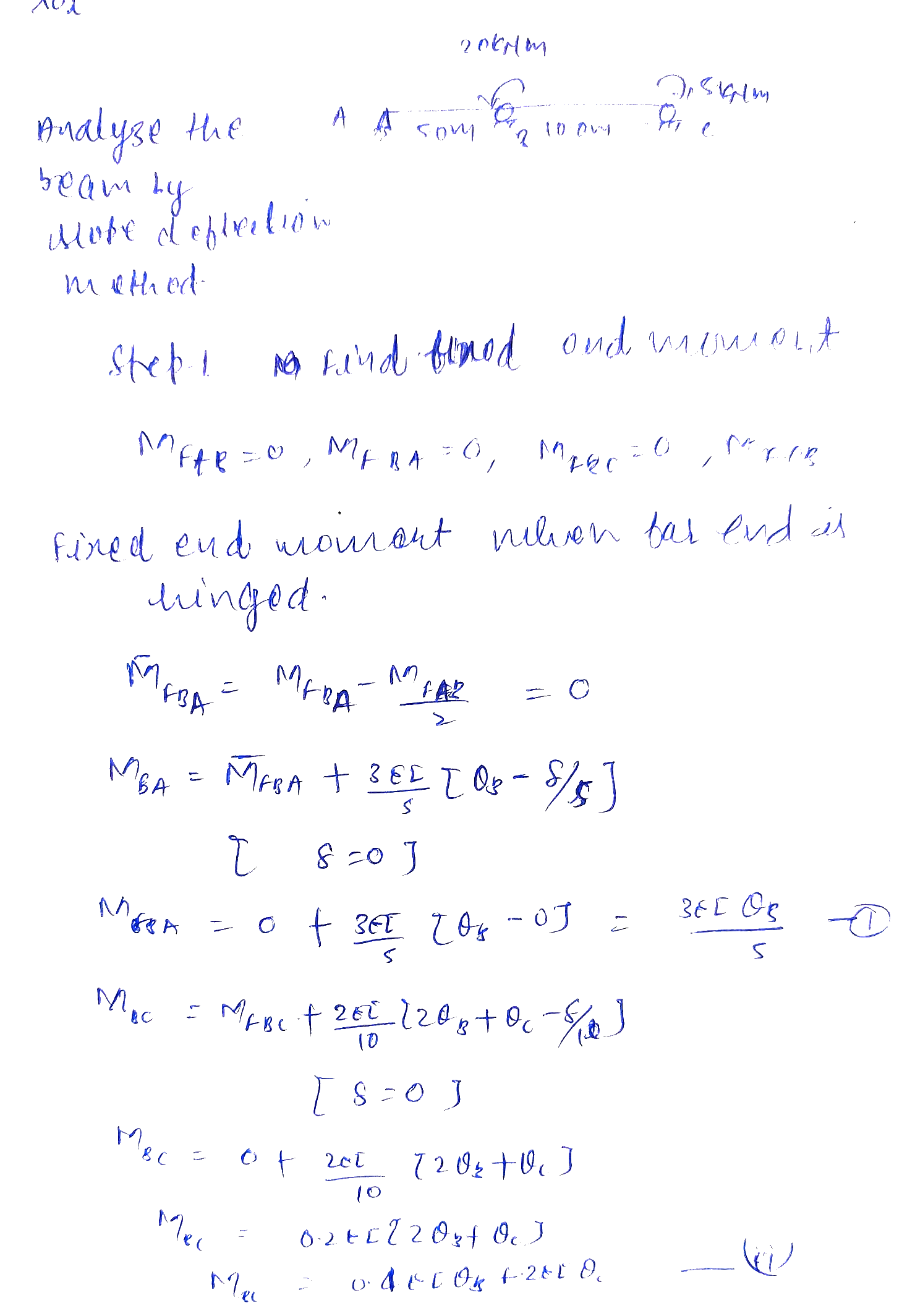

  1. Mechanical Engineering Expert
    0
    2025-02-11T17:25:44+05:00
