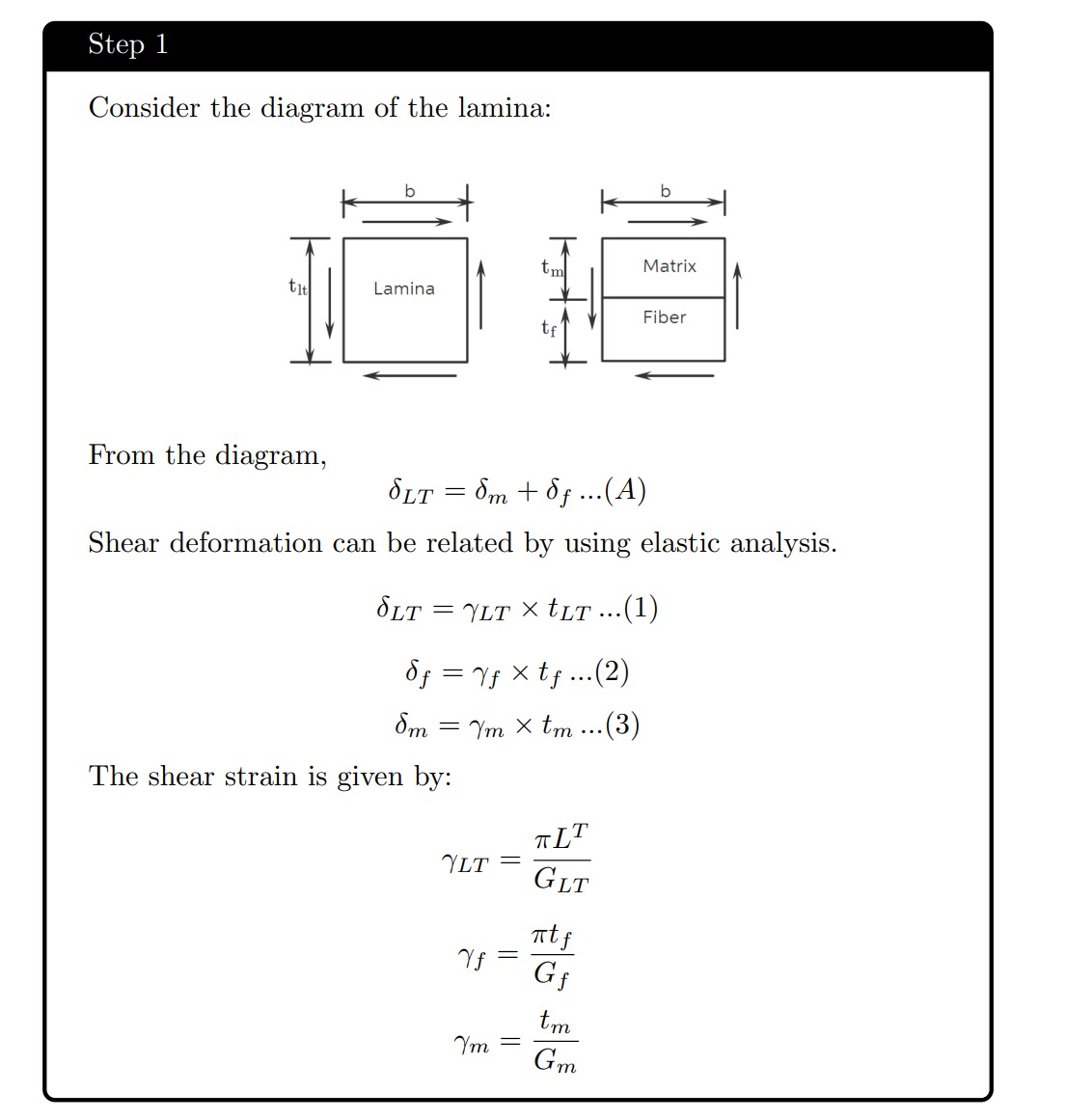

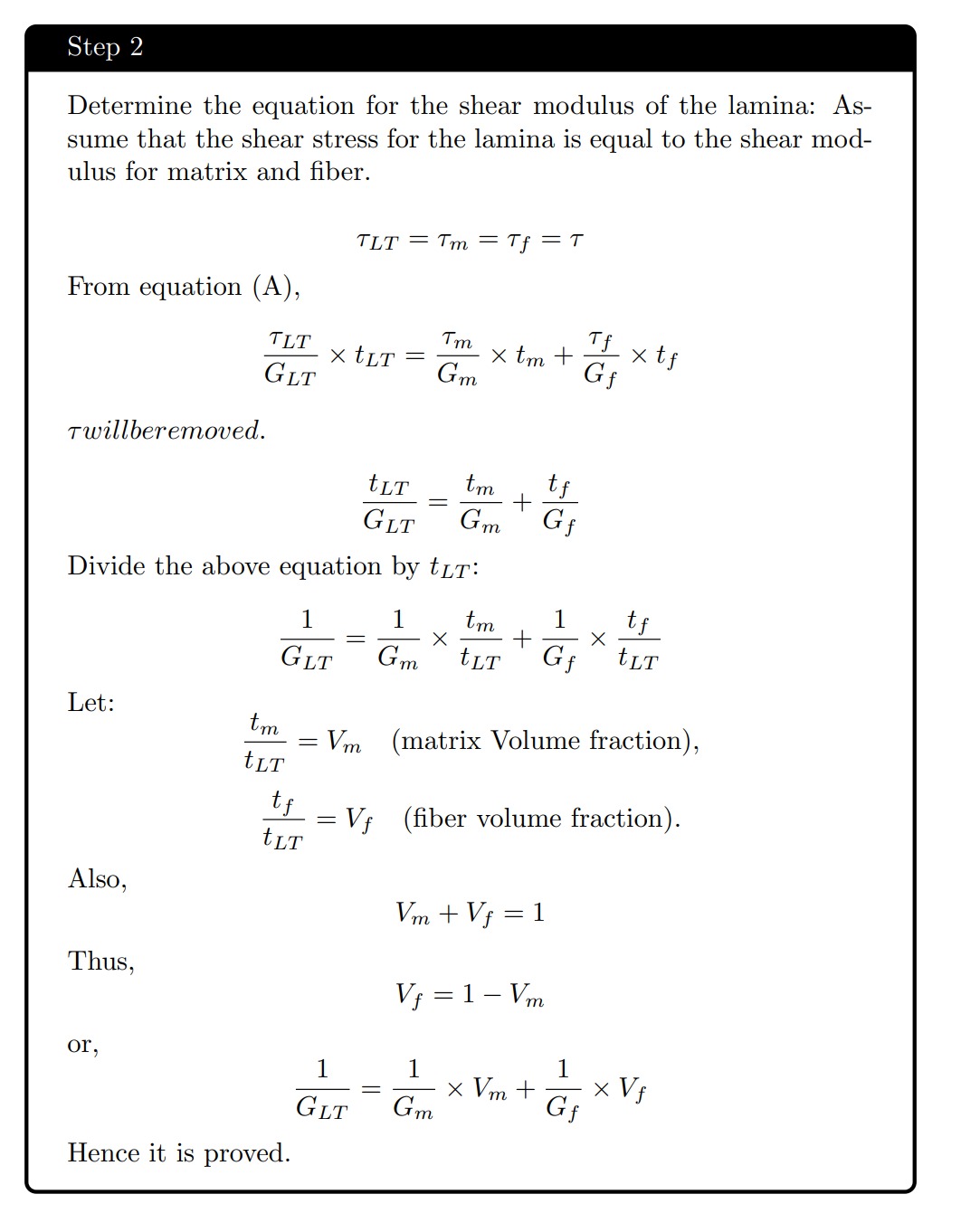

P3.6. A unidirectional continuous fiber lamina is subjected to shear stress as shown in the following figure. Using the “slab” model, show that the shear modulus GLt of the lamina can be represented by the following equation. 1 GLT = VE (1 – Vf) + GE Gm Matrix Fiber Unidirectional continuous fiber-reinforced composite and the equivalent slab model in in-plane shear loading

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
P3.6. A unidirectional continuous fiber lamina is subjected to shear stress as shown in the following figure. Using the “slab” model, show that the shear modulus GLt of the lamina can be represented by the following equation. 1 GLT = VE (1 – Vf) + GE Gm Matrix Fiber Unidirectional continuous fiber-reinforced composite and the equivalent slab model in in-plane shear loading

P3.6. A unidirectional continuous fiber lamina is subjected to shear stress as shown in the following figure. Using the “slab” model, show that the shear modulus GLt of the lamina can be represented by the following equation. 1 GLT = VE (1 – Vf) + GE Gm Matrix Fiber Unidirectional continuous fiber-reinforced composite and the equivalent slab model in in-plane shear loading

in progress 0
Fernando01 2025-02-08T23:58:11+05:00 1 Answer 12 views Beginner
0
MathJax Example

Answer ( 1 )

  1. Mechanical Engineering Expert
    0
    2025-02-09T01:29:50+05:00
