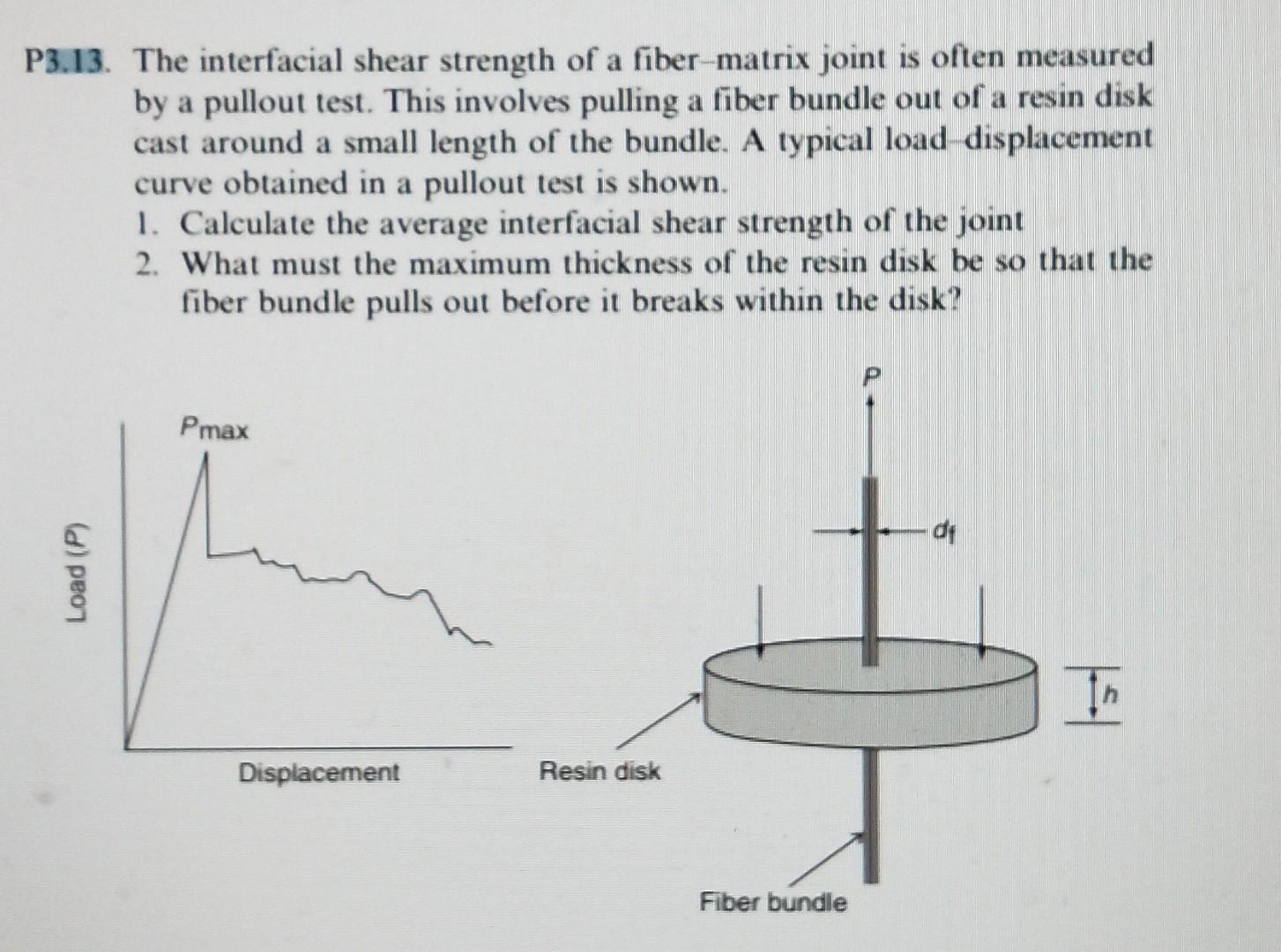

P3.13. The interfacial shear strength of a fiber-matrix joint is often measured by a pullout test. This involves pulling a fiber bundle out of a resin disk cast around a small length of the bundle. A typical load displacement curve obtained in a pullout test is shown. 1. Calculate the average interfacial shear strength of the joint 2. What must the maximum thickness of the resin disk be so that the fiber bundle pulls out before it breaks within the disk? Pmax Load (P) Displacement sin di Fiber bundle

Please briefly explain why you feel this question should be reported.

Report

Cancel

P3.13. The interfacial shear strength of a fiber-matrix joint is often measured by a pullout test. This involves pulling a fiber bundle out of a resin disk cast around a small length of the bundle. A typical load displacement curve obtained in a pullout test is shown. 1. Calculate the average interfacial shear strength of the joint 2. What must the maximum thickness of the resin disk be so that the fiber bundle pulls out before it breaks within the disk? Pmax Load (P) Displacement sin di Fiber bundle

in progress 0

Engineering Fernando01 7 months 2025-02-08T23:59:57+05:00 2025-02-08T23:59:57+05:00 1 Answer 11 views Beginner

0
