In Fig. P-2.11 which depicts two three-phase circuits on a steel tower there is symmetry about both the horizontal and vertical centre lines. Let each three-phase circuit be transposed by replacing a by b and then by c, so that the reactances of the three-phases are equal and the GMD method of reactance calculations can be used. Each circuit remains on its own side of the tower. Let the self GMD of a single conductor be 1 cm. Conductors a and a’ and other corresponding phase conductors are connected in parallel. Find the reactance per phase of the system.
ReportQuestion
Please briefly explain why you feel this question should be reported.
In Fig. P-2.11 which depicts two three-phase circuits on a steel tower there is symmetry about
both the horizontal and vertical centre lines. Let each three-phase circuit be transposed by replacing a by b
and then by c, so that the reactances of the three-phases are equal and the GMD method of reactance
calculations can be used. Each circuit remains on its own side of the tower. Let the self GMD of a single
conductor be 1 cm. Conductors a and a’
and other corresponding phase conductors are connected in parallel.
Find the reactance per phase of the system.

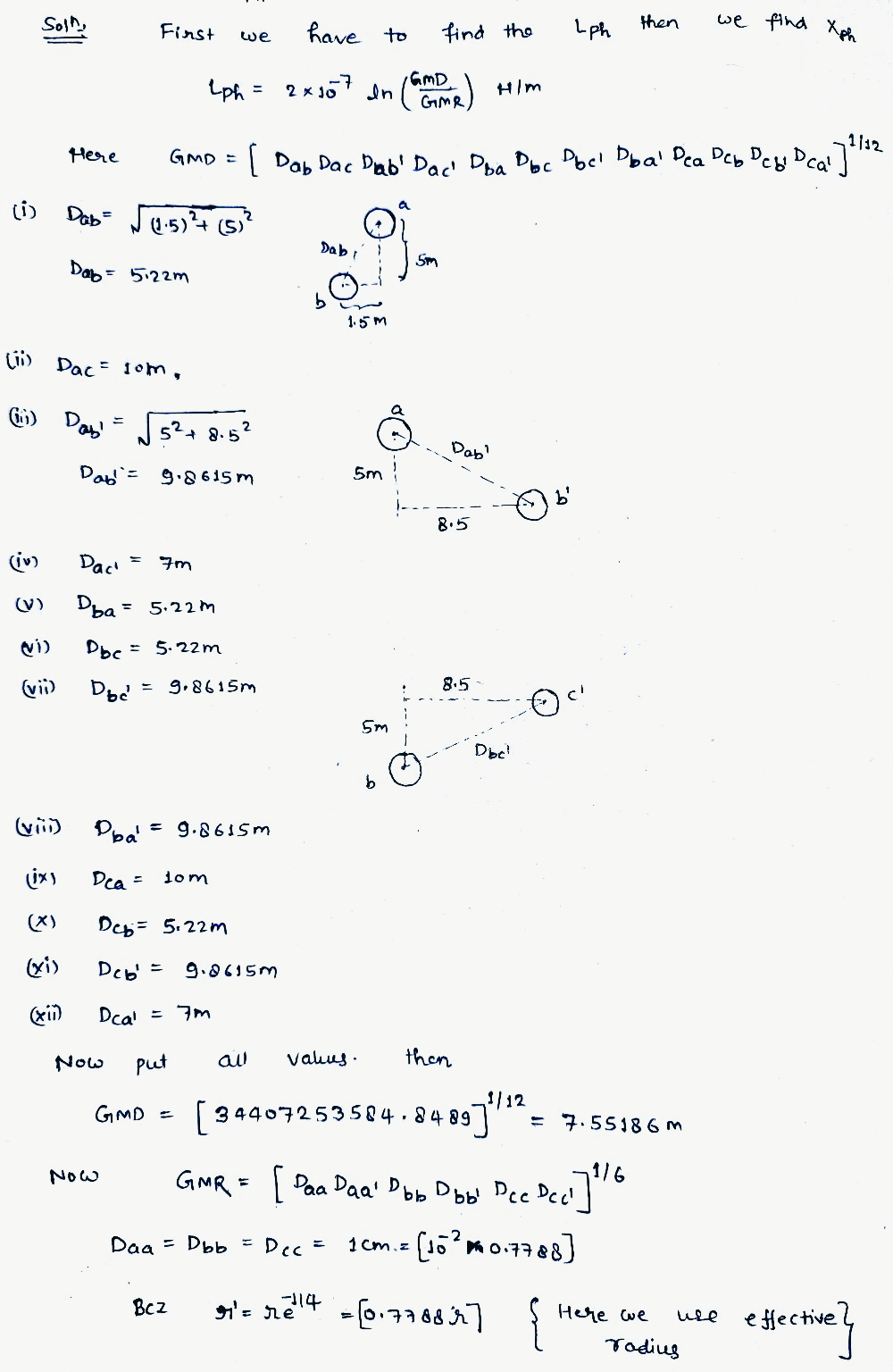

Answer ( 1 )
