Given: A Plane Stress element n a part made of the 6061-T6 s found to have the following stress: Sigma x = 38.5MPa; sigma y = 68MPa, and tau xy = 34.4MPa The Ultimate Strength s 310MPa The Axial Yield Strength, Sy, of 6061-T6 aluminum is 276MPa, and its Shear Yield Strength, tau y, is 189MPa. Find (a) Factor of Safety using Maximum Principal Stress Criterion (b) Factor of Safety using Tresca Criterion. (c) Factor of Safety using von Mises Criterion.

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
Given: A Plane Stress element n a part made of the 6061-T6 s found to have the following stress: Sigma x = 38.5MPa; sigma y = 68MPa, and tau xy = 34.4MPa The Ultimate Strength s 310MPa The Axial Yield Strength, Sy, of 6061-T6 aluminum is 276MPa, and its Shear Yield Strength, tau y, is 189MPa. Find (a) Factor of Safety using Maximum Principal Stress Criterion (b) Factor of Safety using Tresca Criterion. (c) Factor of Safety using von Mises Criterion.

Given: A Plane Stress element n a part made of the 6061-T6 s found to have the following stress: Sigma x = 38.5MPa; sigma y = 68MPa, and tau xy = 34.4MPa The Ultimate Strength s 310MPa The Axial Yield Strength, Sy, of 6061-T6 aluminum is 276MPa, and its Shear Yield Strength, tau y, is 189MPa. Find (a) Factor of Safety using Maximum Principal Stress Criterion (b) Factor of Safety using Tresca Criterion. (c) Factor of Safety using von Mises Criterion.

solved 0
Hanish Karthik 2025-03-23T11:49:53+05:00 1 Answer 13 views Beginner
0
MathJax Example

Answer ( 1 )

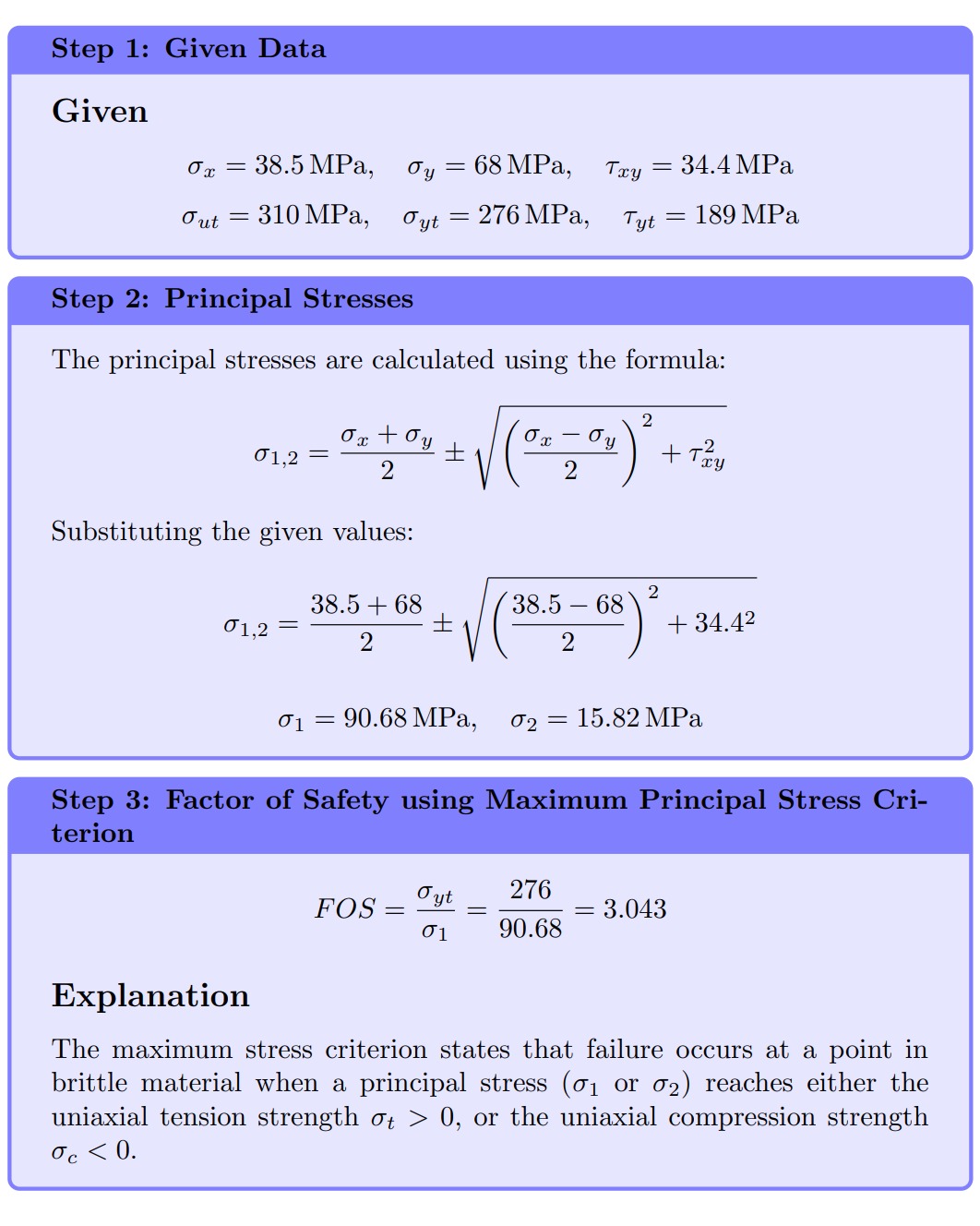

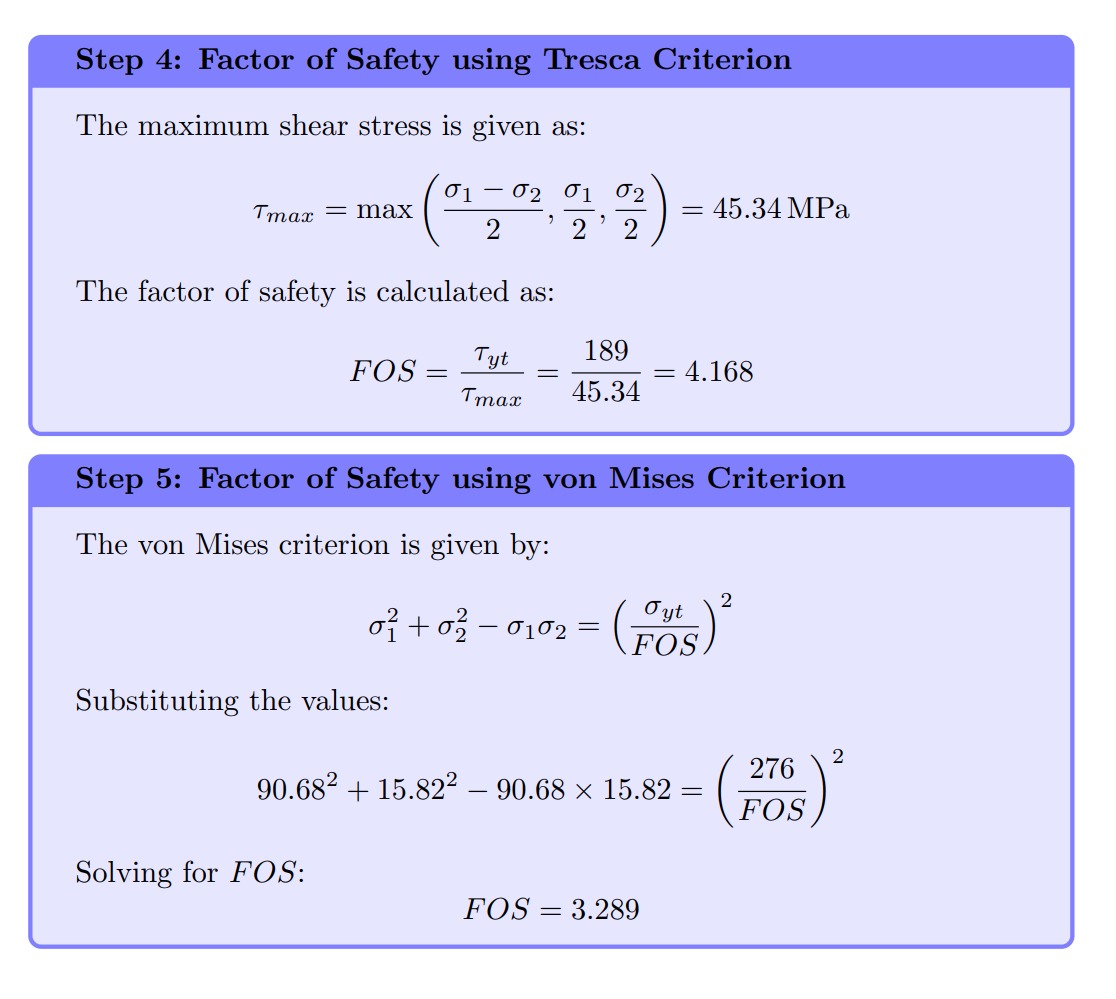

  1. Admin
    0
    2025-03-23T13:46:09+05:00
    Report Reply

    Please briefly explain why you feel this answer should be reported.

    Report
    Cancel

    Best answer
