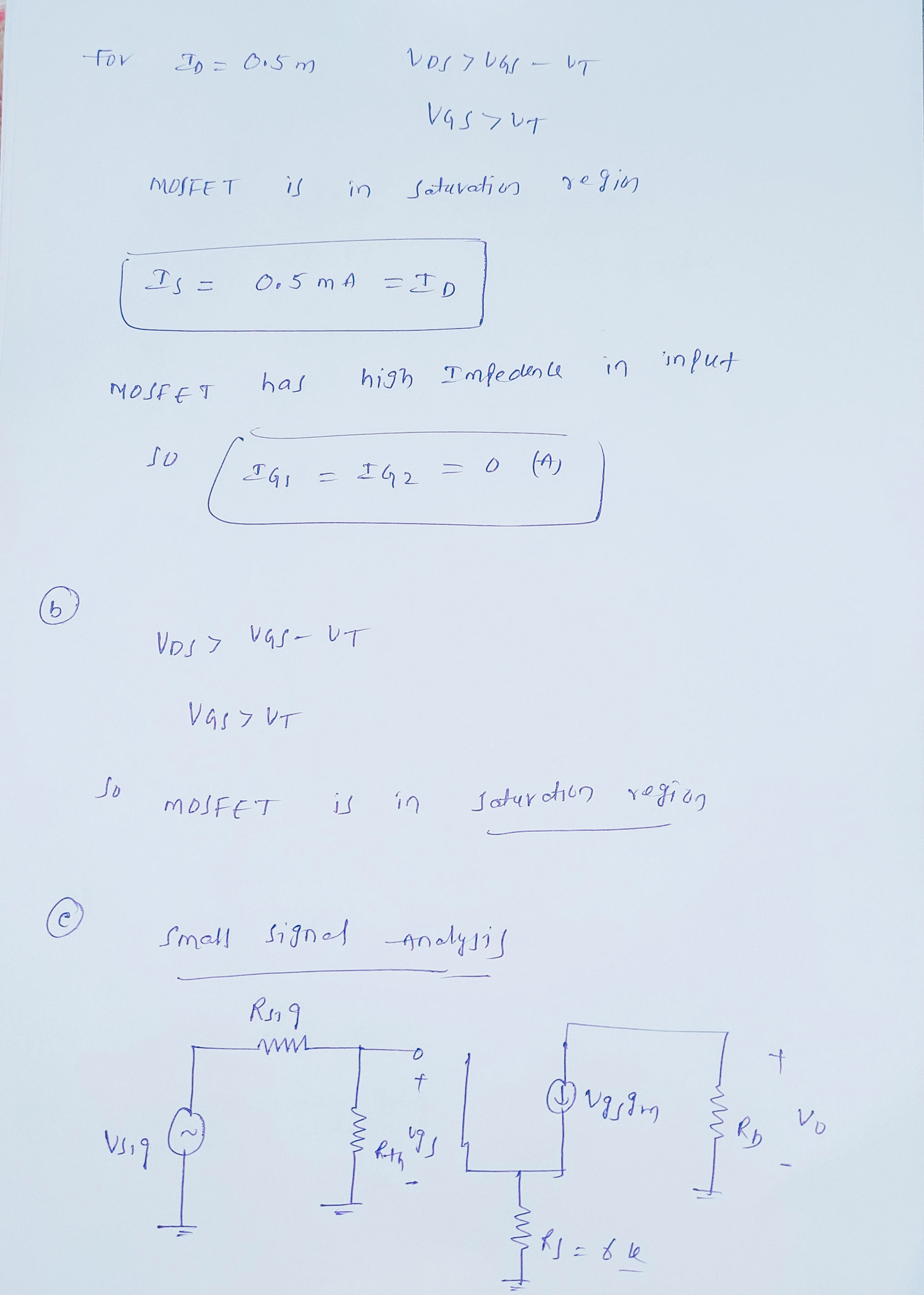

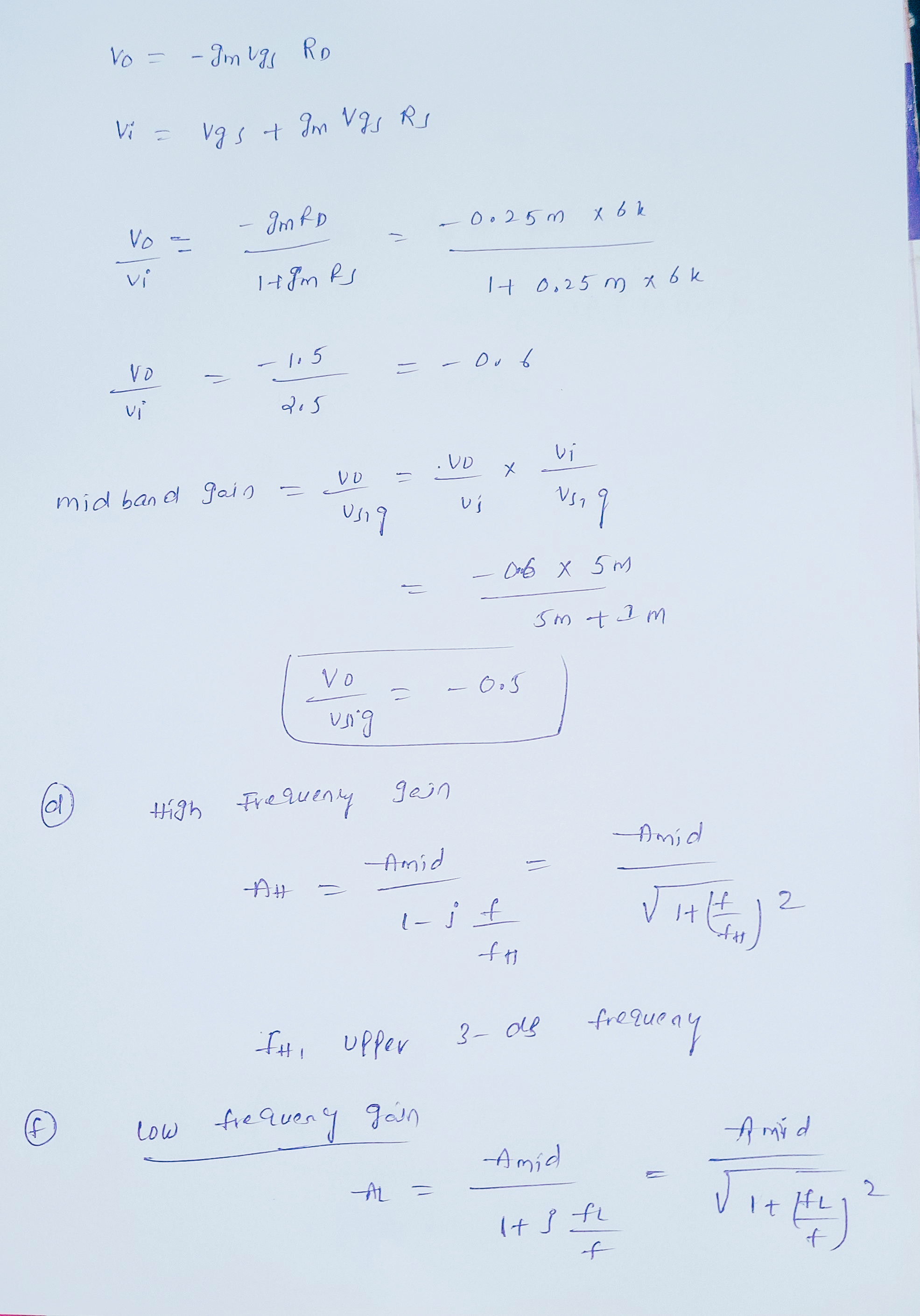

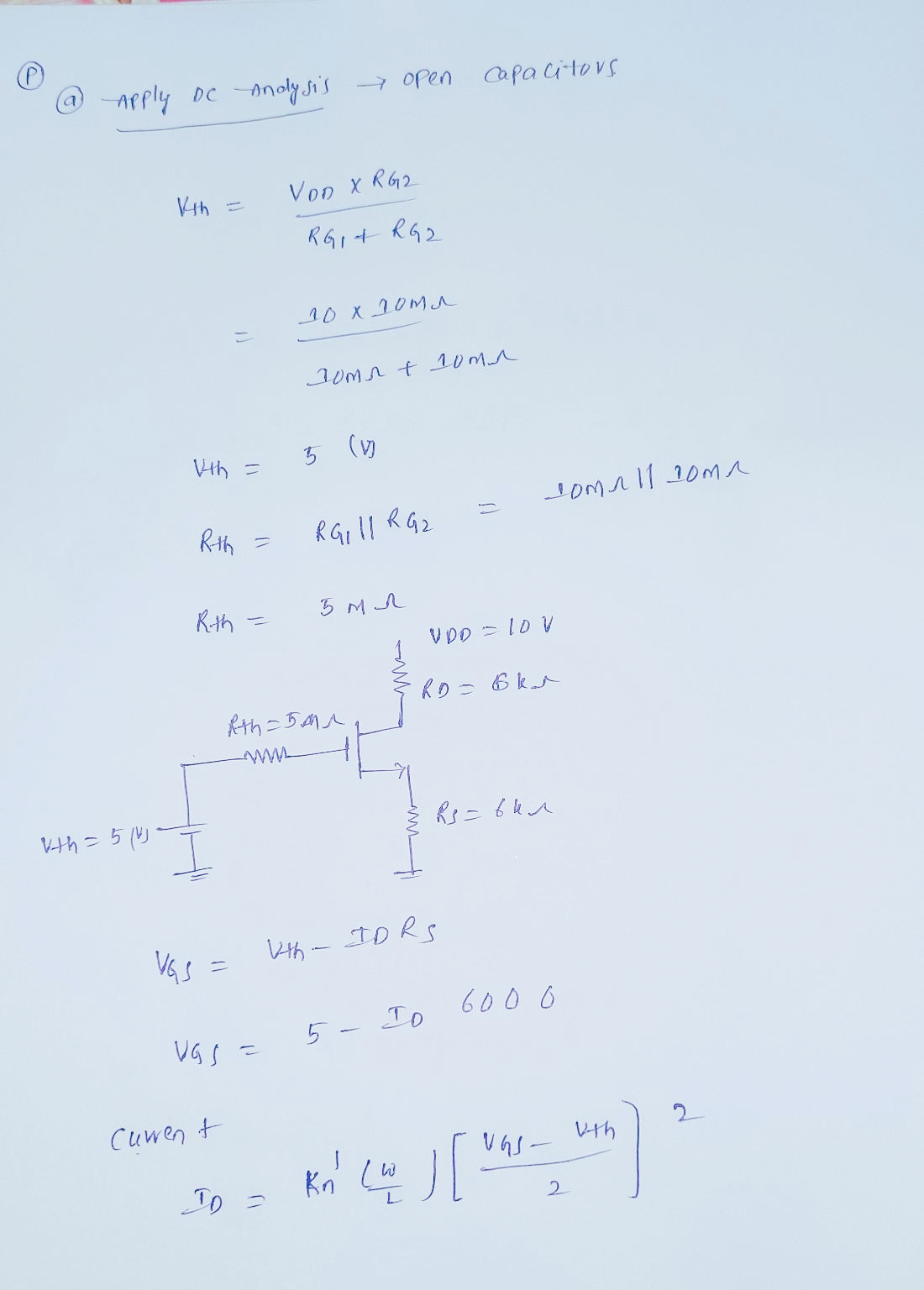

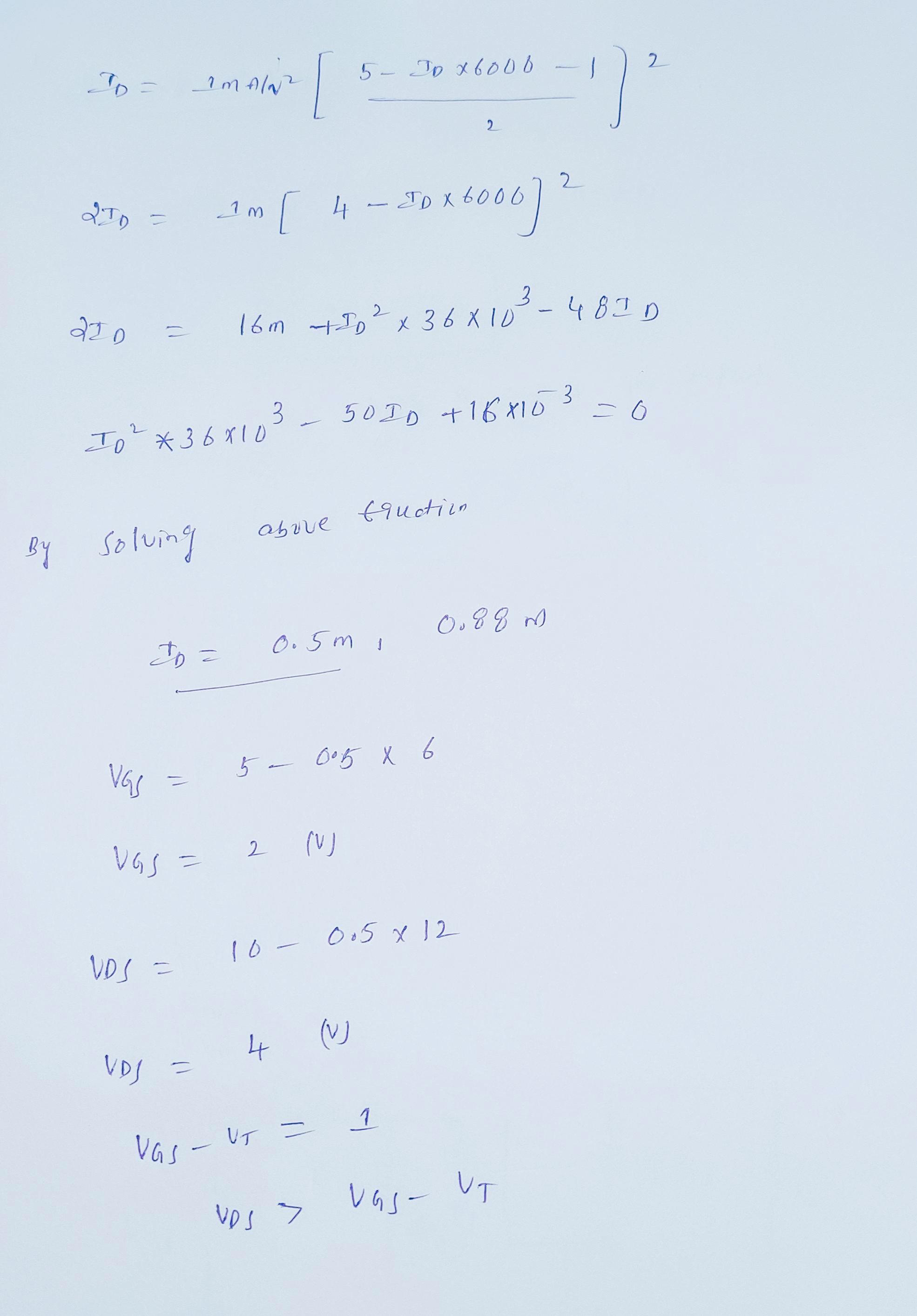

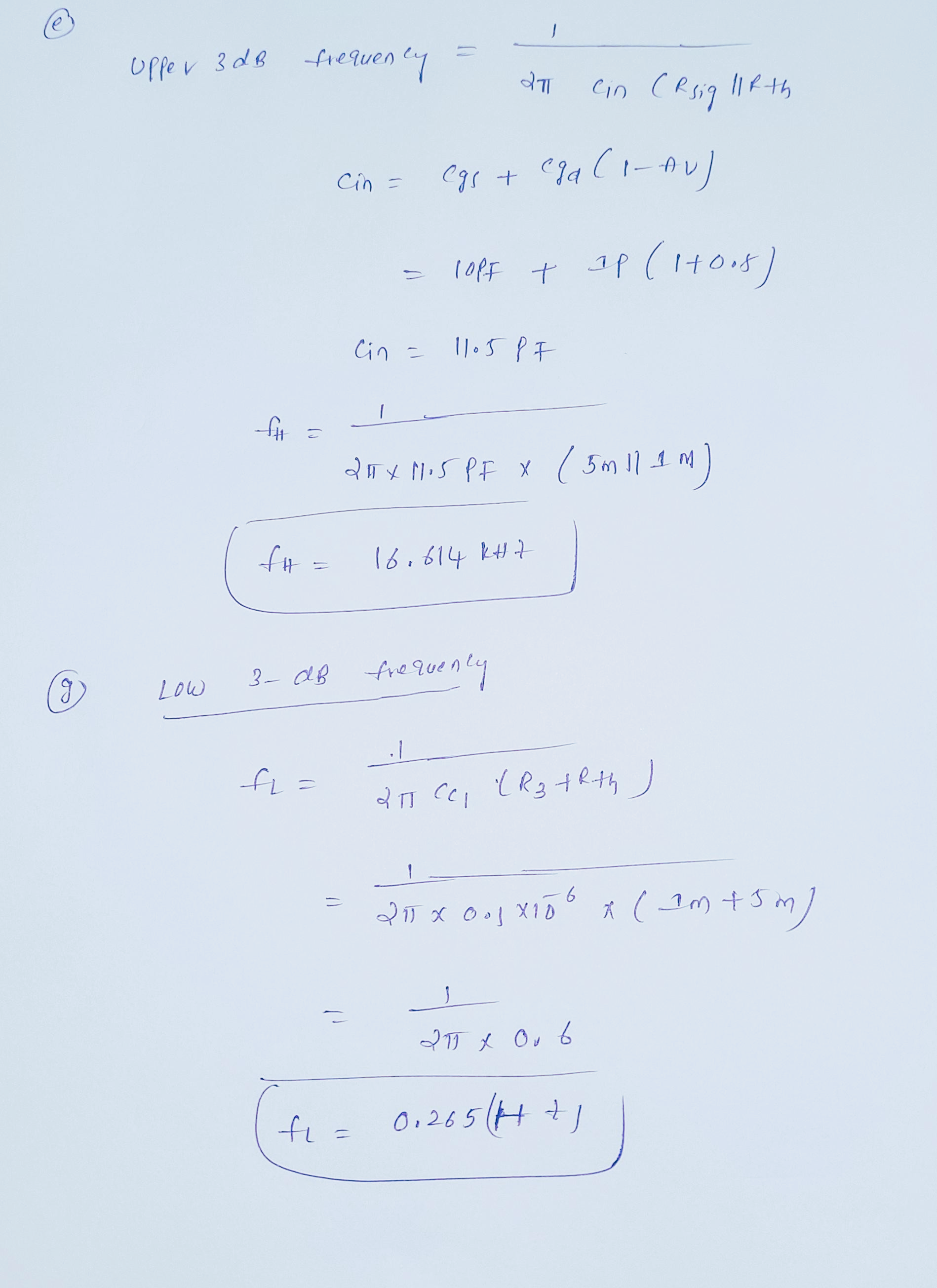

For the circuit shown in the figure below, Vt = 1 V and kn ′ (W/L) = 1 mA/ V2, VDD = 10 V,RG1 = RG2 = 10 MΩ, RD = Rs = 6 KΩ, Rsig = 1MΩ, Cc1 = 0.1μF, Cgs = 10 pF Cgd = 1 pF. Neglect the channel length modulation effect (i.e., assume λ = 0).Find:a) Missing Current Values IG1, IG2, ID and IS.b) Classify which operation region the Amplifier is operating.c) The midband Gain .d) The high frequency gain.e) Find the upper 3-dB frequency.f) Find the low frequency gain.g) Find the low 3-dB frequency.
