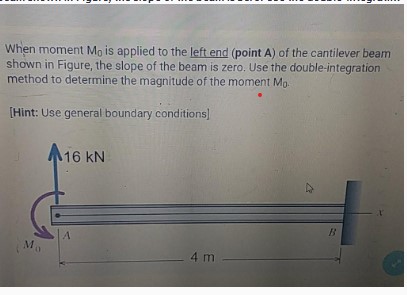

When moment Mo is applied to the left end (point A) of the cantilever beam shown in Figure, the slope of the beam is zero. Use the double-integration method to determine the magnitude of the moment Mo

When moment Mo is applied to the left end (point A) of the cantilever beam shown in Figure, the slope of the beam is zero. Use the double-integration method to determine the magnitude of the moment Mo
[Hint: Use general boundary conditions]


Attachment
in progress 0
Obaid 2024-12-02T15:43:25+05:00 1 Answer 29 views Beginner
0
MathJax Example

Answer ( 1 )

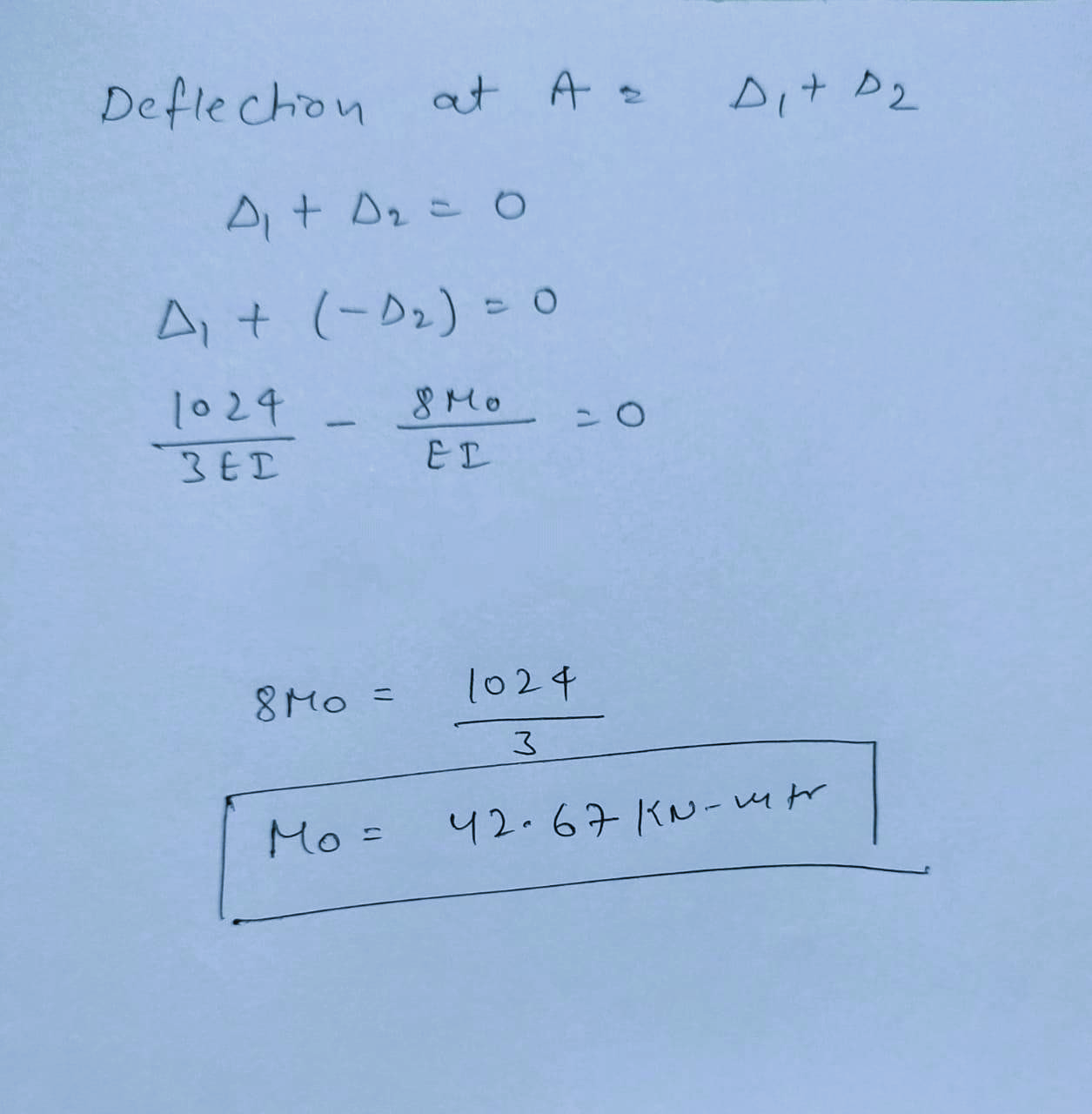

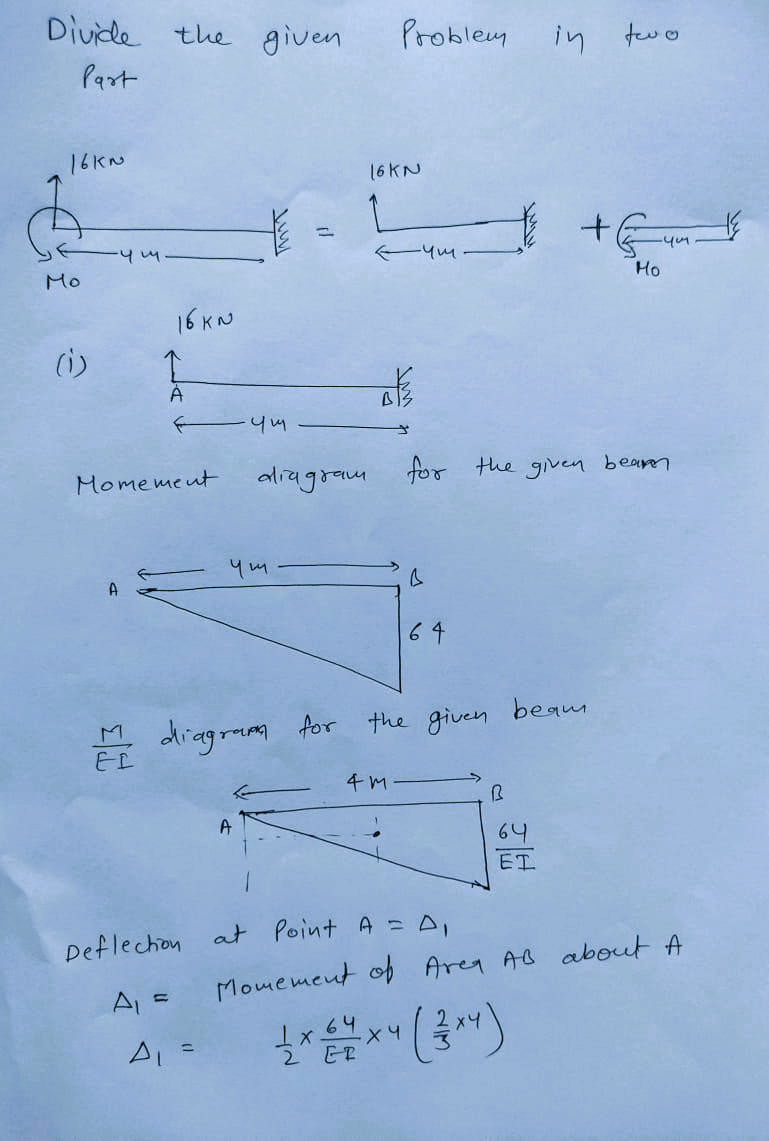

  1. Mechanical Engineering Expert
    0
    2024-12-02T16:20:13+05:00
