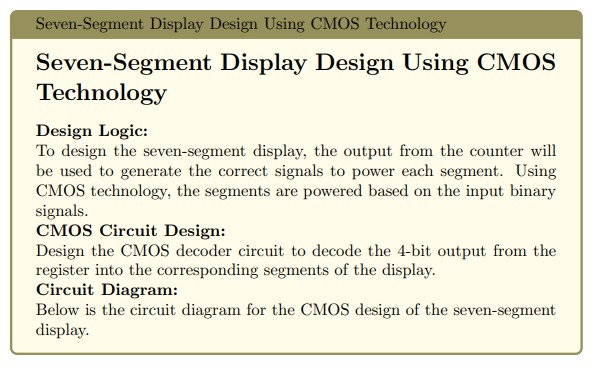

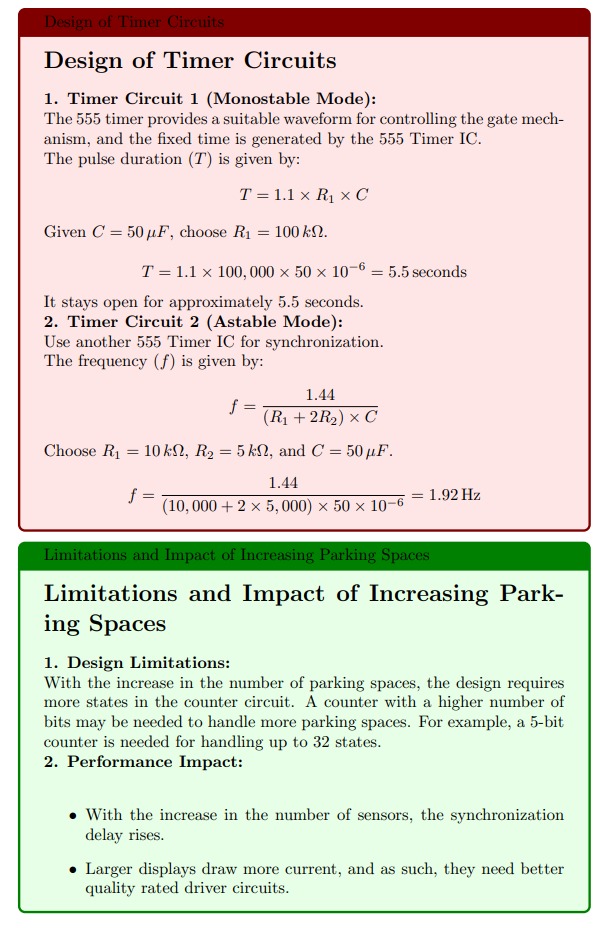

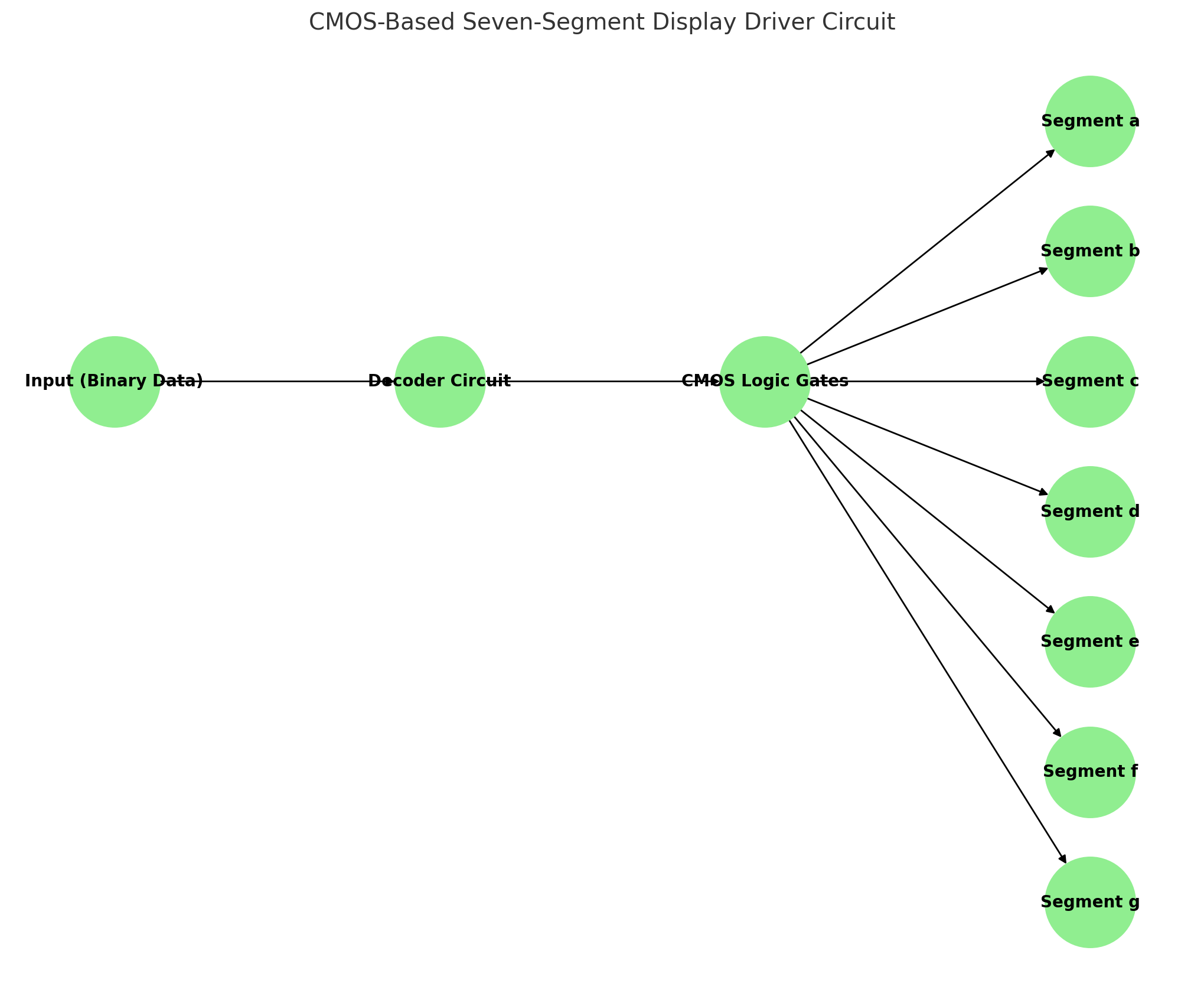

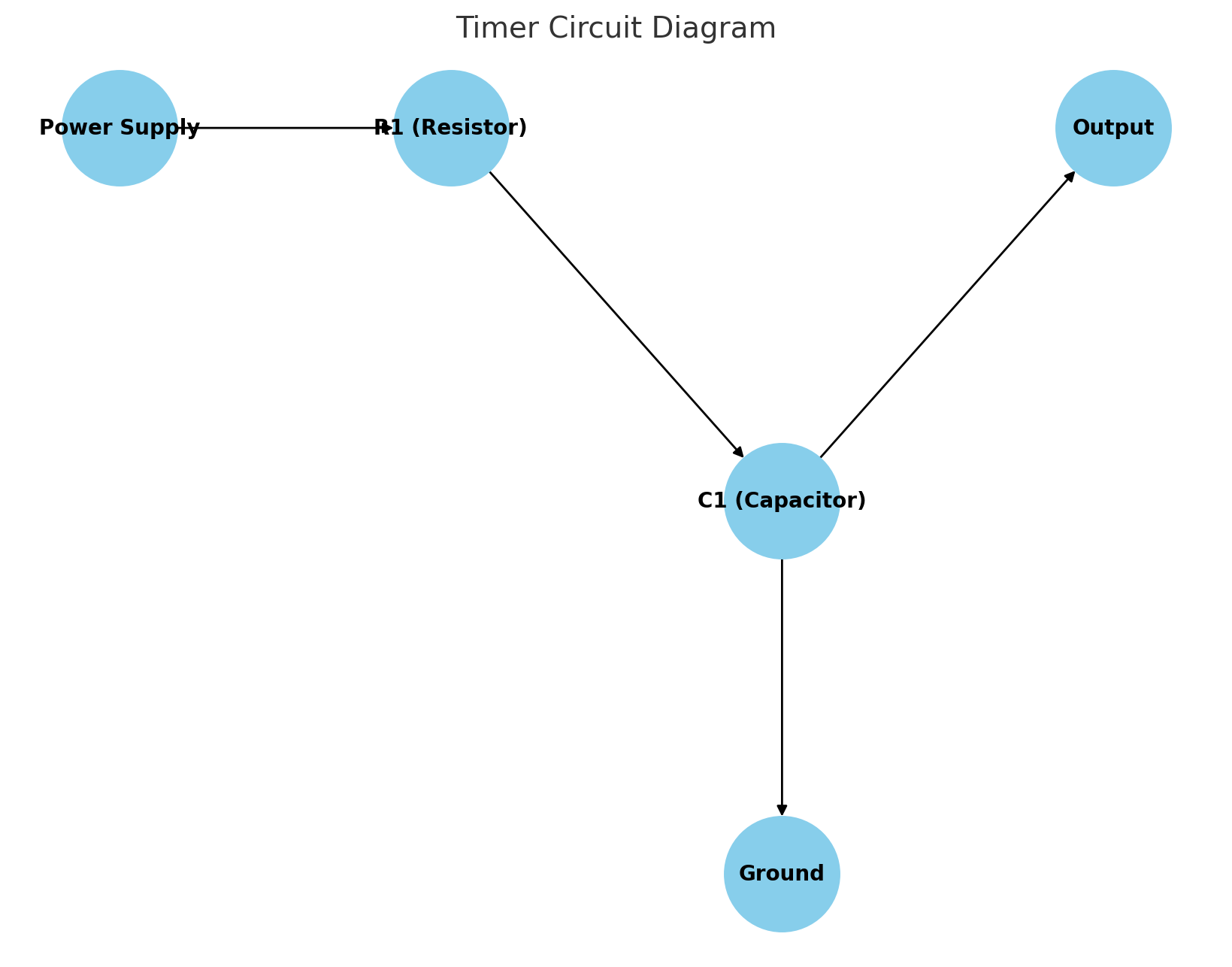

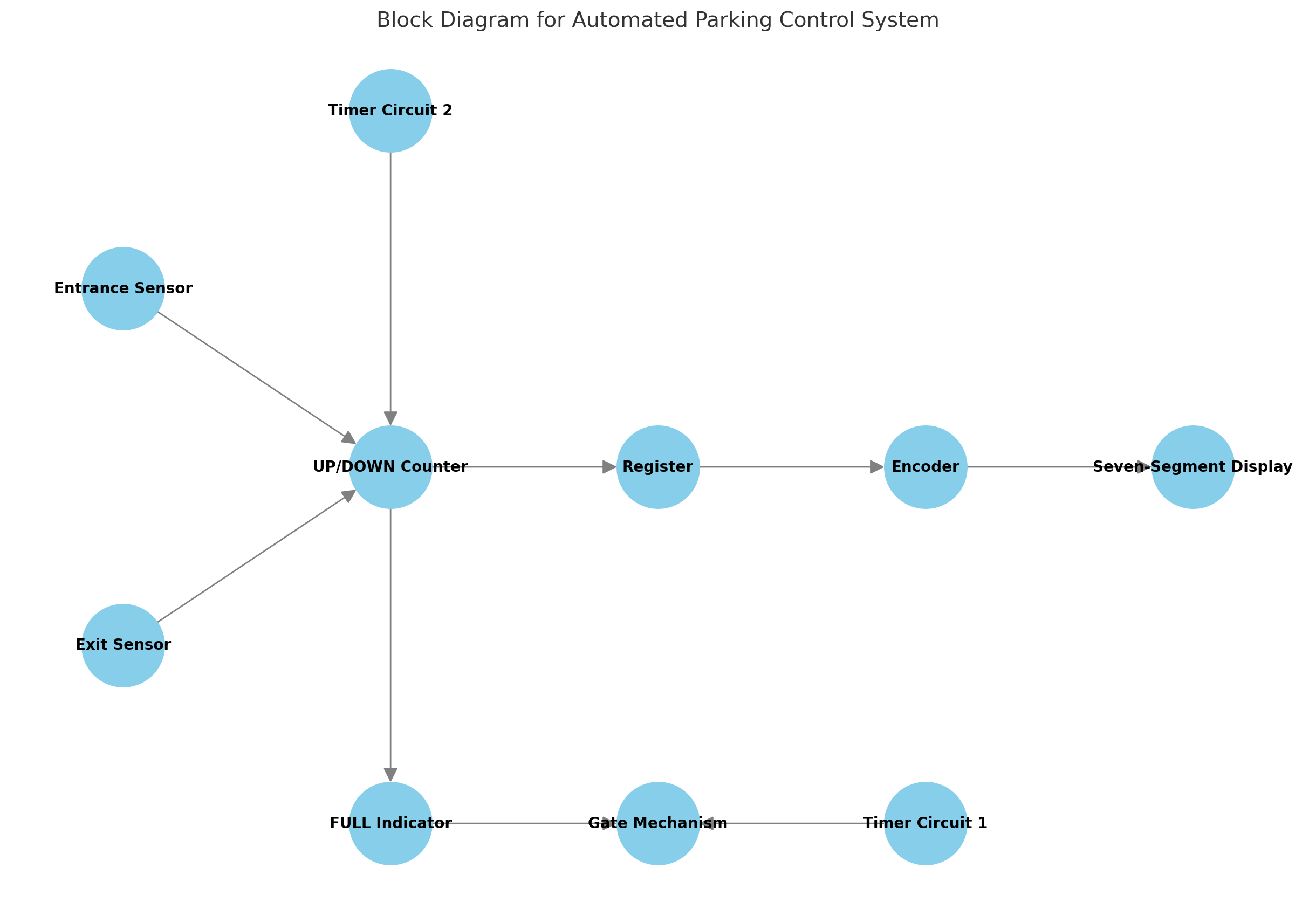

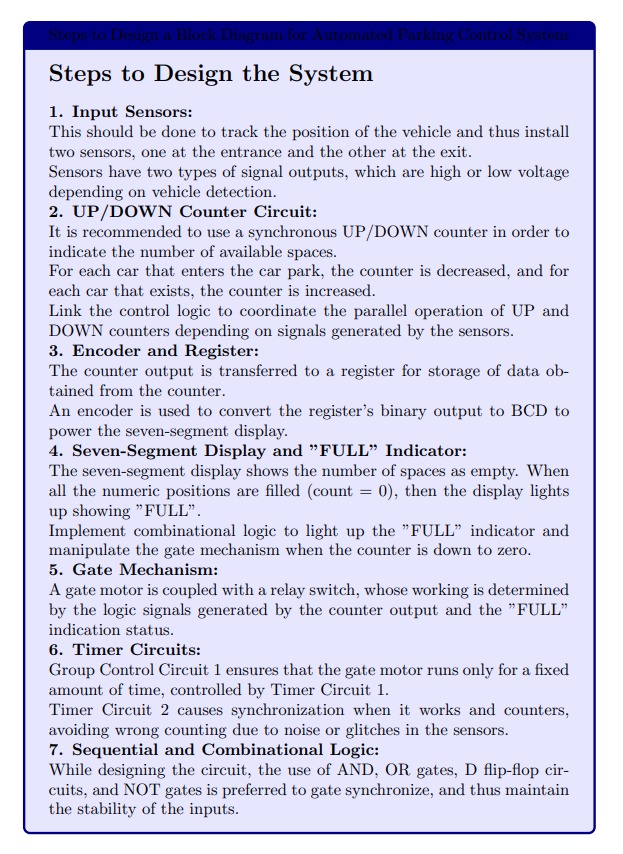

designing an automated parking control system. This system should include an actuated gate mechanism, a "FULL" indication using a seven-segment display, and a counter circuit. In addition, Design the counter circuit which is capable of simultaneous UP/DOWN counting. Include additional sequential and combinational logic components, if required, to ensure smooth control and operation, providing appropriate reasoning for selecting these components. ii. Design the timer circuit 1 and the timer circuit 2 with a suitable frequency based on your requirement, in which the capacitor value will be C = (c*g+20) µF. Identify the limitations of the designed system and analyze the impact of increasing the number of parking spaces on its performance. iii. Design the functions of your seven-segment display using CMOS technology to represent one of the letters in the word “FULL”.
