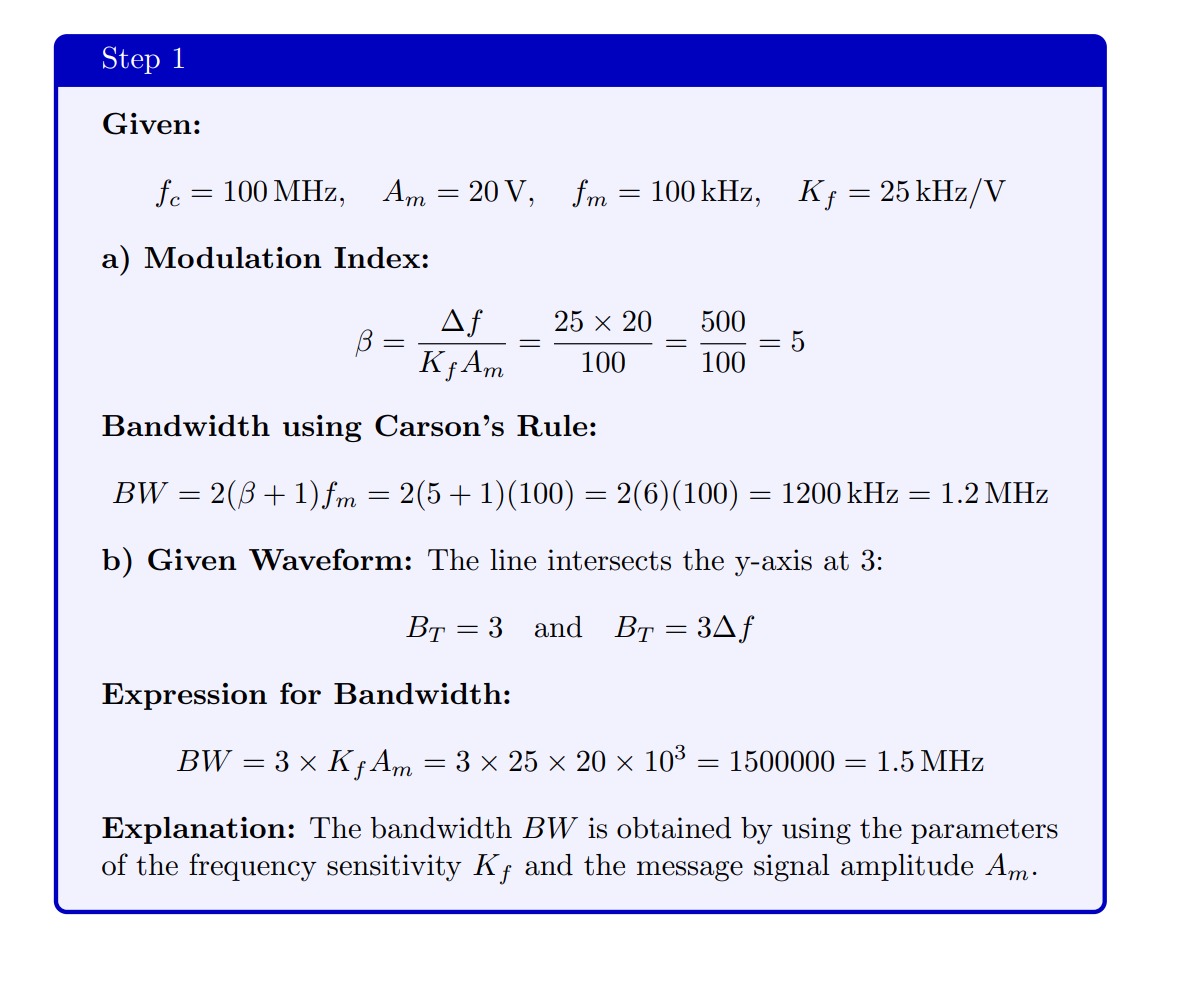

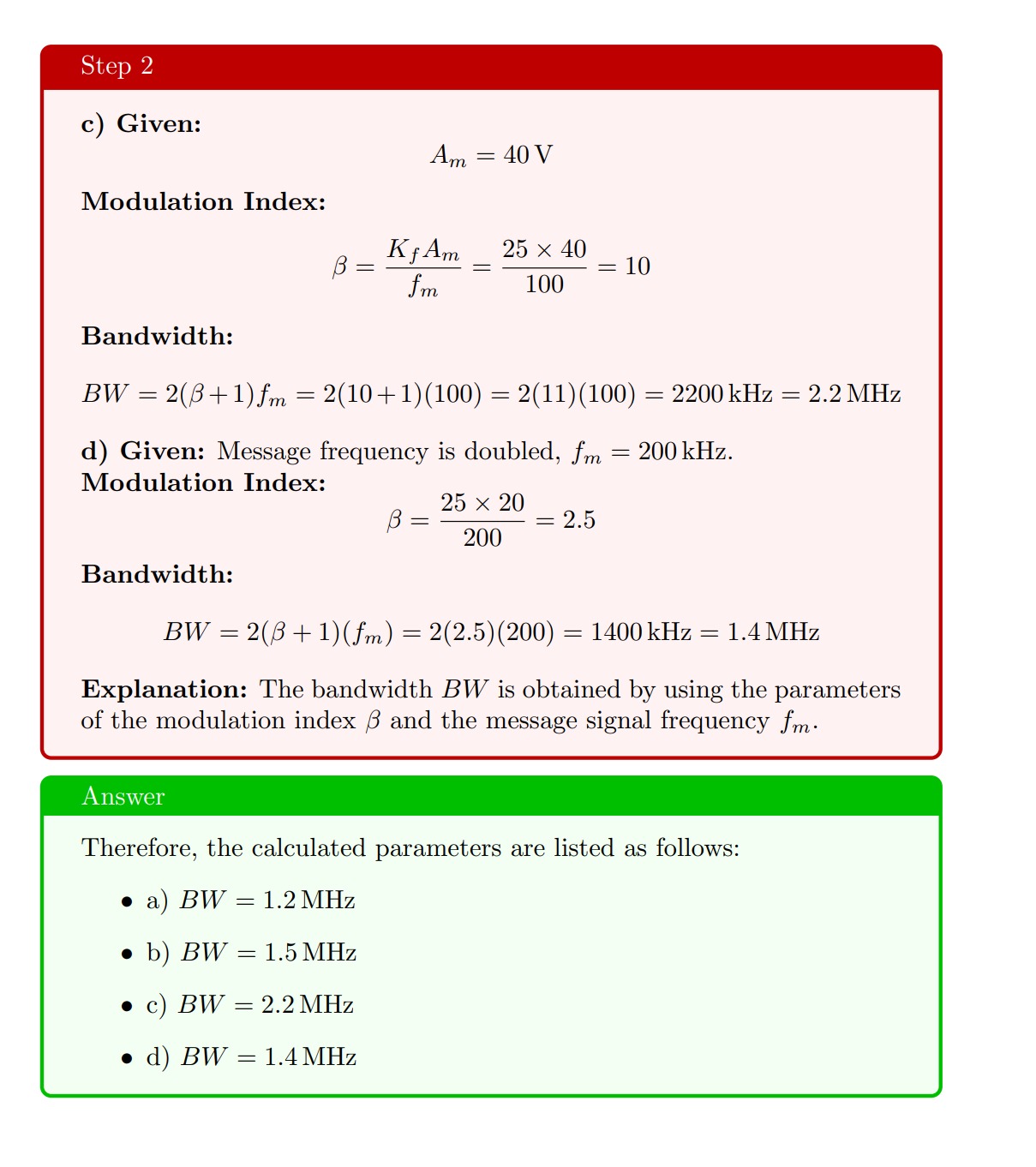

carrier wave of frequency 100MHz is frequency-modulated by a sinusoidal wave of amplitude 20V and frequency of 100kHz. The frequency sensitivity of the modulator is 25kHz/V. (a) Determine the approximate bandwidth of the FM wave using Carson’s rule. (b) Determine the bandwidth obtained by transmitting only those side frequencies with amplitudes that exceed student submitted image, transcription available below a question and you will be sure to find an answer!

Please briefly explain why you feel this question should be reported.

Report

Cancel

carrier wave of frequency 100MHz is frequency-modulated by a sinusoidal wave of amplitude 20V and frequency of 100kHz. The frequency sensitivity of the modulator is 25kHz/V. (a) Determine the approximate bandwidth of the FM wave using Carson’s rule. (b) Determine the bandwidth obtained by transmitting only those side frequencies with amplitudes that exceed

in progress 0

Engineering Boruu Taari 10 months 2024-12-17T09:51:31+05:00 2024-12-17T09:51:31+05:00 1 Answer 9 views Beginner

0
