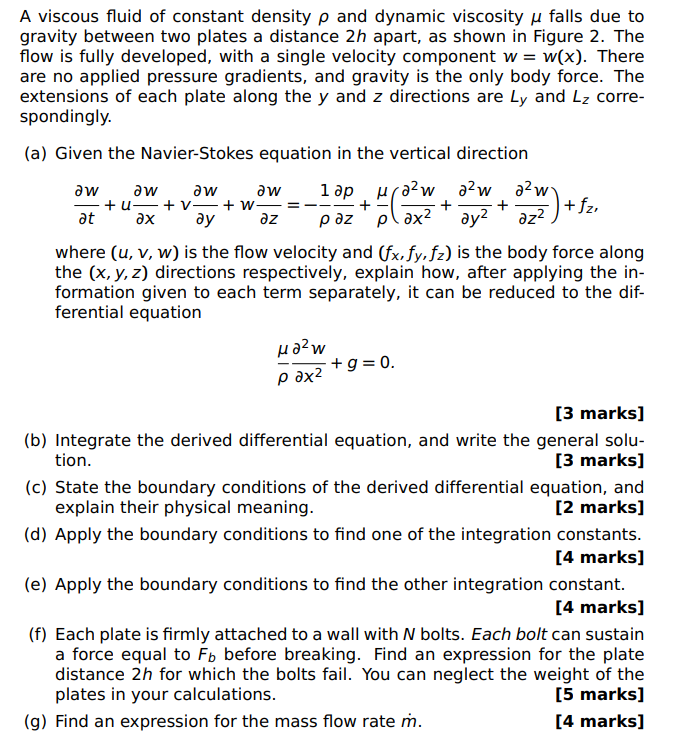

A viscous fluid of constant density ρ and dynamic viscosity μ falls due to gravity between two plates a distance 2h apart, as shown in Figure 2. The flow is fully developed, with a single velocity component  = (). There are no applied pressure gradients, and gravity is the only body force. The extensions of each plate along the y and z directions are Ly and Lz correspondingly.

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
A viscous fluid of constant density ρ and dynamic viscosity μ falls due to gravity between two plates a distance 2h apart, as shown in Figure 2. The flow is fully developed, with a single velocity component  = (). There are no applied pressure gradients, and gravity is the only body force. The extensions of each plate along the y and z directions are Ly and Lz correspondingly.

Fluid mechanics

in progress 0
MJ 2024-12-11T20:49:18+05:00 1 Answer 5 views Beginner
0
MathJax Example

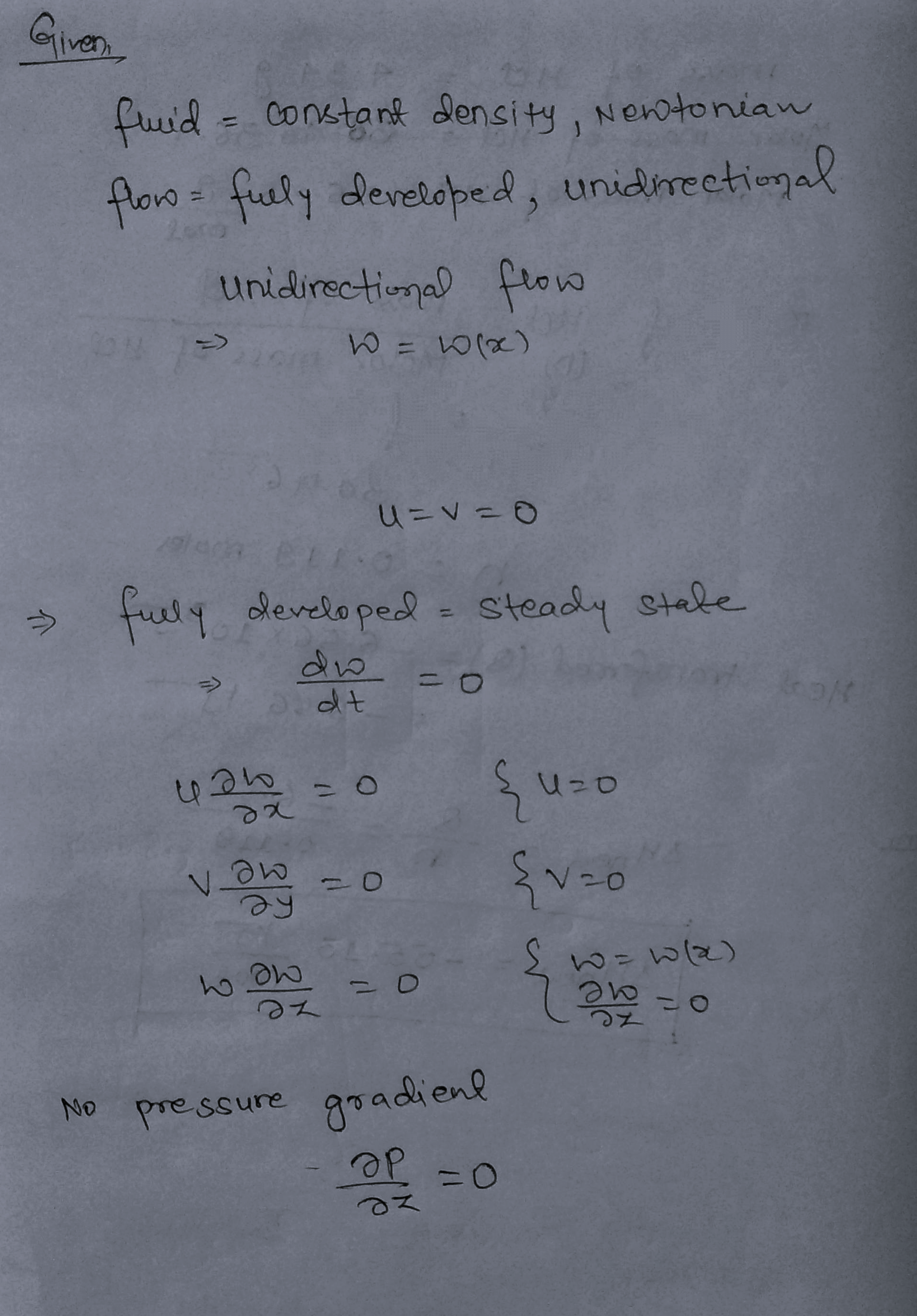

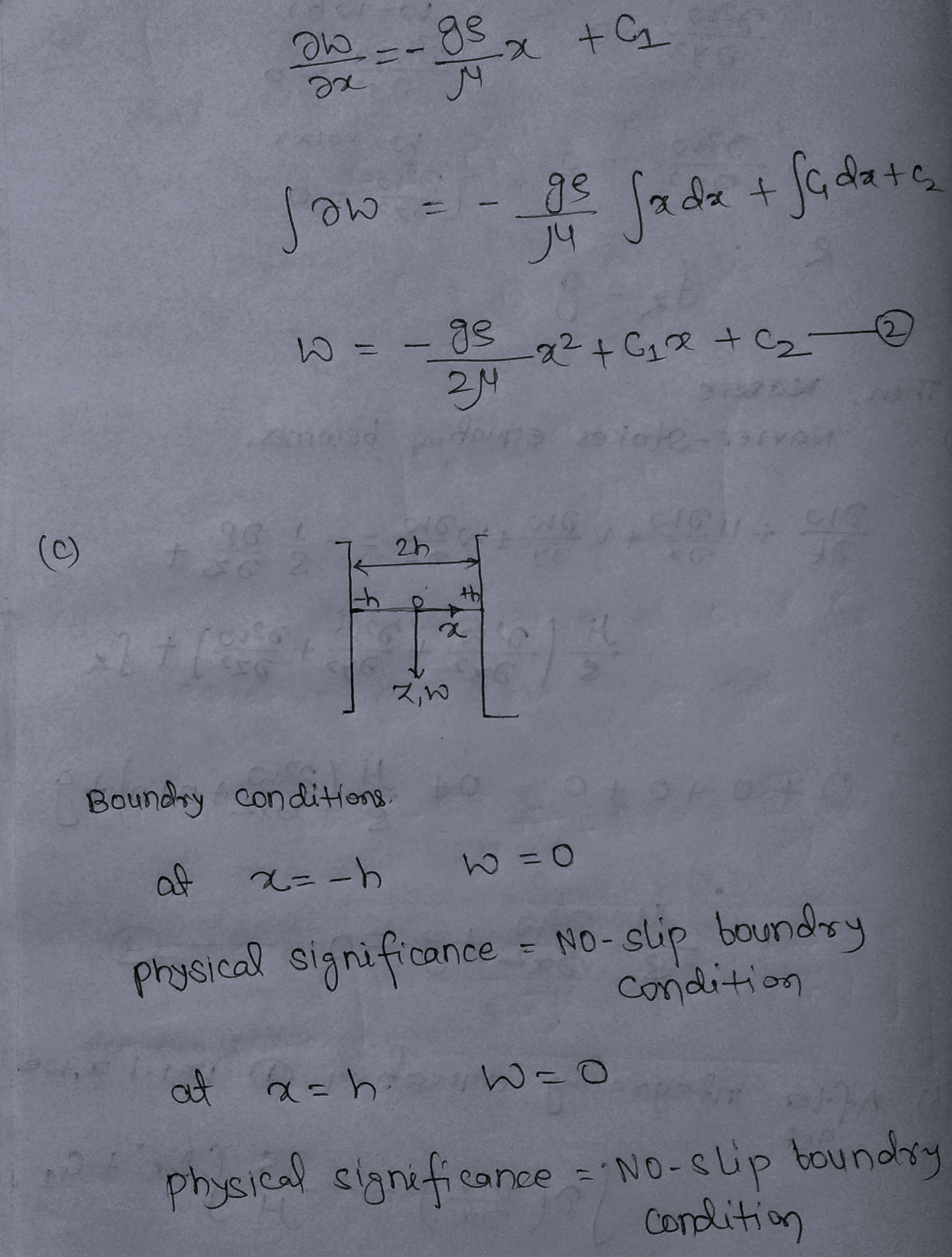

Answer ( 1 )

  1. Mechanical Engineering Expert
    0
    2024-12-12T02:14:21+05:00
