A TE10 mode propagates between two parallel planes separated by a distance of 0.25 m. The planes are lossy and have a conductivity of 5 × 107 S/m. If the maximum electric field strength between the planes is 1000 V/m, determine the power loss per square meter on each plate when the operating frequency is 2 GHz. u will be sure to find an answer!

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel

A TE10 mode propagates between two parallel planes separated by a distance of 0.25 m. The planes are lossy and have a conductivity of 5 × 107 S/m. If the maximum electric field strength between the planes is 1000 V/m, determine the power loss per square meter on each plate when the operating frequency is 2 GHz. u will be sure to find an answer!

MathJax Example

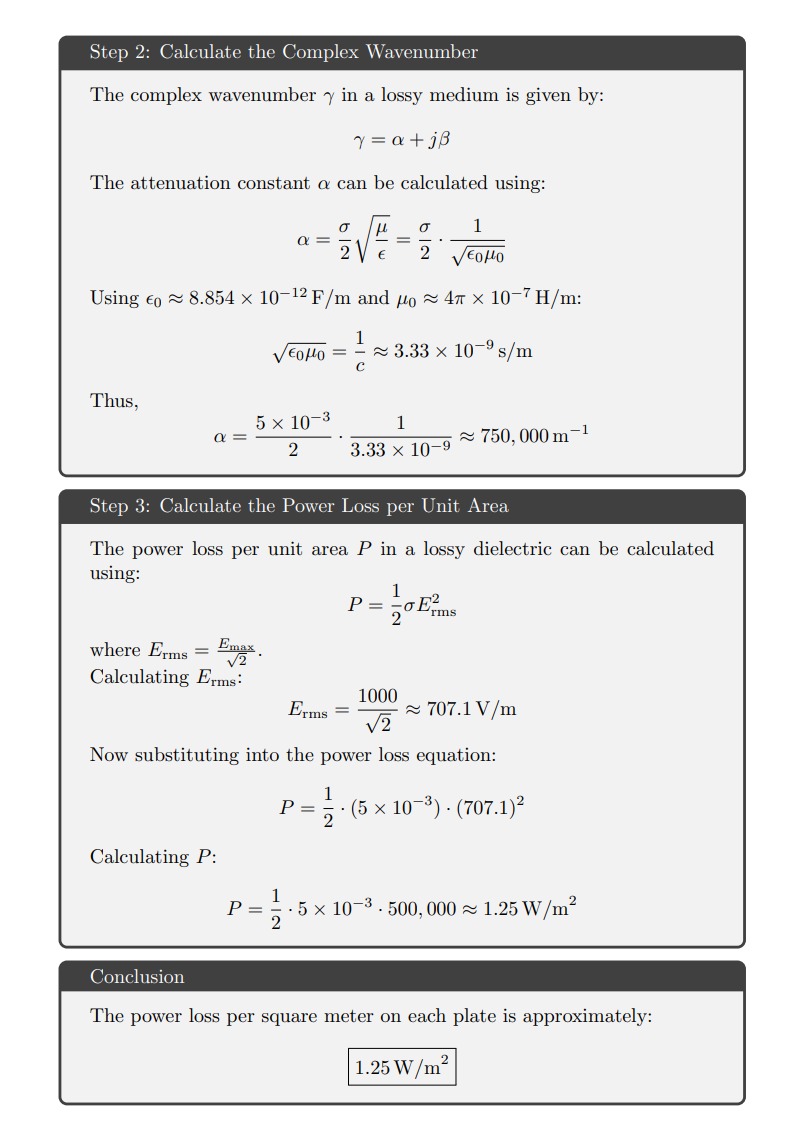

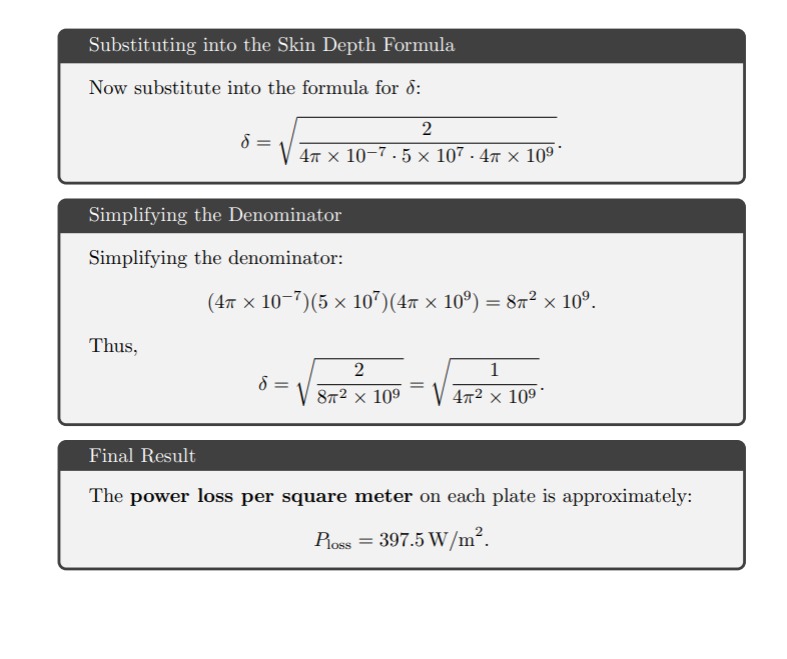

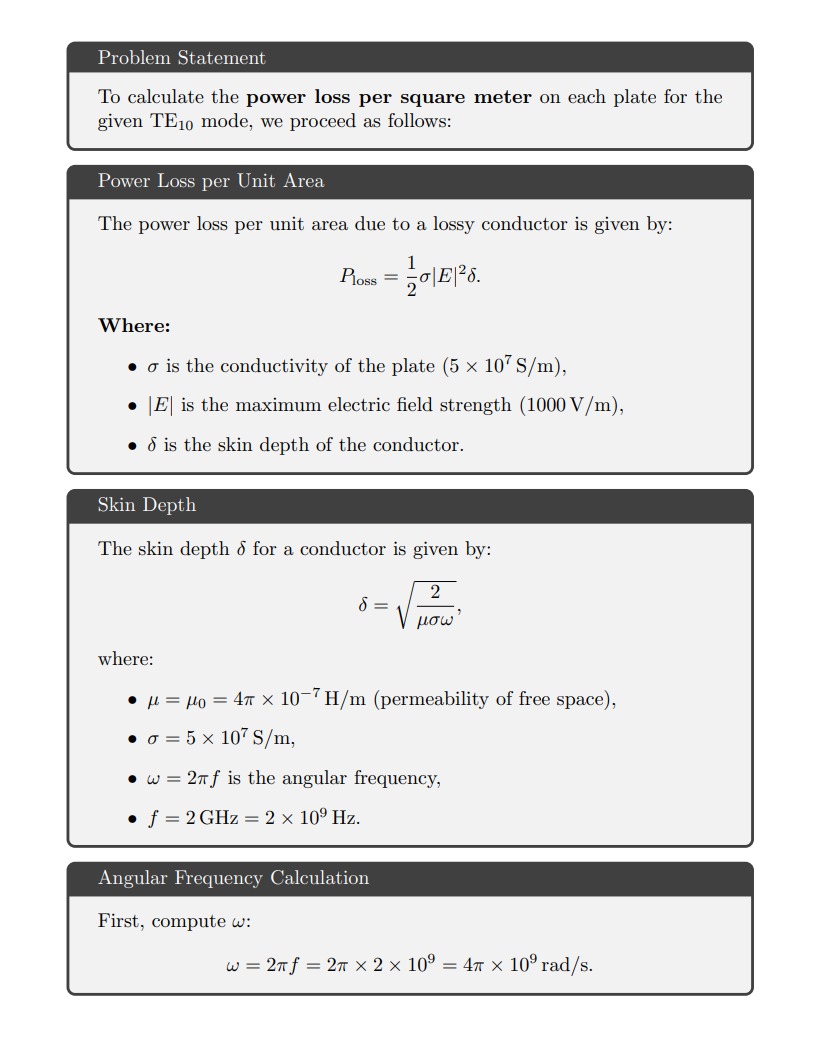

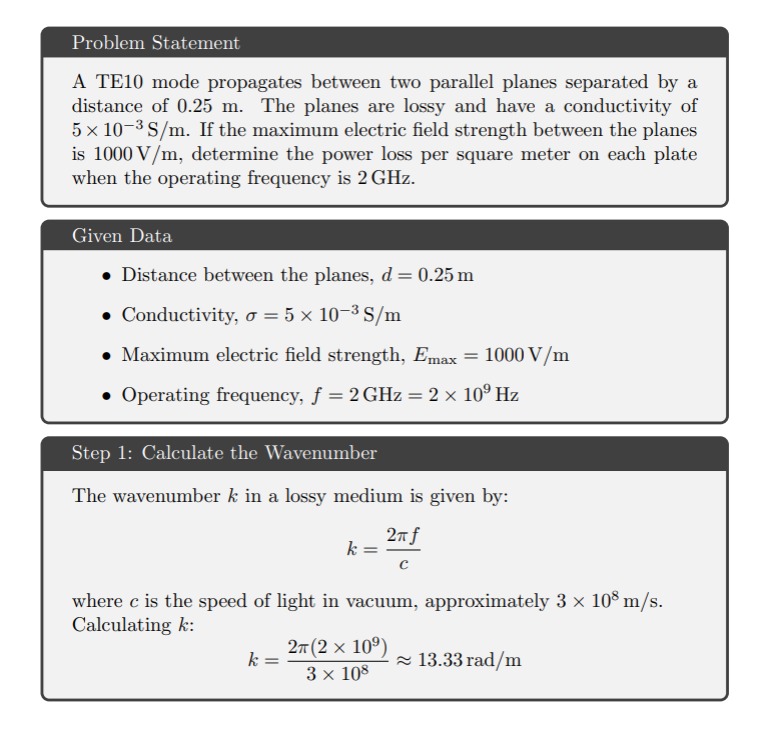

Answers ( 2 )

  1. Please briefly explain why you feel this answer should be reported.

    Report
    Cancel

  2. Please briefly explain why you feel this answer should be reported.

    Report
    Cancel

  3. MathJax Example

Leave an answer
