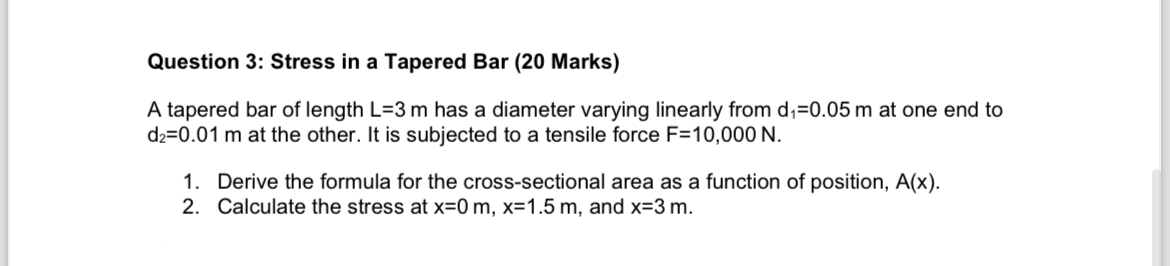

A tapered bar of length L=3 m has a diameter varying linearly from d =0.05 m at one end to dz=0.01 m at the other. It is subjected to a tensile force F=10,000 N.
A tapered bar of length L=3 m has a diameter varying linearly from d =0.05 m at one end to dz=0.01 m at the other. It is subjected to a tensile force F=10,000 N.
1. Derive the formula for the cross-sectional area as a function of position, A(x).

2. Calculate the stress at x=0 m, x=1.5 m, and x=3 m.
in progress 0
Ahmed alhebsi 2025-01-29T14:16:20+05:00 1 Answer 10 views
0
MathJax Example

Answer ( 1 )

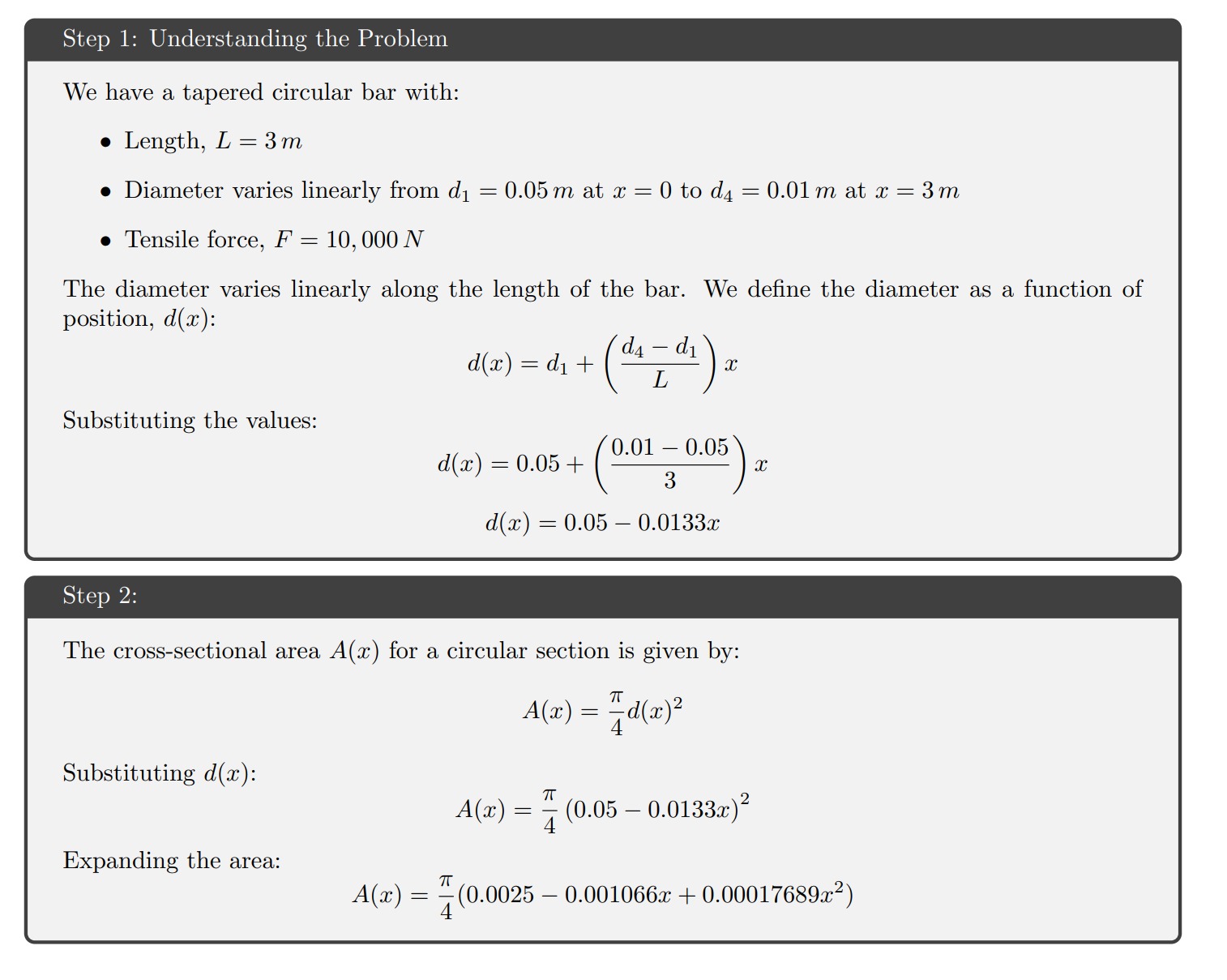

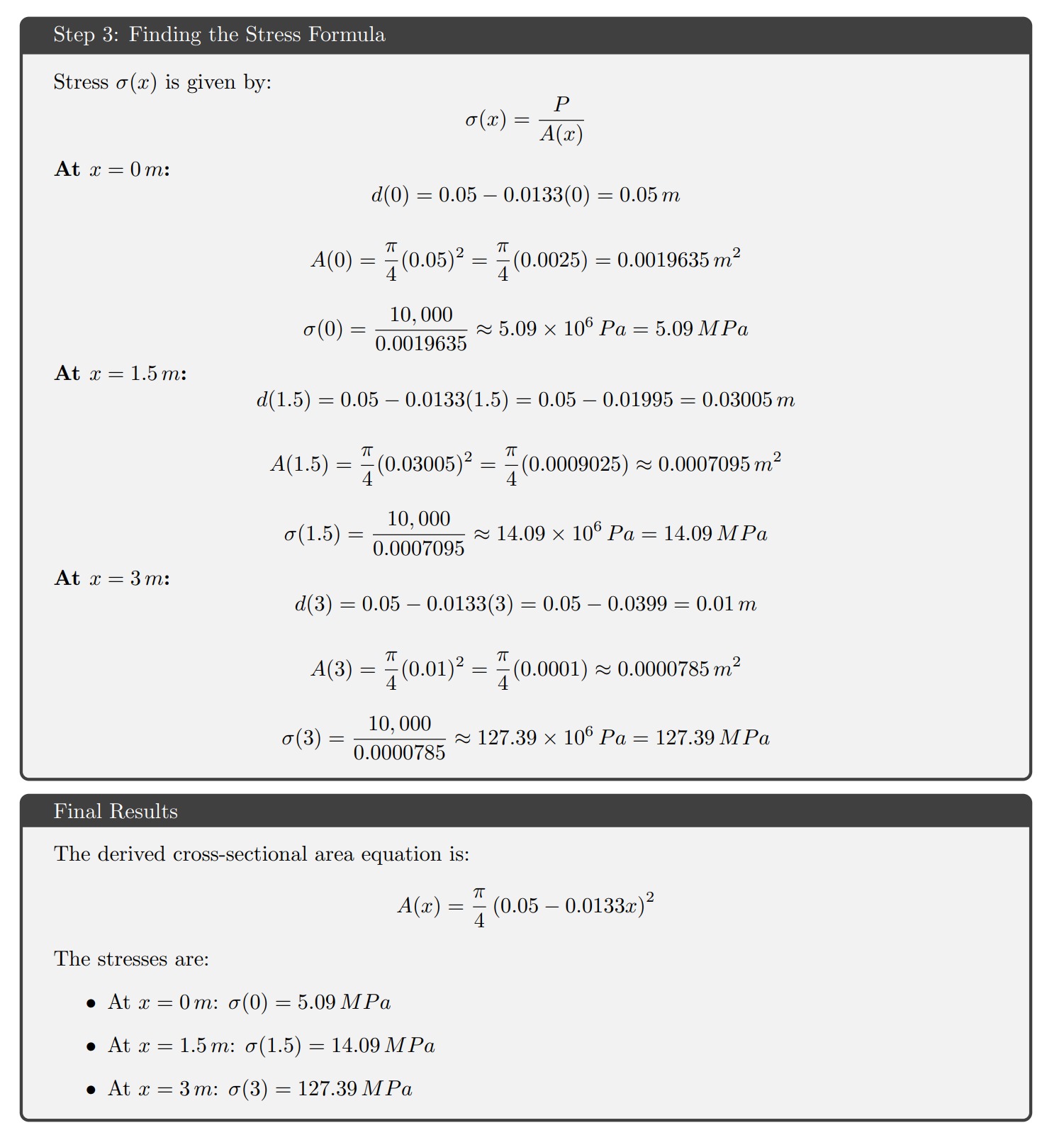

  1. Mechanical Engineering Expert
    0
    2025-01-29T15:30:42+05:00
