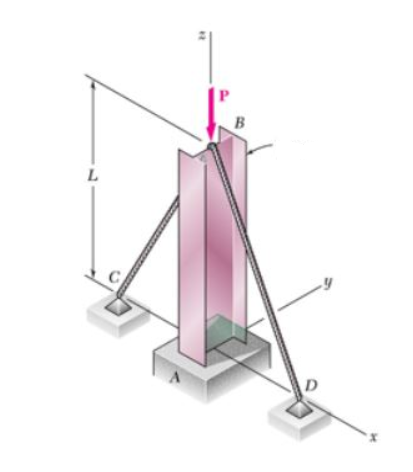

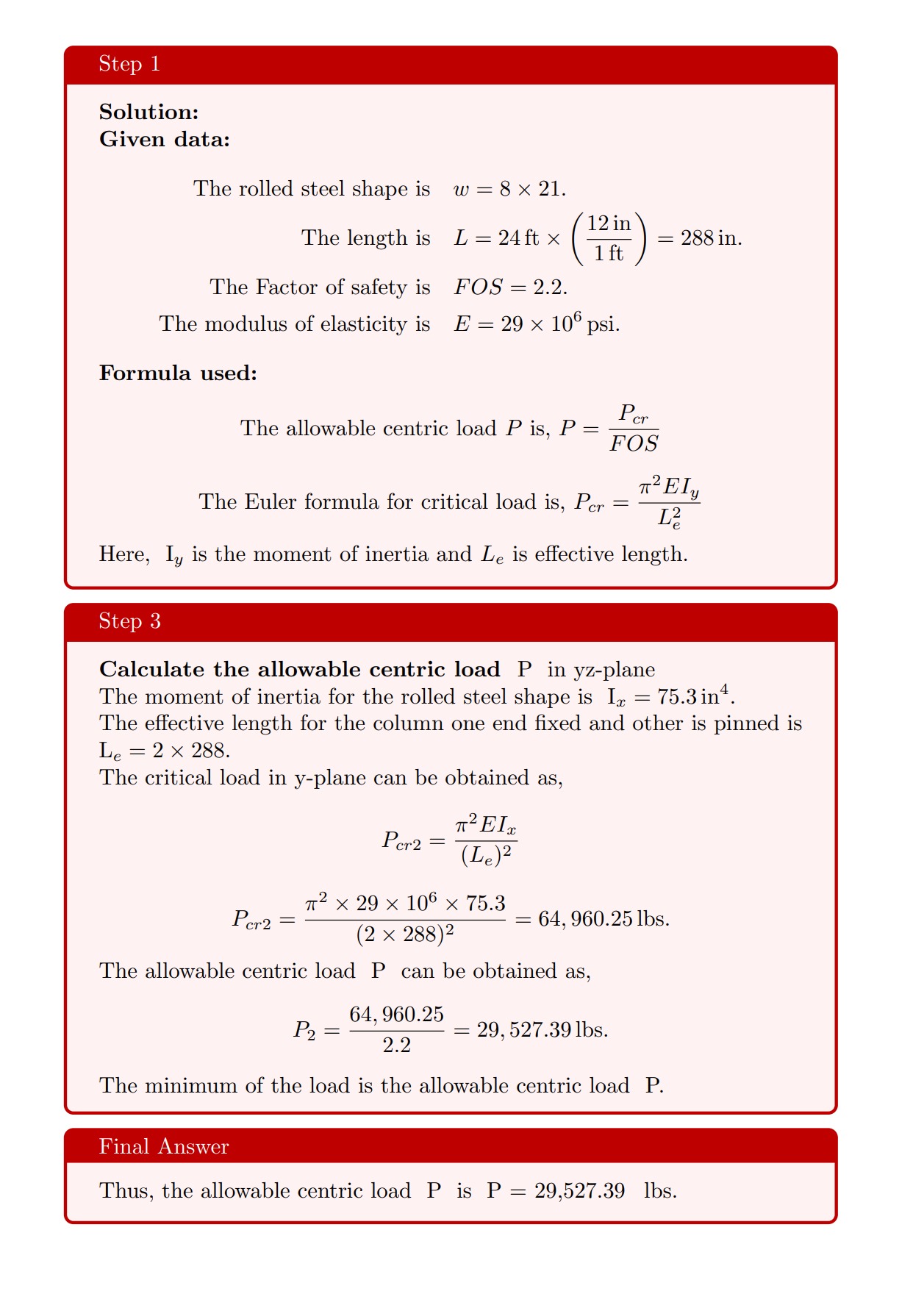

A rolled-steel shape is used with the support and cable arrangement shown. Cables BC and BD are taught and prevent motion of point B in the xz plane. Knowing that L=5 m, determine the allowable centric load P. Use E = 70 GPa, Ix = 50×10^6 mm^4, Iy = 5×10^6 mm^4
