A power plant has three generating units each rated at 7500 KVA with 15% reactance. The plant is protected by a tie-bar system. With reactances rated at 7500 MVA and 6%, determine the fault KVA when a short circuit occurs on one of the sections of bus bars. If the reactors were not present what would be the fault KVA

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
A power plant has three generating units each rated at 7500 KVA with 15% reactance. The plant is protected by a tie-bar system. With reactances rated at 7500 MVA and 6%, determine the fault KVA when a short circuit occurs on one of the sections of bus bars. If the reactors were not present what would be the fault KVA

A power plant has three generating units each rated at 7500 KVA with 15% reactance. The plant is protected by a tie-bar system. With reactances rated at 7500 MVA and 6%, determine the fault KVA when a short circuit occurs on one of the sections of bus bars. If the reactors were not present what would be the fault KVA

in progress 0
harryp 2024-12-07T12:07:41+05:00 1 Answer 6 views Beginner
0
MathJax Example

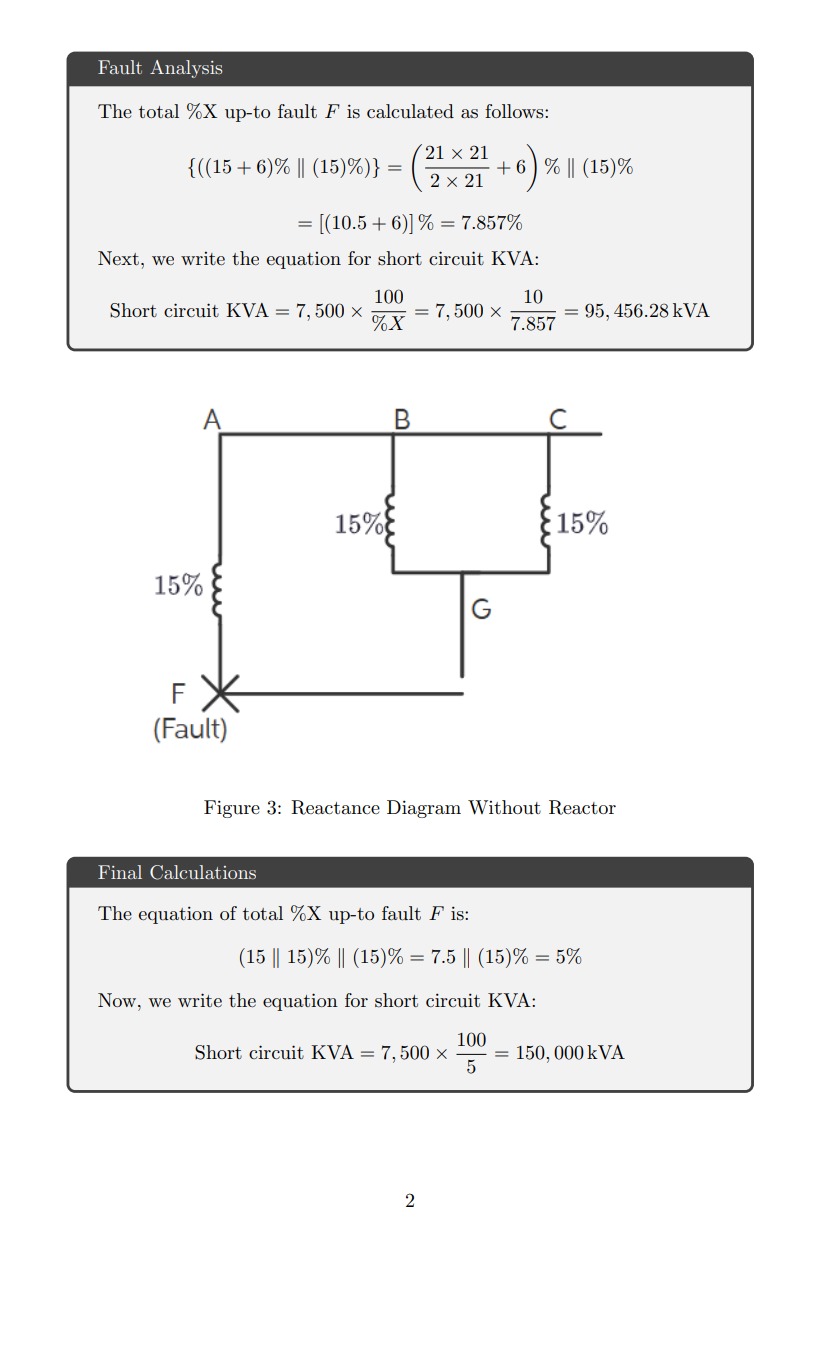

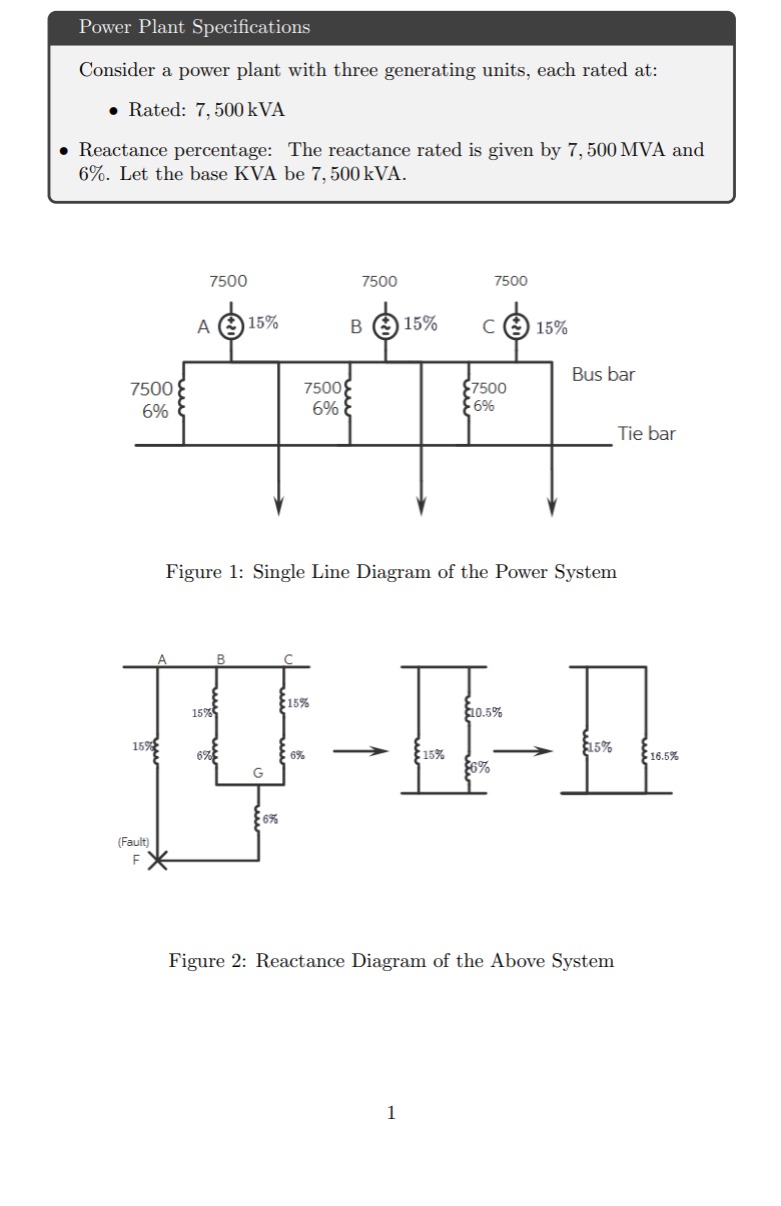

Answer ( 1 )

  1. Mechanical Engineering Expert
    0
    2024-12-07T12:46:35+05:00
