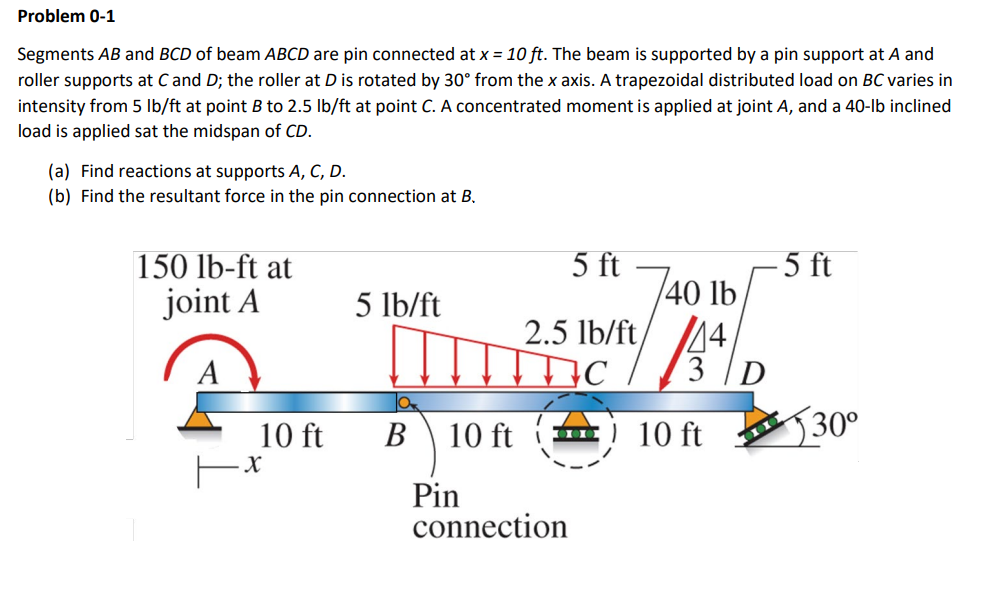

A plane frame has a pin support at A and roller supports at C and E. Frame segments ABD and CDEF are joint just left of joint D by a pin connection. (a) Find reactions at supports A, C, and E. (b) Find the resultant force in the pin just left of D.

A plane frame has a pin support at A and roller supports at C and E. Frame segments ABD and CDEF are joint just left of
joint D by a pin connection.
(a) Find reactions at supports A, C, and E.
(b) Find the resultant force in the pin just left of D.

in progress 0
Gautamnadia 2025-01-23T20:31:45+05:00 1 Answer 16 views
0
MathJax Example

Answer ( 1 )

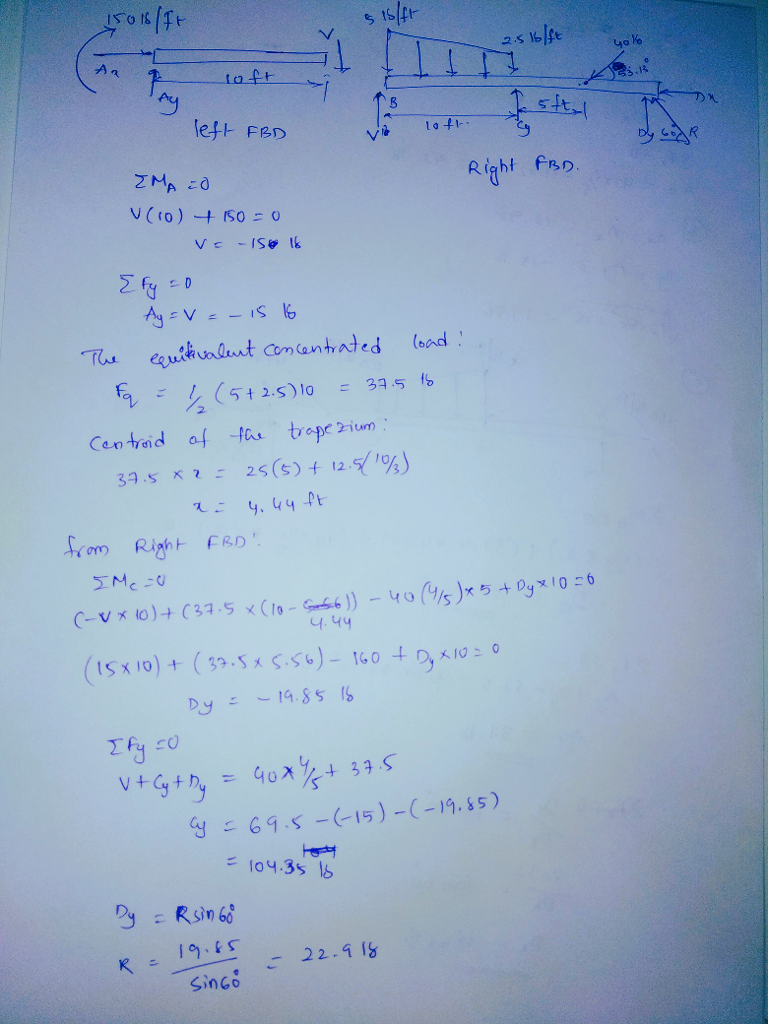

  1. Mechanical Engineering Expert
    0
    2025-01-23T21:19:40+05:00
