A beam with cross-section shown is subjected to a moment M, which has a magnitude of 20 kN-m. The resisting moment M. on the cross-section is in the direction shown in the figure. Determine the following: (d) The flexural stress at point A (e) The orientation of the neutral axis (show its location on a sketch of the cross section) (a) The maximum tensile and compressive flexural stresses in the beam.

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
A beam with cross-section shown is subjected to a moment M, which has a magnitude of 20 kN-m. The resisting moment M. on the cross-section is in the direction shown in the figure. Determine the following: (d) The flexural stress at point A (e) The orientation of the neutral axis (show its location on a sketch of the cross section) (a) The maximum tensile and compressive flexural stresses in the beam.

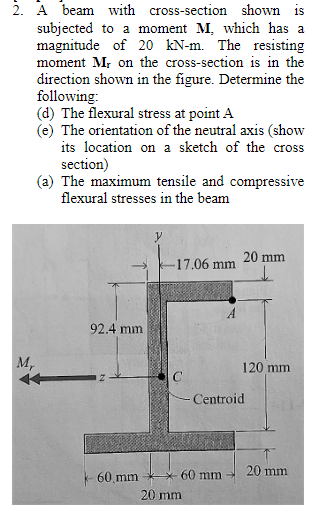

A beam with cross-section shown is subjected to a moment M, which has a magnitude of 20 kN-m. The resisting moment M. on the cross-section is in the direction shown in the figure. Determine the following:

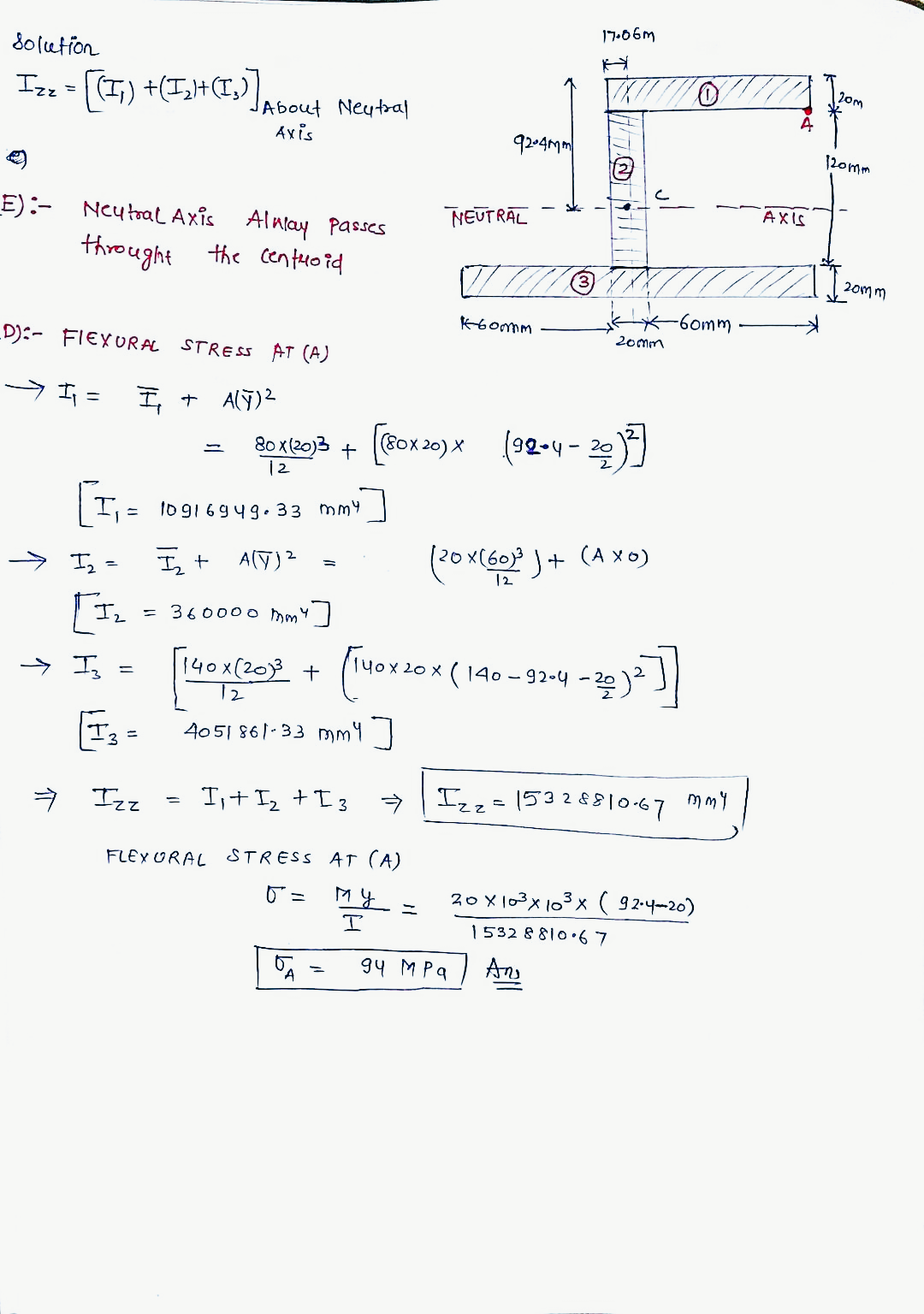

(d) The flexural stress at point A

(e) The orientation of the neutral axis (show its location on a sketch of the cross section)

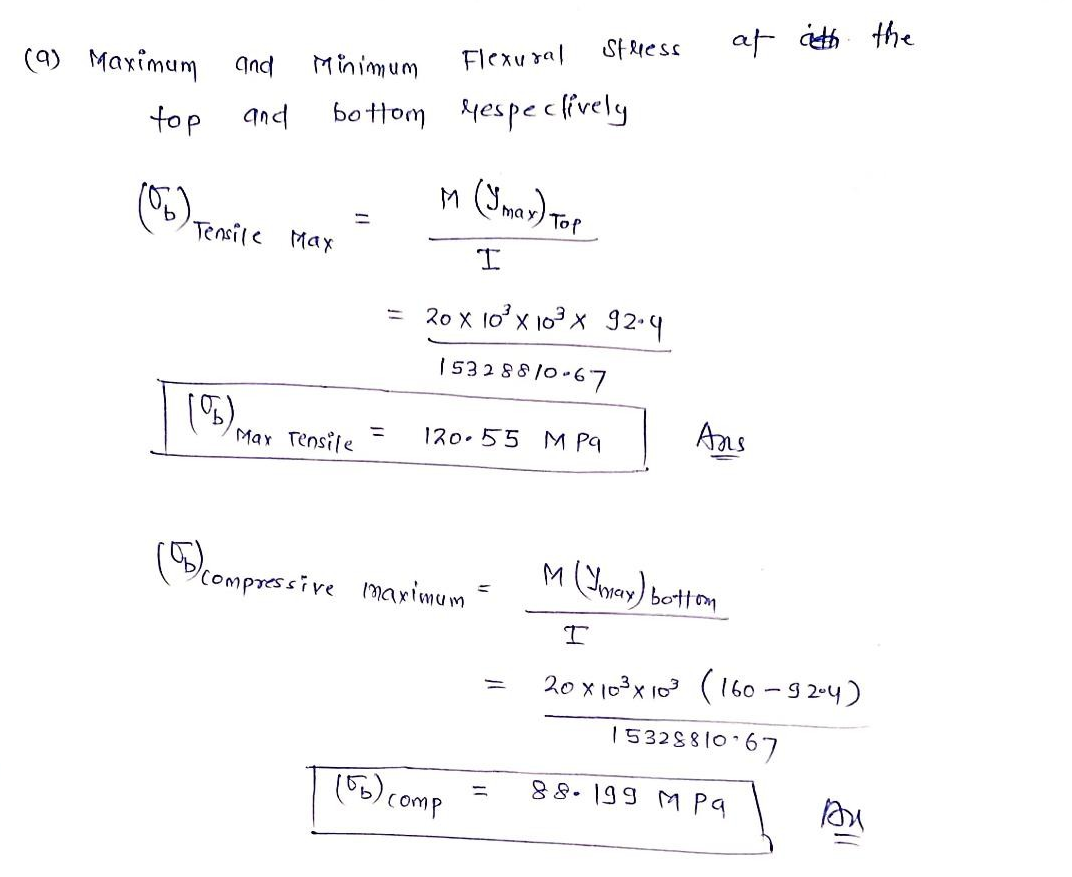

(a) The maximum tensile and compressive flexural stresses in the beam


Attachment
in progress 0
Ghulam Mustafa 2024-12-28T01:17:37+05:00 1 Answer 14 views Beginner
