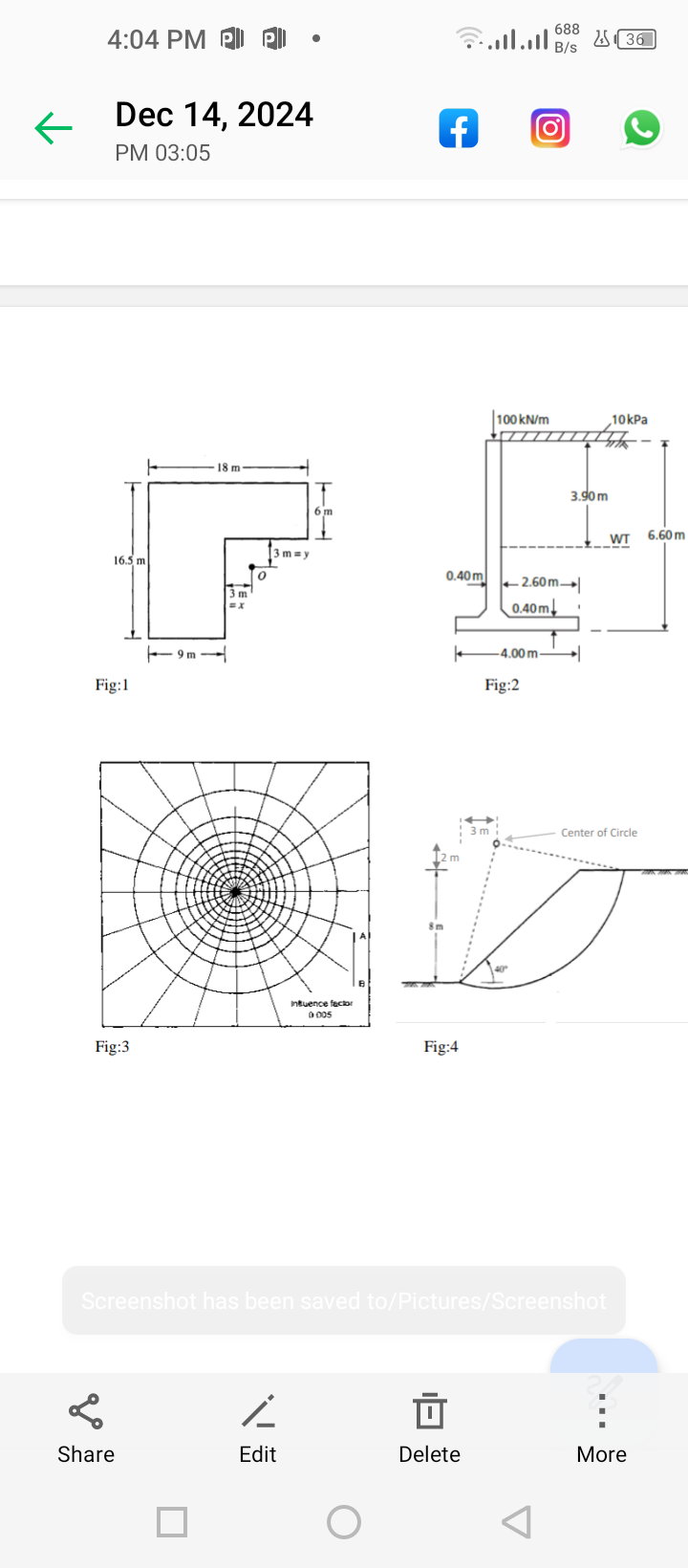

A 40° slope is excavated to a depth of 8 m in a deep layer of saturated clay having strength parameters c = 95 kN/m2, Ø= 0, and y = 20 kN/m³. Determine the factor of safety for the trial failure surface shown in Fig. 4. Use scale of 1 cm = 1 m.

Please briefly explain why you feel this question should be reported.

Report

Cancel

A 40° slope is excavated to a depth of 8 m in a deep layer of saturated clay having strength parameters c = 95 kN/m2, Ø= 0, and y = 20 kN/m³. Determine the factor of safety for the trial failure surface shown in Fig. 4.

Use scale of 1 cm = 1 m.

Attachment

in progress 0

Engineering Ghulam Mustafa 9 months 2024-12-15T16:32:59+05:00 2024-12-15T16:32:59+05:00 1 Answer 8 views Beginner
