*5–16. Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb.

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
*5–16. Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb.

*5–16. Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb.

in progress 0
Mechanical Engineering Expert 2025-01-18T17:04:33+05:00 1 Answer 5 views Enlightened
0
MathJax Example

Answer ( 1 )

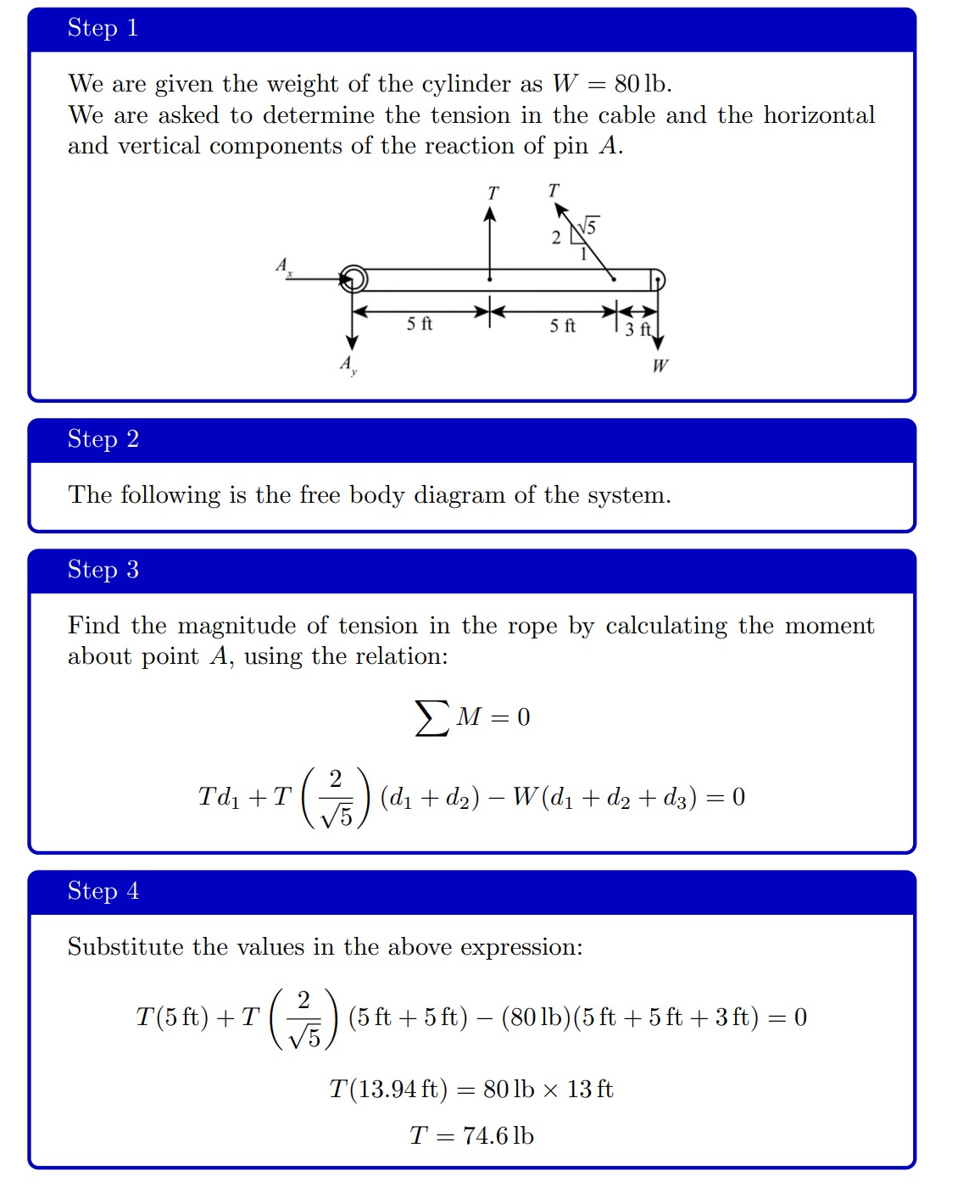

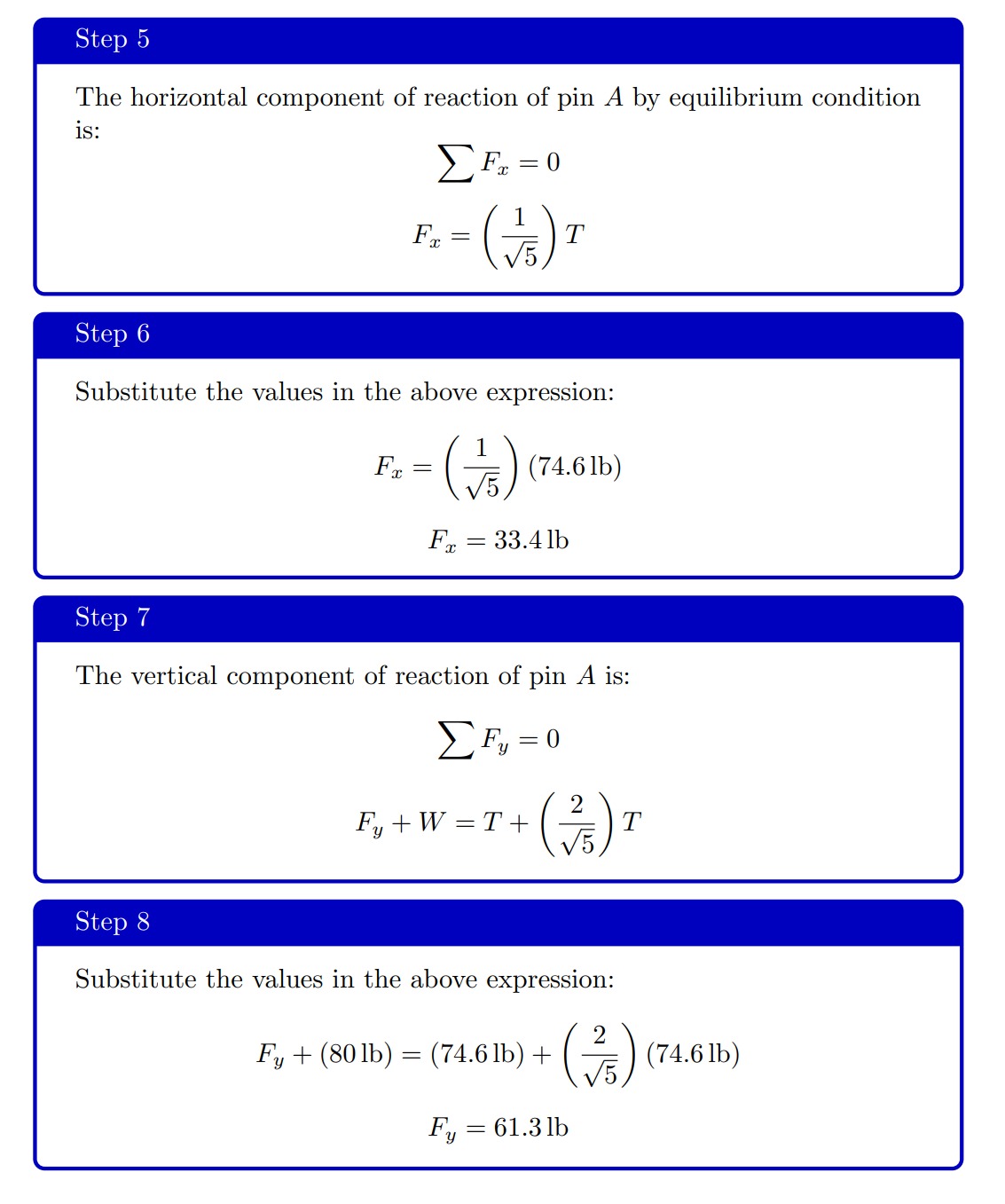

  1. Mechanical Engineering Expert
    0
    2025-01-18T17:07:12+05:00
