4. The water table is located beloe the base of a rigid retaining wall 5 m high. The wall supports a backfill of cohesionless soil with 0= 30°. The backfill is dry and has a unit weight of 18 kN/m’. Determine Rankine’s passive earth pressure per meter length of the wall (Fig. Q4). WAV/AVAVIAN y = 18 kN/m = 30° 5 m Sand Figure 04

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
4. The water table is located beloe the base of a rigid retaining wall 5 m high. The wall supports a backfill of cohesionless soil with 0= 30°. The backfill is dry and has a unit weight of 18 kN/m’. Determine Rankine’s passive earth pressure per meter length of the wall (Fig. Q4). WAV/AVAVIAN y = 18 kN/m = 30° 5 m Sand Figure 04

The water table is located beloe the base of a rigid retaining wall 5 m high. The wall supports a backfill of cohesionless soil with 0= 30°. The backfill is dry and has a unit weight of 18 kN/m’. Determine Rankine’s passive earth pressure per meter length of the wall (Fig. Q4). WAV/AVAVIAN y = 18 kN/m = 30° 5 m Sand Figure 04

in progress 0
Yugiske 2025-02-11T21:05:48+05:00 1 Answer 24 views Beginner
0
MathJax Example

Answer ( 1 )

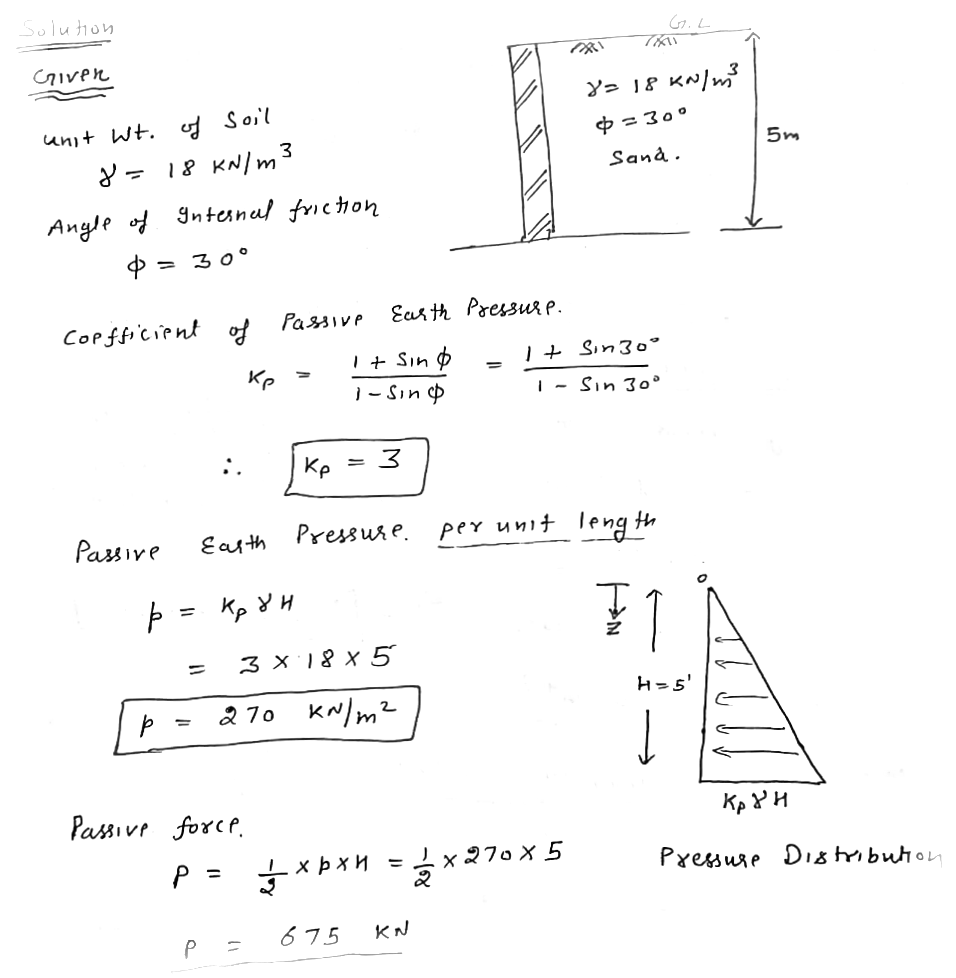

  1. Mechanical Engineering Expert
    0
    2025-02-11T21:12:56+05:00
