4. In an ideal Diesel cycle the volume ratios of the adiabatic expansion and compression are 8:1 and 15:1, respectively. The pressure and temperature at the beginning of compression are 95 kN/m² and 45°C, respectively. The pressure at the end of the adiabatic expansion is 260 kN/m². Determine

Report
Question

Please briefly explain why you feel this question should be reported.

Report
Cancel
4. In an ideal Diesel cycle the volume ratios of the adiabatic expansion and compression are 8:1 and 15:1, respectively. The pressure and temperature at the beginning of compression are 95 kN/m² and 45°C, respectively. The pressure at the end of the adiabatic expansion is 260 kN/m². Determine

4. In an ideal Diesel cycle the volume ratios of the adiabatic expansion and compression are 8:1 and 15:1, respectively. The pressure and temperature at the beginning of compression are 95 kN/m² and 45°C, respectively. The pressure at the end of the adiabatic expansion is 260 kN/m². Determine
a. cut-off ratio (02 marks) b. the maximum temperature attained during the cycle

C the thermal efficiency of the cycle

Take y = 1.4

in progress 0
Ahmed alhebsi 2024-11-29T02:51:27+05:00 1 Answer 14 views
0
MathJax Example

Answer ( 1 )

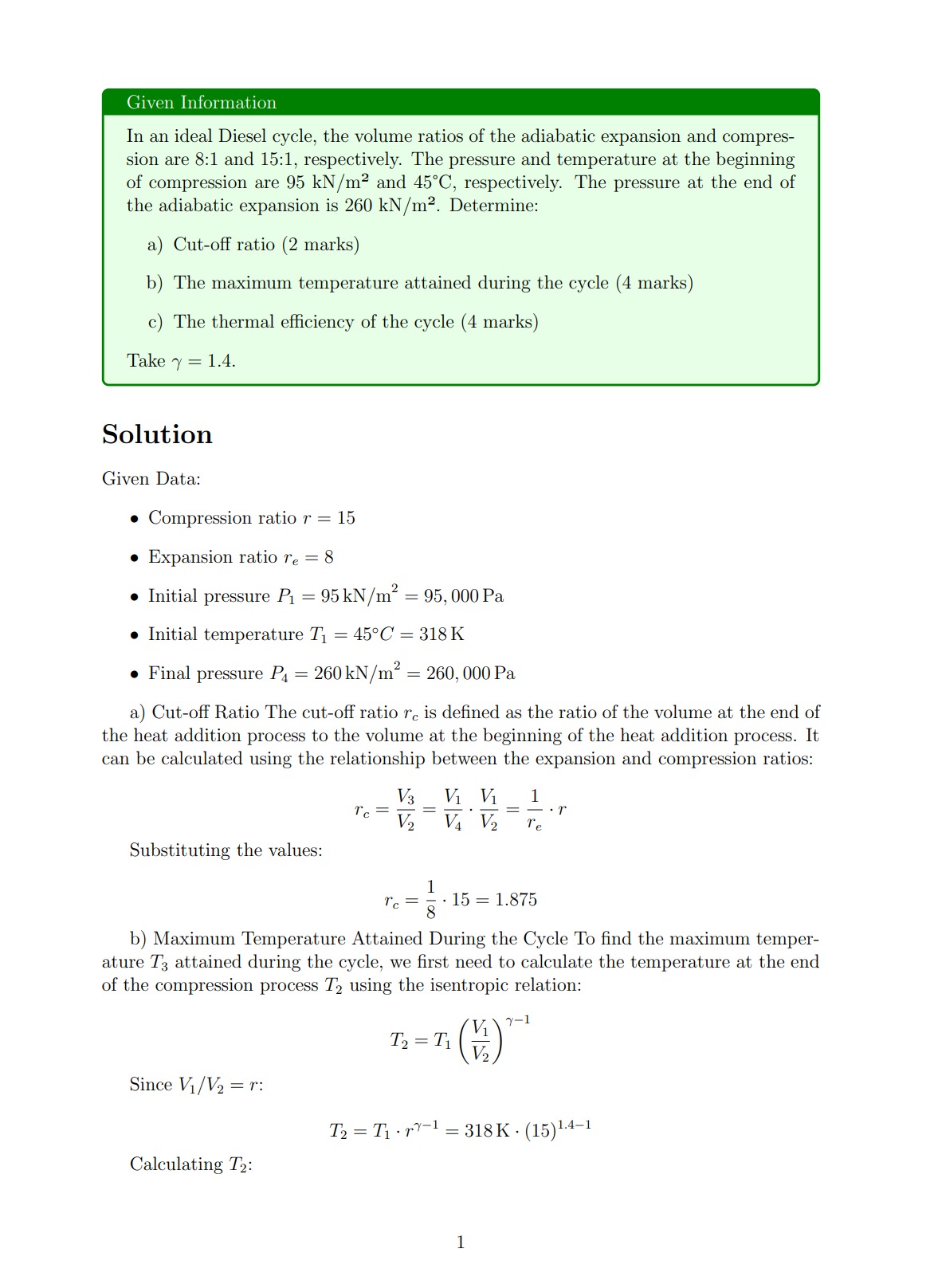

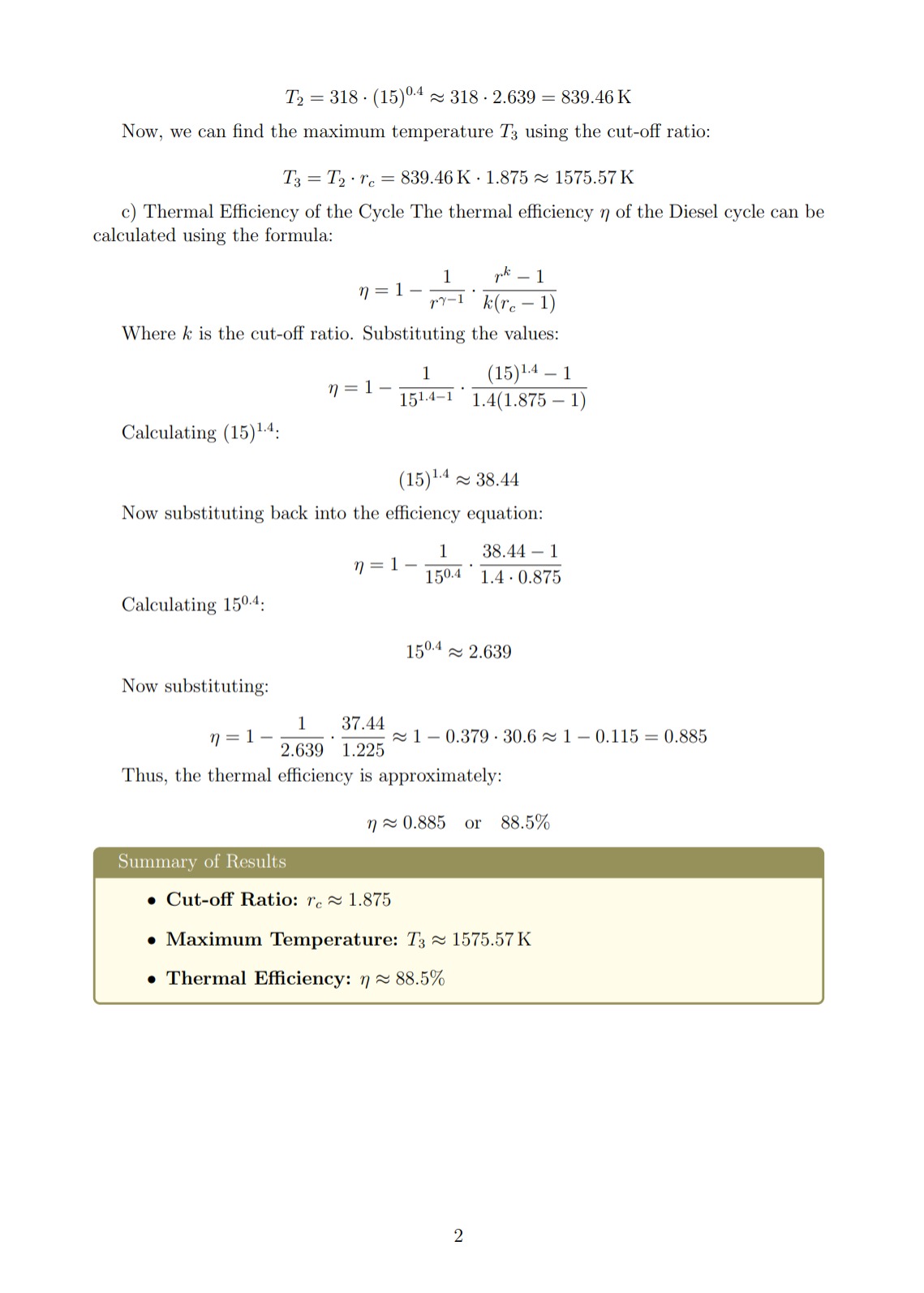

  1. Mechanical Engineering Expert
    0
    2024-11-29T02:55:18+05:00
