3. Printwheel system with belts and pulleys is shown in Figure below 3.1 Write the differential equations of the system using ( theta_{mathrm{m}} ) and ( y ) as the dependent variable 3.2 Write the state equations using ( x_{1}=r theta_{m}-y, x_{2}=d y / d t, x_{3}=d theta_{m} / d t ) as state variables 3.3 Draw a state-flow diagram for the system 3.4 Find the transfer function ( mathrm{Y}(mathrm{s}) / mathrm{Tm}(mathrm{s}) ). 3.5 Find the characteristic equation of the system
ReportQuestion
Please briefly explain why you feel this question should be reported.
Printwheel system with belts and pulleys is shown in Figure below 3.1 Write the differential equations of the system using \( \theta_{\mathrm{m}} \) and \( y \) as the dependent variable 3.2 Write the state equations using \( x_{1}=r \theta_{m}-y, x_{2}=d y / d t, x_{3}=d \theta_{m} / d t \) as state variables 3.3 Draw a state-flow diagram for the system 3.4 Find the transfer function \( \mathrm{Y}(\mathrm{s}) / \mathrm{Tm}(\mathrm{s}) \). 3.5 Find the characteristic equation of the system
Answer ( 1 )
Please briefly explain why you feel this answer should be reported.

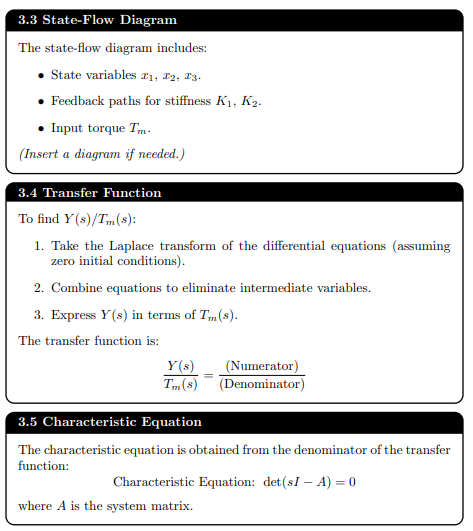

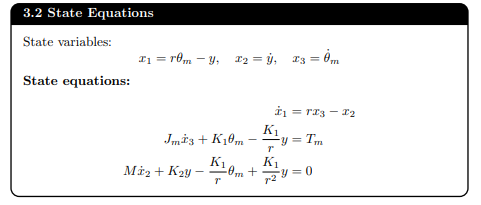

Answer is attached
