The following figure is a billboard sketch, design the members. Hint, the billboard is usually designed against wind loads and its own self weight. For the dimensions, you can visit existing billboards to see usual dimensions.
The following figure is a billboard sketch, design the members. Hint, the billboard is usually designed against wind loads and its own self weight. For the dimensions, you can visit existing billboards to see usual dimensions.

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
Anonymous 5 months 1 Answer 17 views

Report
Question

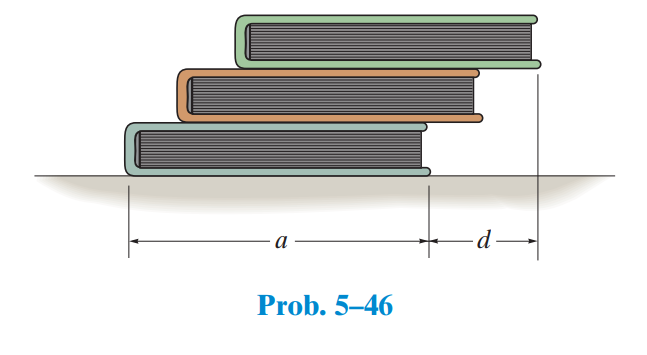

5–46. Three uniform books, each having a weight W and length a, are stacked as shown. Determine the maximum distance d that the top book can extend out from the bottom one so the stack does not topple over.
5–46. Three uniform books, each having a weight W and length a, are stacked as shown. Determine the maximum distance d that the top book can extend out from the bottom one so the stack does not topple over.

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
6 months 1 Answer 6 views

Report
Question

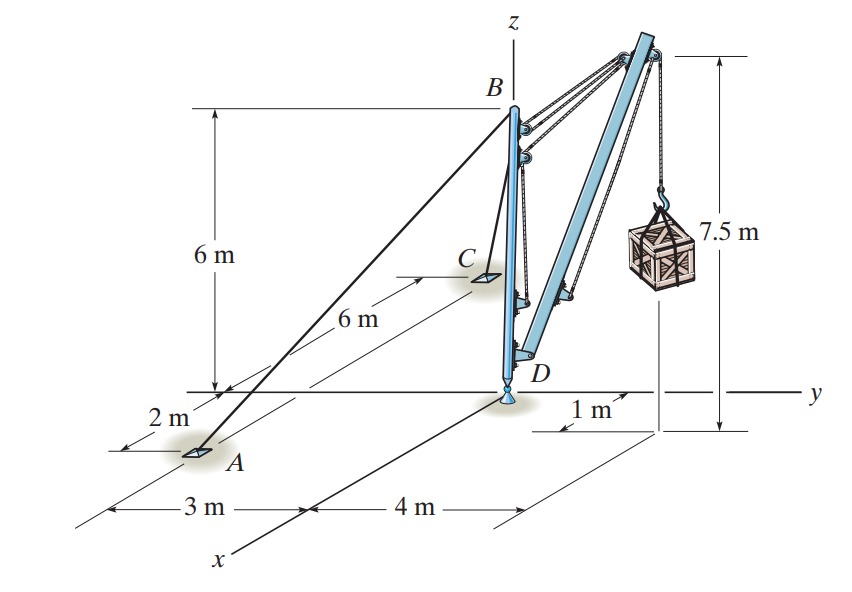

5–70. The stiff-leg derrick used on ships is supported by a ball-and-socket joint at D and two cables BA and BC. The cables are attached to a smooth collar ring at B, which allows rotation of the derrick about z axis. If the derrick supports a crate having a mass of 200 kg, determine the tension in the cables and the x, y, z components of reaction at D.
5–70. The stiff-leg derrick used on ships is supported by a ball-and-socket joint at D and two cables BA and BC. The cables are attached to a smooth collar ring at B, which allows rotation of the derrick about z ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
6 months 2 Answers 17 views Enlightened

Report
Question

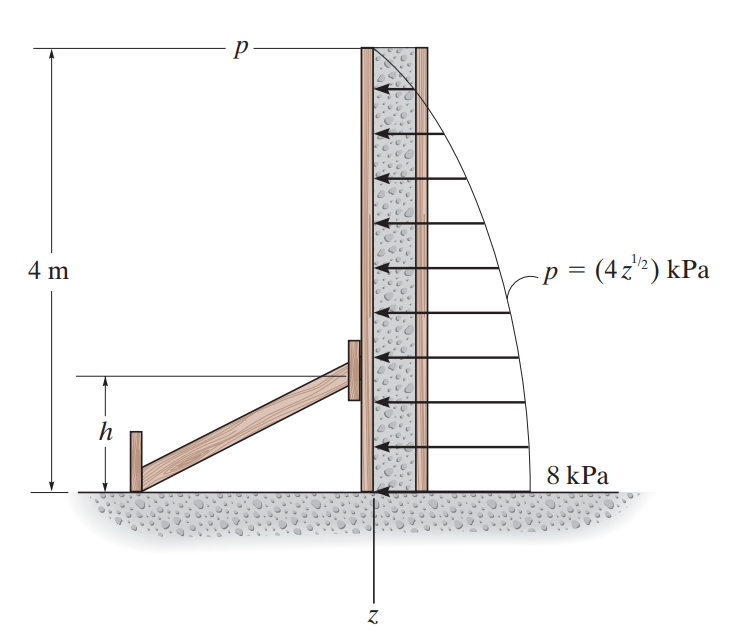

4–162. Wet concrete exerts a pressure distribution along the wall of the form. Determine the resultant force of this distribution and specify the height h where the bracing strut should be placed so that it lies through the line of action of the resultant force. The wall has a width of 5 m.
4–162. Wet concrete exerts a pressure distribution along the wall of the form. Determine the resultant force of this distribution and specify the height h where the bracing strut should be placed so that it lies through the line of ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
6 months 1 Answer 11 views Enlightened

Report
Question

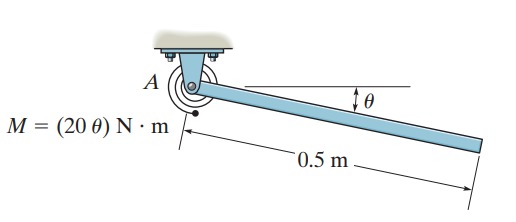

*5–28. A linear torsional spring deforms such that an applied couple moment M is related to the spring’s rotation u in radians by the equation M = (20 u) N # m. If such a spring is attached to the end of a pin-connected uniform 10-kg rod, determine the angle u for equilibrium. The spring is undeformed when u = 0°.
*5–28. A linear torsional spring deforms such that an applied couple moment M is related to the spring’s rotation u in radians by the equation M = (20 u) N . m. If such a spring is attached to the ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
6 months 1 Answer 11 views Enlightened
