5–25. Determine the reactions on the bent rod which is supported by a smooth surface at B and by a collar at A, which is fixed to the rod and is free to slide over the fixed inclined rod
5–25. Determine the reactions on the bent rod which is supported by a smooth surface at B and by a collar at A, which is fixed to the rod and is free to slide over the fixed inclined rod

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
8 months 1 Answer 20 views Enlightened

Report
Question
*5–24. The relay regulates voltage and current. Determine the force in the spring CD, which has a stiffness of k = 120 N>m, so that it will allow the armature to make contact at A in figure (a) with a vertical force of 0.4 N. Also, determine the force in the spring when the coil is energized and attracts the armature to E, figure (b), thereby breaking contact at A.
*5–24. The relay regulates voltage and current. Determine the force in the spring CD, which has a stiffness of k = 120 N/m, so that it will allow the armature to make contact at A in figure (a) with a ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
8 months 1 Answer 17 views Enlightened

Report
Question
5–23. If the roller at A and the pin at B can support a load up to 4 kN and 8 kN, respectively, determine the maximum intensity of the distributed load w, measured in kN>m, so that failure of the supports does not occur.
5–23. If the roller at A and the pin at B can support a load up to 4 kN and 8 kN, respectively, determine the maximum intensity of the distributed load w, measured in kN/m, so that failure of the ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
8 months 1 Answer 12 views Enlightened

Report
Question
*5–20. A uniform glass rod having a length L is placed in the smooth hemispherical bowl having a radius r. Determine the angle of inclination u for equilibrium.
*5–20. A uniform glass rod having a length L is placed in the smooth hemispherical bowl having a radius r. Determine the angle of inclination u for equilibrium.

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
8 months 1 Answer 19 views Enlightened

Report
Question
5–19. The man has a weight W and stands at the center of the plank. If the planes at A and B are smooth, determine the tension in the cord in terms of W and u.
5–19. The man has a weight W and stands at the center of the plank. If the planes at A and B are smooth, determine the tension in the cord in terms of W and u.

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
8 months 1 Answer 13 views Enlightened

Report
Question
5–17. The man attempts to support the load of boards having a weight W and a center of gravity at G. If he is standing on a smooth floor, determine the smallest angle u at which he can hold them up in the position shown. Neglect his weight.
5–17. The man attempts to support the load of boards having a weight W and a center of gravity at G. If he is standing on a smooth floor, determine the smallest angle u at which he can hold them ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
8 months 1 Answer 13 views Enlightened

Report
Question

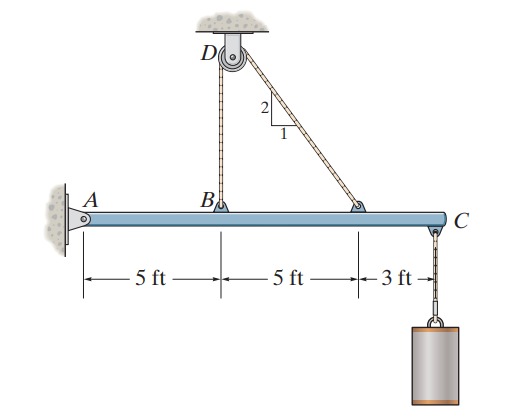

*5–16. Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb.
*5–16. Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb.

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
8 months 1 Answer 5 views Enlightened
