Three charges of equal magnitude q reside at the corners of an equilateral triangle of side length a (Figure 5). a.) Find the magnitude and direction of the electric field at point P, midway between the negative charges, in terms ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
3 months 1 Answer 7 views Beginner

Report
Question
4. Bar ABC shown in Figure 4 is made from plastic having modulus of elasticity, E = 4.0 GPa. The bar consists of two segments, AB and BC. The diameter of segments AB and BC are d1 = 100 mm and d2 = 60 mm, respectively. A longitudinal hole of diameter d is drilled through segment AB for one half of its length (250 mm). If the shortening (contraction) of bar ABC is limited to 8.0 mm, determine; i. Draw the free – body diagram (F.B.DO and determine the deformation of segment BC. (4 marks) ii. Calculate the maximum allowable diameter dmax of the hole. (6 marks)
4. Bar ABC shown in Figure 4 is made from plastic having modulus of elasticity, E = 4.0 GPa. The bar consists of two segments, AB and BC. The diameter of segments AB and BC are d1 = 100 mm ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
7 months 1 Answer 9 views Beginner

Report
Question
4. Bar ABC shown in Figure 4 is made from plastic having modulus of elasticity, E = 4.0 GPa. The bar consists of two segments, AB and BC. The diameter of segments AB and BC are d1 = 100 mm and d2 = 60 mm, respectively. A longitudinal hole of diameter d is drilled through segment AB for one half of its length (250 mm). If the shortening (contraction) of bar ABC is limited to 8.0 mm, determine; i. Draw the free – body diagram (F.B.DO and determine the deformation of segment BC. (4 marks) ii. Calculate the maximum allowable diameter dmax of the hole. (6 marks)
4. Bar ABC shown in Figure 4 is made from plastic having modulus of elasticity, E = 4.0 GPa. The bar consists of two segments, AB and BC. The diameter of segments AB and BC are d1 = 100 mm ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
0
7 months 0 Answers 5 views Beginner

Report
Question

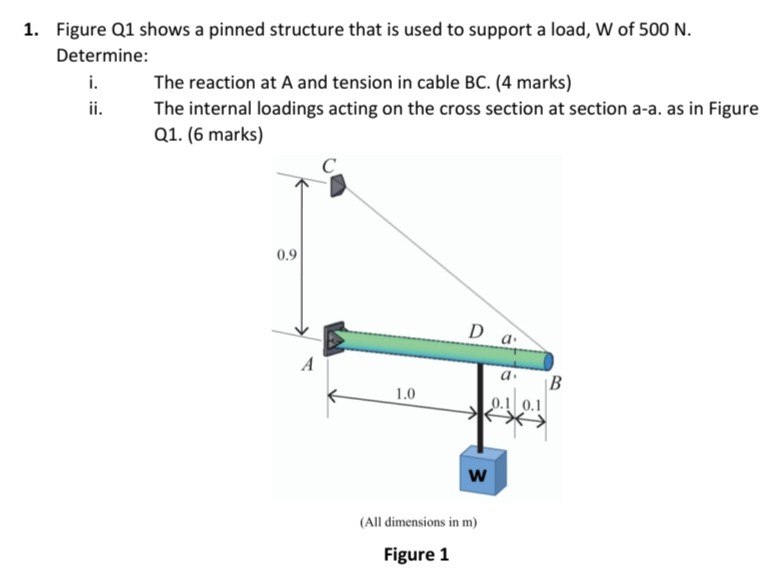

1. Figure Q1 shows a pinned structure that is used to support a load, W of 500 N. Determine: i. The reaction at A and tension in cable BC. (4 marks) ii. The internal loadings acting on the cross section at section a-a. as in Figure Q1. (6 marks)
1. Figure Q1 shows a pinned structure that is used to support a load, W of 500 N. Determine: i. The reaction at A and tension in cable BC. (4 marks) ii. The internal loadings acting on the cross section at section a-a. ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
7 months 1 Answer 18 views Beginner

Report
Question

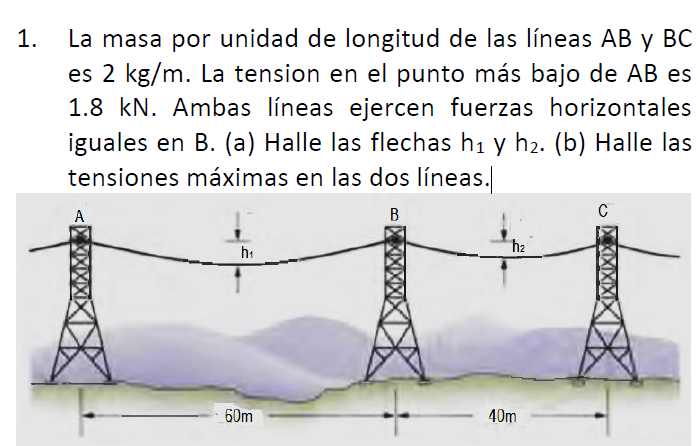

The mass per unit length of lines AB and BC is 2 kg/m. The tension at the lowest point of AB is 1.8 kN. Both lines exert equal horizontal forces at B. (a) Find the arrows h1 and h2. (b) Find the maximum tensions in the two lines.
The mass per unit length of lines AB and BC is 2 kg/m. The tension at the lowest point of AB is 1.8 kN. Both lines exert equal horizontal forces at B. (a) Find the arrows h1 and h2. (b) ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
7 months 1 Answer 11 views Beginner

Report
Question

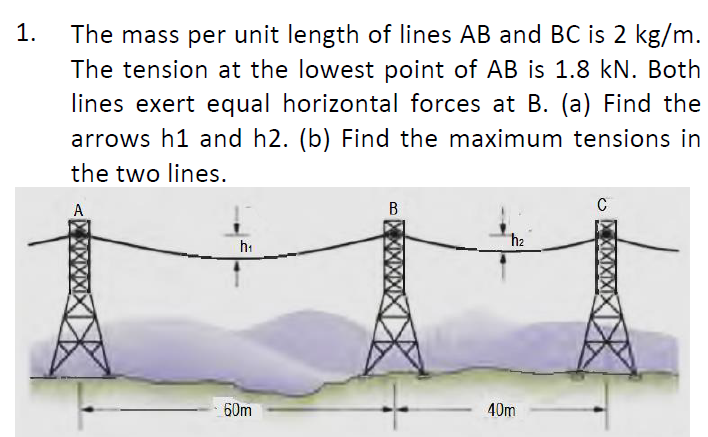

The mass per unit length of lines AB and BC is 2 kg/m. The tension at the lowest point of AB is 1.8 kN. Both lines exert equal horizontal forces at B. (a) Find the arrows h1 and h2. (b) Find the maximum tensions in the two lines.
The mass per unit length of lines AB and BC is 2 kg/m. The tension at the lowest point of AB is 1.8 kN. Both lines exert equal horizontal forces at B. (a) Find the arrows h1 and h2. (b) ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
0
7 months 0 Answers 4 views Beginner

Report
Question

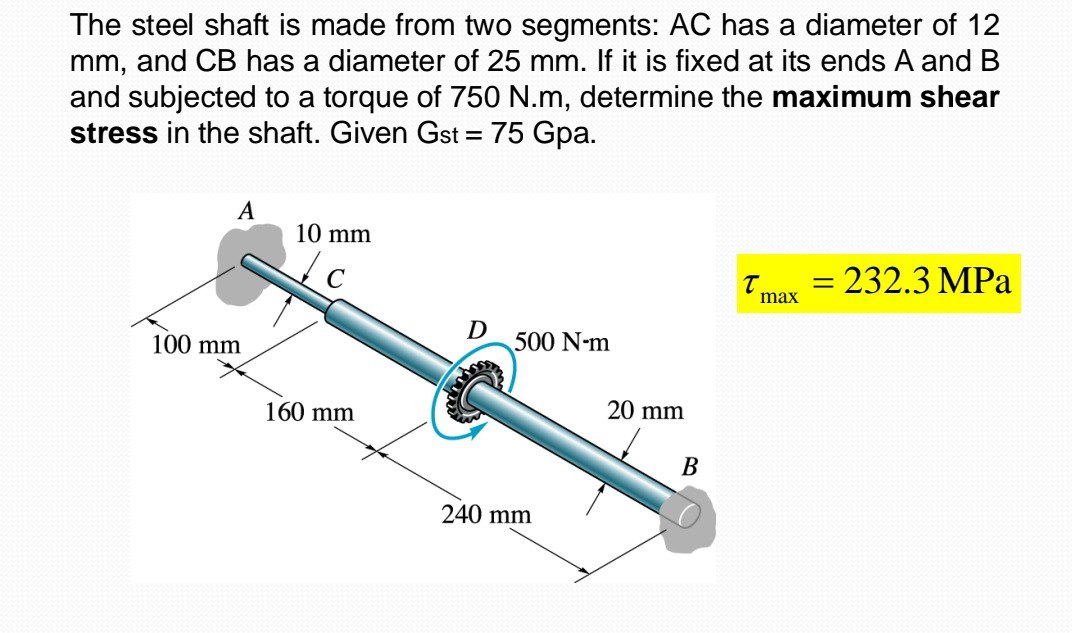

The steel shaft is made from two segments: AC has a diameter of 12 mm, and CB has a diameter of 25 mm. If it is fixed at its ends A and B and subjected to a torque of 750 N.m, determine the maximum shear stress in the shaft. Given Gst = 75 Gpa.
The steel shaft is made from two segments: AC has a diameter of 12 mm, and CB has a diameter of 25 mm. If it is fixed at its ends A and B and subjected to a torque of 750 ...

Please briefly explain why you feel this question should be reported.

Report
Cancel
in progress 0
7 months 1 Answer 8 views Beginner
